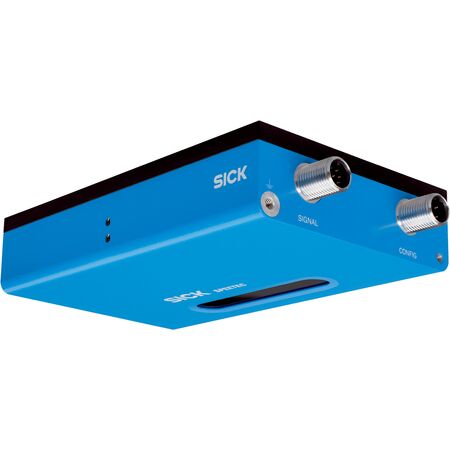

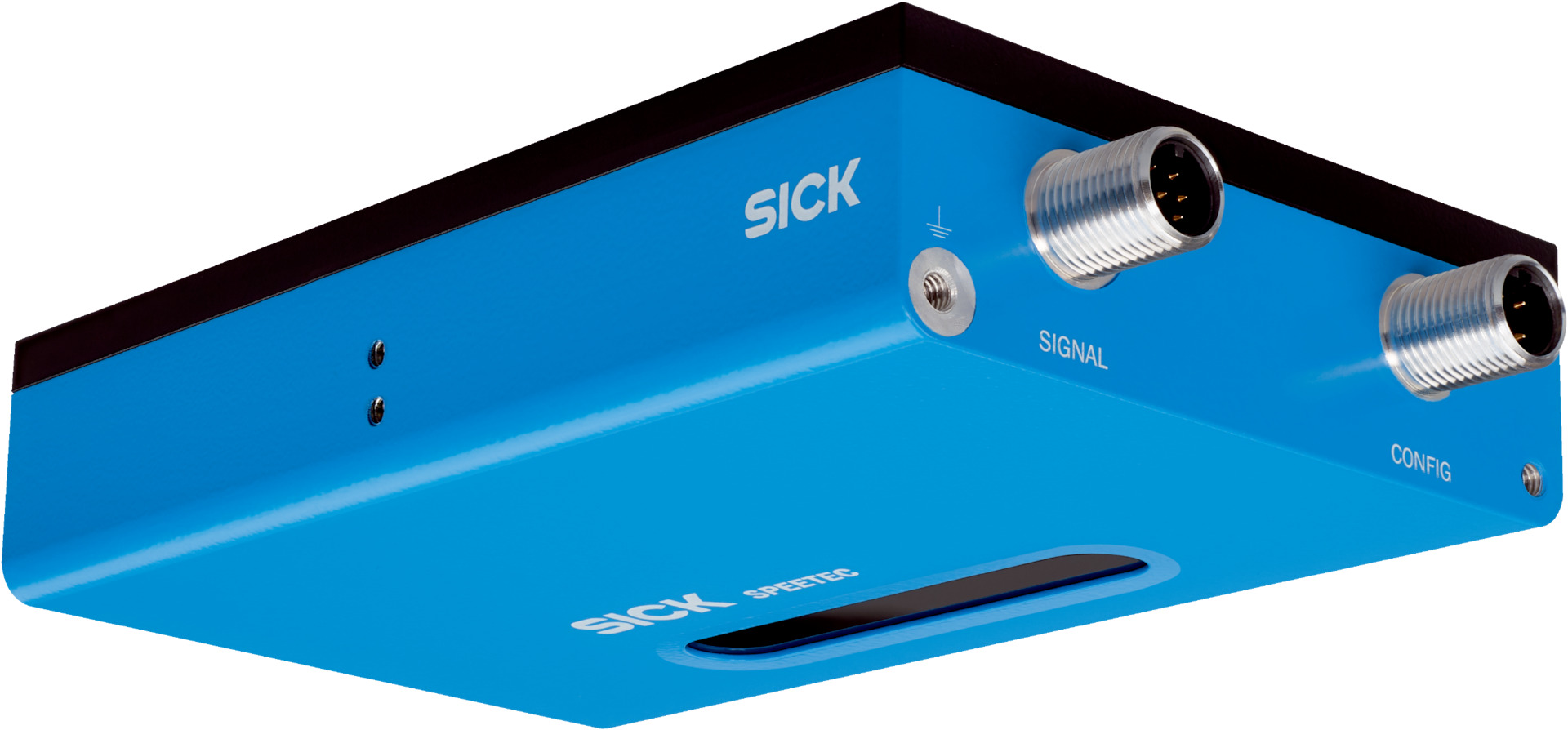

Non-Contact Velocity Sensor NCV50B | Class 1 Laser Technology | IP65/IP67 Protection | by SICK
The Non-Contact Velocity Sensor NCV50B is designed for precise motion monitoring, utilizing Class 1 laser technology for non-contact measurement. With a measurement accuracy of 0.1% and robust IP65/IP67 protection, it's perfect for industrial applications and retrofit installations. This sensor ensures low power consumption and high reliability, making it an ideal choice for various surfaces and objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: 2 continuous beam lasers, 850 nm wavelength
- Laser class: 1 (IEC 60825-1:2014)
- Measurement field size: 2 mm x 3 mm at 50 mm distance
- Nominal measuring distance: 50 mm
- Static mounting tolerance: ±5 mm
- Measuring increment: 2000 µm/pulse
- Speed measuring range: 0 to 10 m/s
- Permissible acceleration: ≤ 30 m/s²
- Measurement accuracy: 0.1%
- Repeatability: 0.05%
- Internal sampling rate: 330 µs
- Latency: 2.9 ms
- Supply voltage: 12 V to 30 V
- Communication interface: TTL / RS-422
- Output frequency: ≤ 625 kHz
- Connection type: Male connector, M12, 8-pin, A-coded
- Power consumption: < 8 W
- Load current: ≤ 30 mA per channel
- Protection class: III according to DIN EN 61140
- Enclosure rating: IP65/IP67
- Operating temperature range: 0 °C to +45 °C
- Storage temperature range: -32 °C to +60 °C
- Resistance to shocks: 30 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 32.5mm x 95mm x 140mm
- Weight: 0.4 kg
Key Features
- Non-contact measurement using Class 1 laser technology
- High measurement accuracy with large mounting tolerances
- Bidirectional movement detection with start/stop capability
- Robust aluminum housing with IP65/IP67 protection rating
- Low power consumption under 8W with reverse polarity protection
- Short-circuit resistant outputs and fast initialization time
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, electrical connection, and compliance with safety standards.
Applications
- Motion monitoring on various surfaces and objects
- Retrofit installations requiring easy mounting
- End-customer applications with non-contact measurement needs
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending device lifespan
- Energy-efficient operation with low power consumption
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK NCV50B-11CC0102000 Non-Contact Velocity Sensor is available for immediate purchase, ideal for industrial motion monitoring and retrofit applications.
