Non-Contact Voltage Tester 24-1000V AC | CAT IV Safety Rating | LED Indicator & Audible Alert by Ideal Electrical
Ensure electrical safety with this non-contact voltage tester, detecting voltages from 24 to 1000V AC. Ideal for electricians and maintenance personnel, it features a CAT IV safety rating and an LED indicator for easy voltage detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

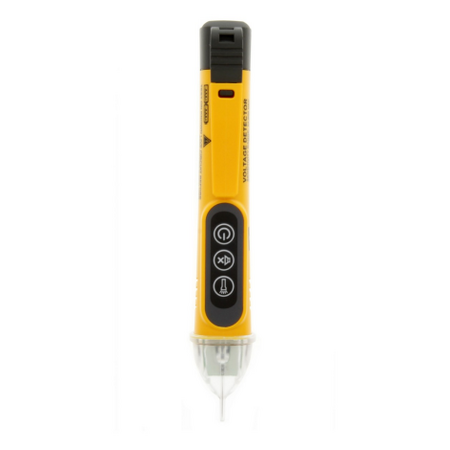

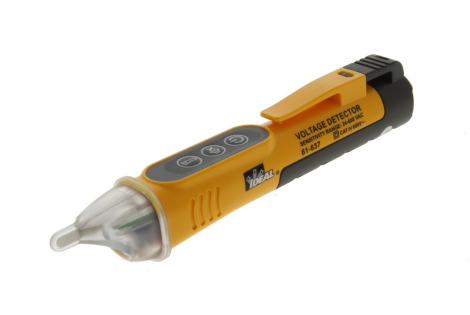

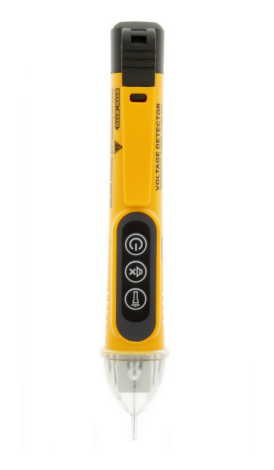

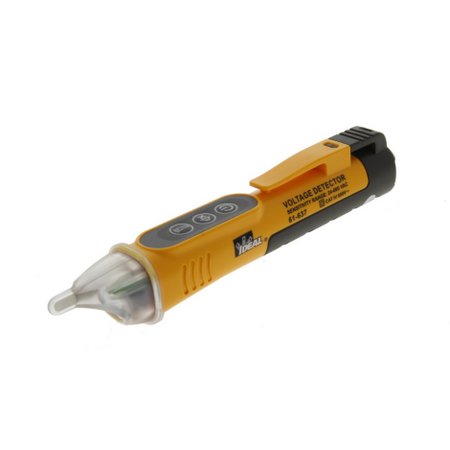

Product Name/Title: Non-Contact Voltage Tester Single Range 24-1000V AC
Brand: Ideal Electrical
SKU: IDL61-637
Alternatively Known As: Non-Contact Voltage Detector, Voltage Tester Pen, NCVT Voltage Tester, Electrical Voltage Detector
Technical Specifications
- Voltage detection range: 24 - 1000V AC
- Safety rating: CAT IV 1000V AC
- Power source: 2 x 1.5V AAA batteries
- Audible beep frequency increases with voltage level
- LED tip indicator: green when powered on, red flashing when voltage detected
- Auto power off after 10 minutes
- Drop protection: 3.3 ft
- No dual LCD display, no audible continuity, no auto ranging, no data hold
- Dimensions (H x L x W): 180mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Non-contact voltage detection from 24 to 1000V AC
- CAT IV 1000V AC safety rating
- LED flashlight in the tip for illuminating work areas
- Audible notification with disable option for quiet environments
- Auto power off after 10 minutes of inactivity
- Low battery indication
- Lanyard tie-off point for convenience
- Powered by two 1.5V AAA batteries
Professional Installation Requirements
- No professional installation required; suitable for use by qualified electricians and trained personnel for safe voltage detection.
Applications
- Electrical safety testing in residential, commercial, and industrial environments
- Detecting live voltage in electrical circuits without direct contact
- Use by electricians, maintenance personnel, and safety inspectors
Standards & Compliance
- Complies with AS/NZS 3017 – Electrical Installation Safety Standards
Environmental Benefits
- Non-contact testing reduces risk of damage to electrical components and wiring
- Battery-powered with low power consumption for extended use
- Durable design reduces waste by extending product lifespan
Warranty Information
Limited 2 year warranty.
Available Now
The Ideal Electrical Non-Contact Voltage Tester Single Range 24-1000V AC is available now for immediate purchase. Ideal for electrical safety testing in residential, commercial, and industrial applications.
