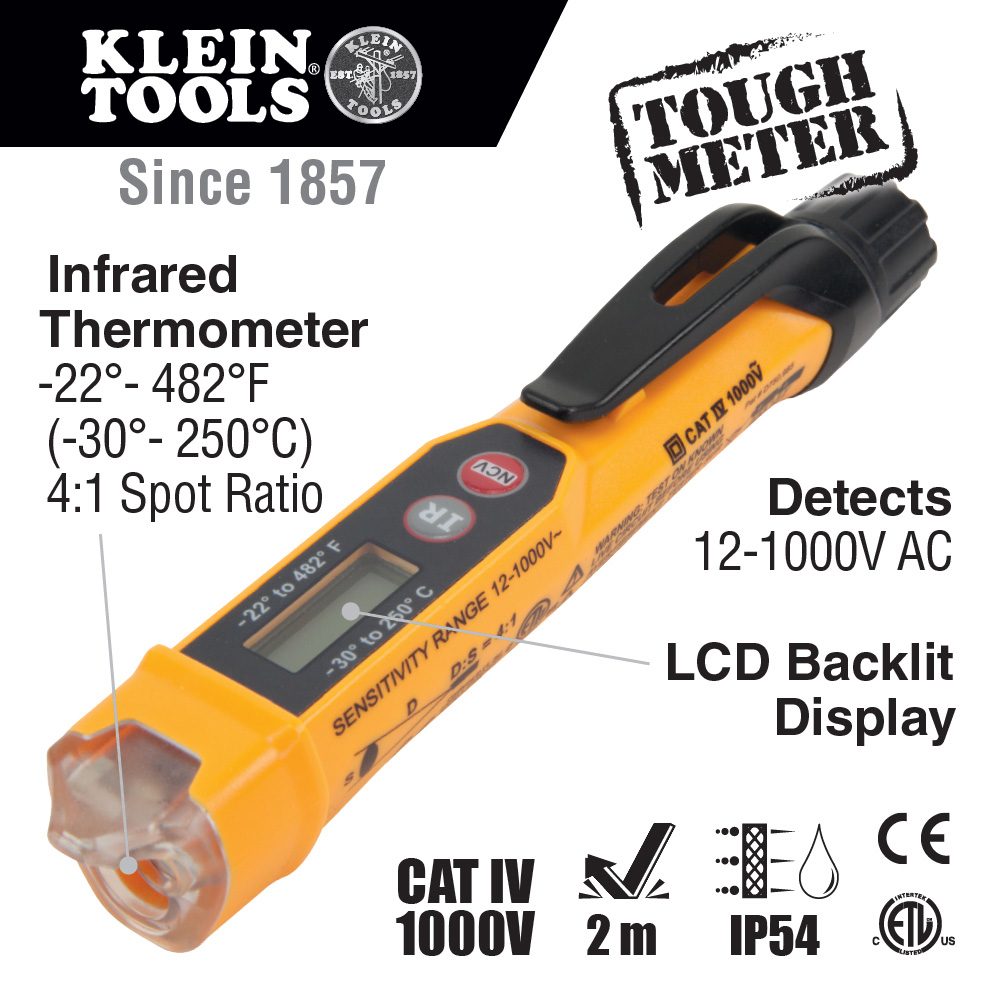

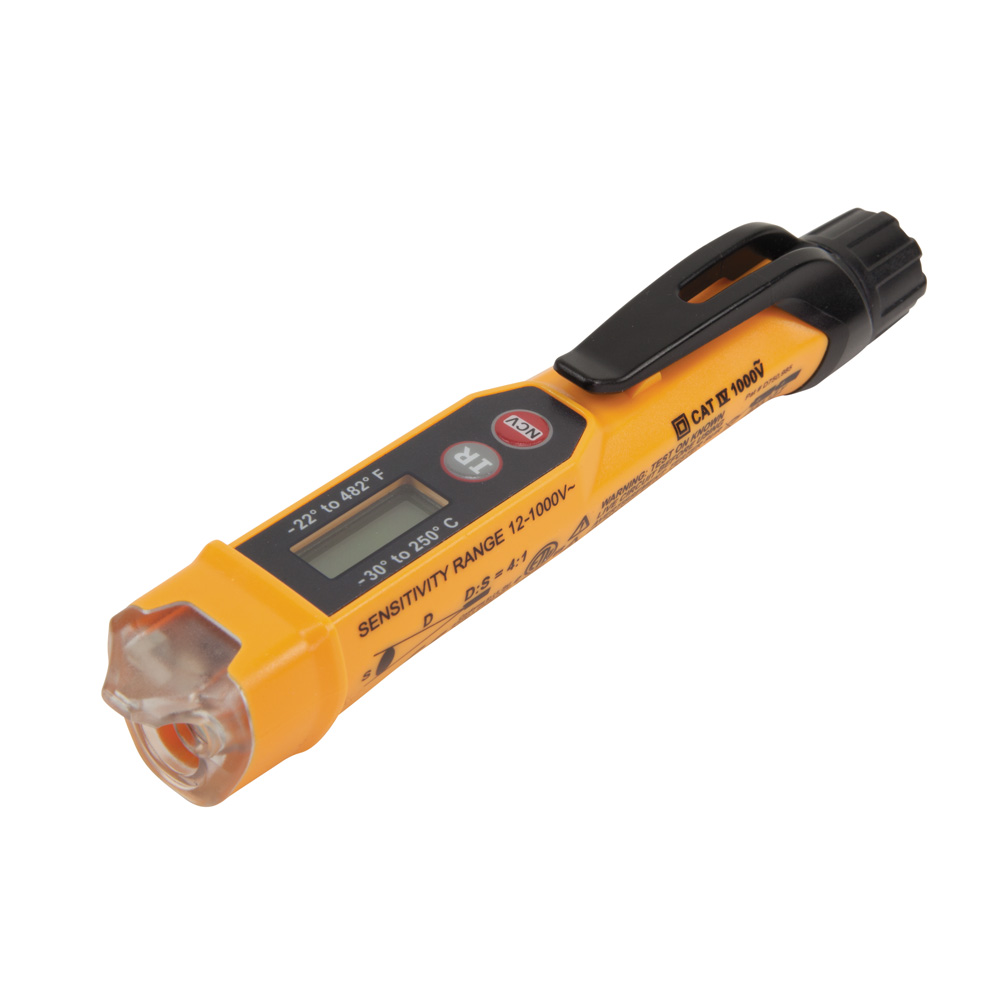

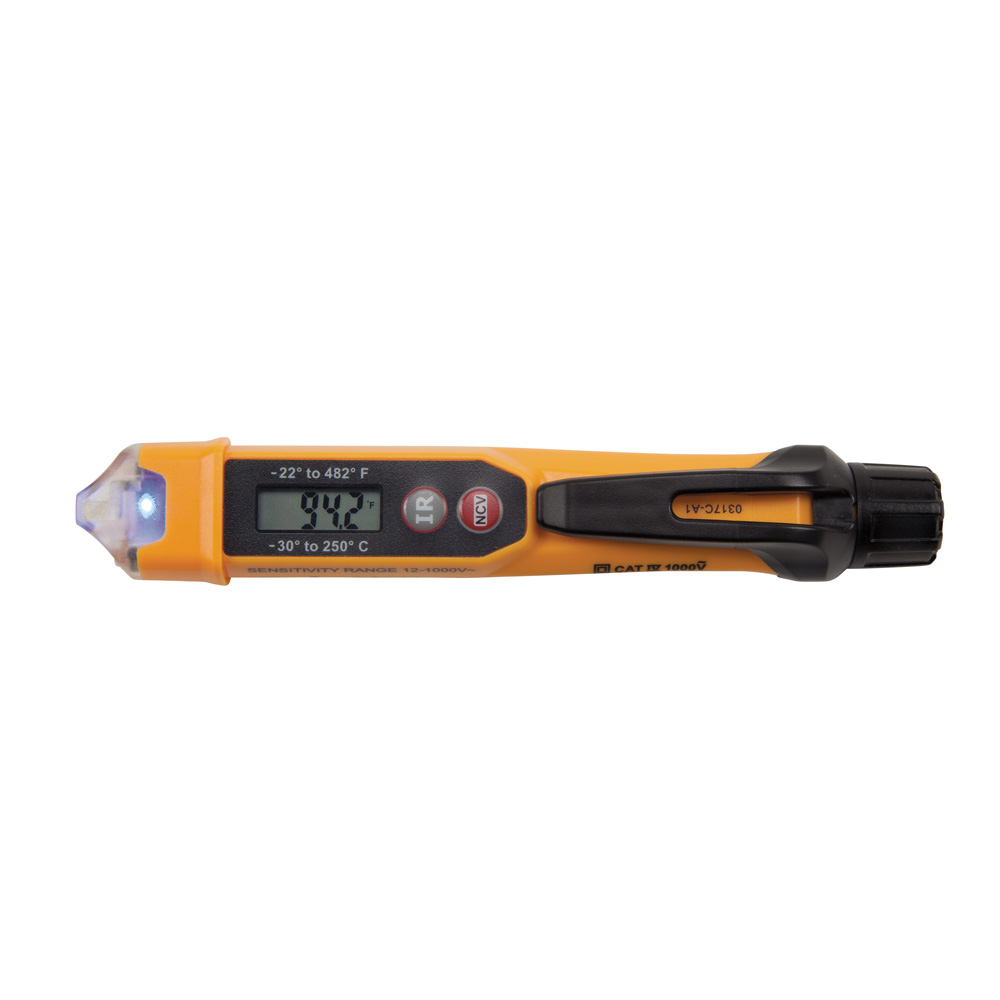

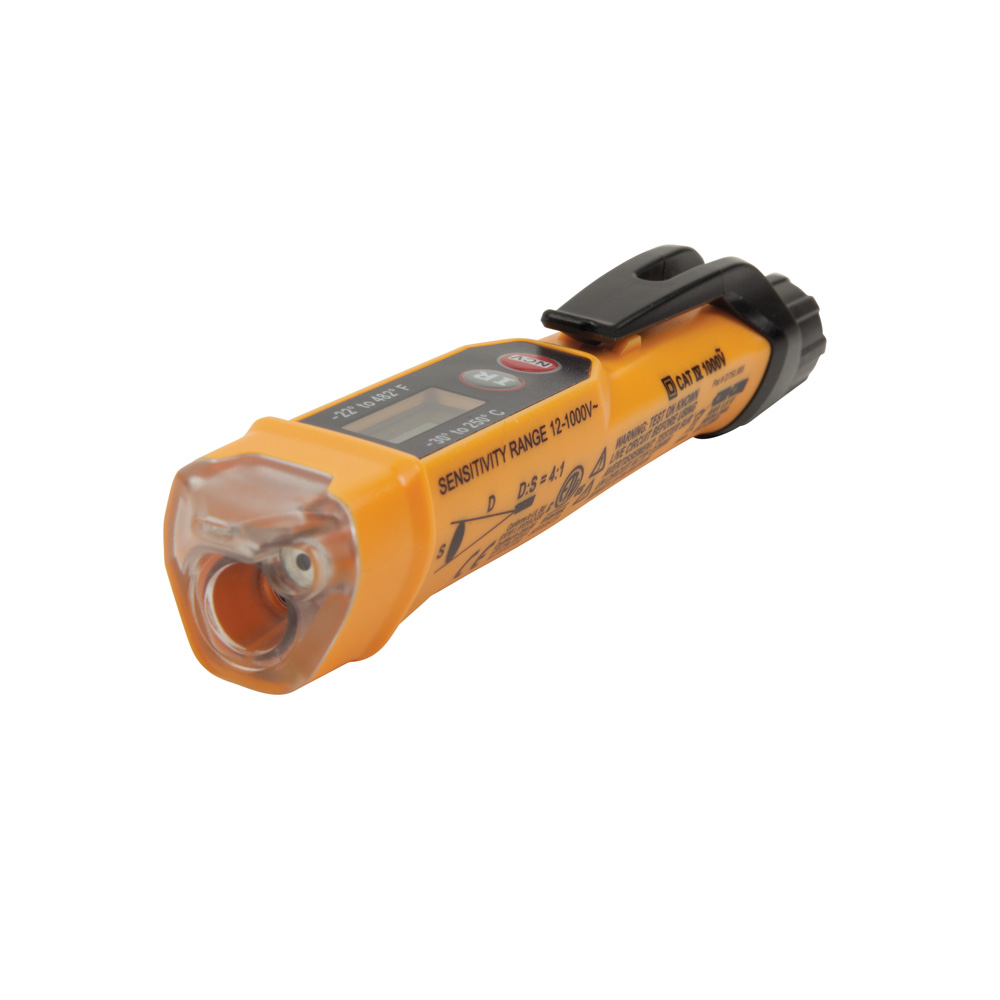

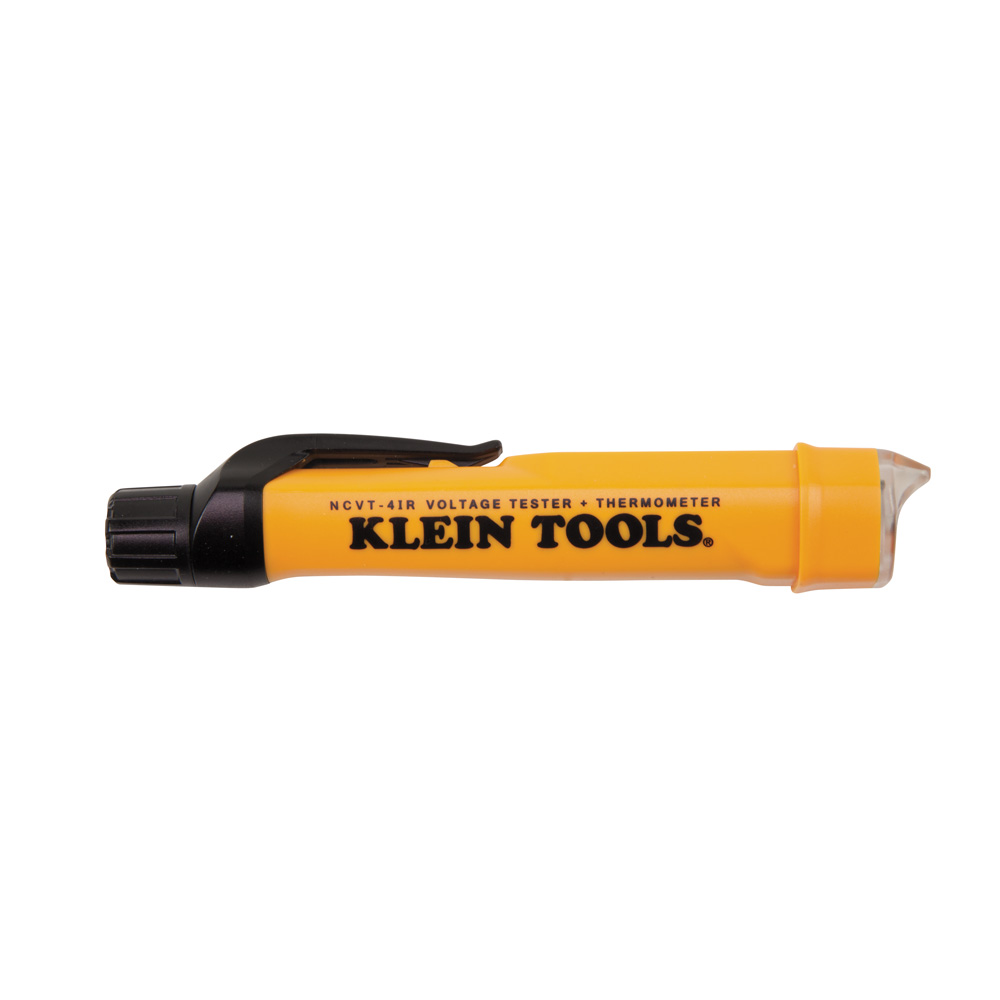

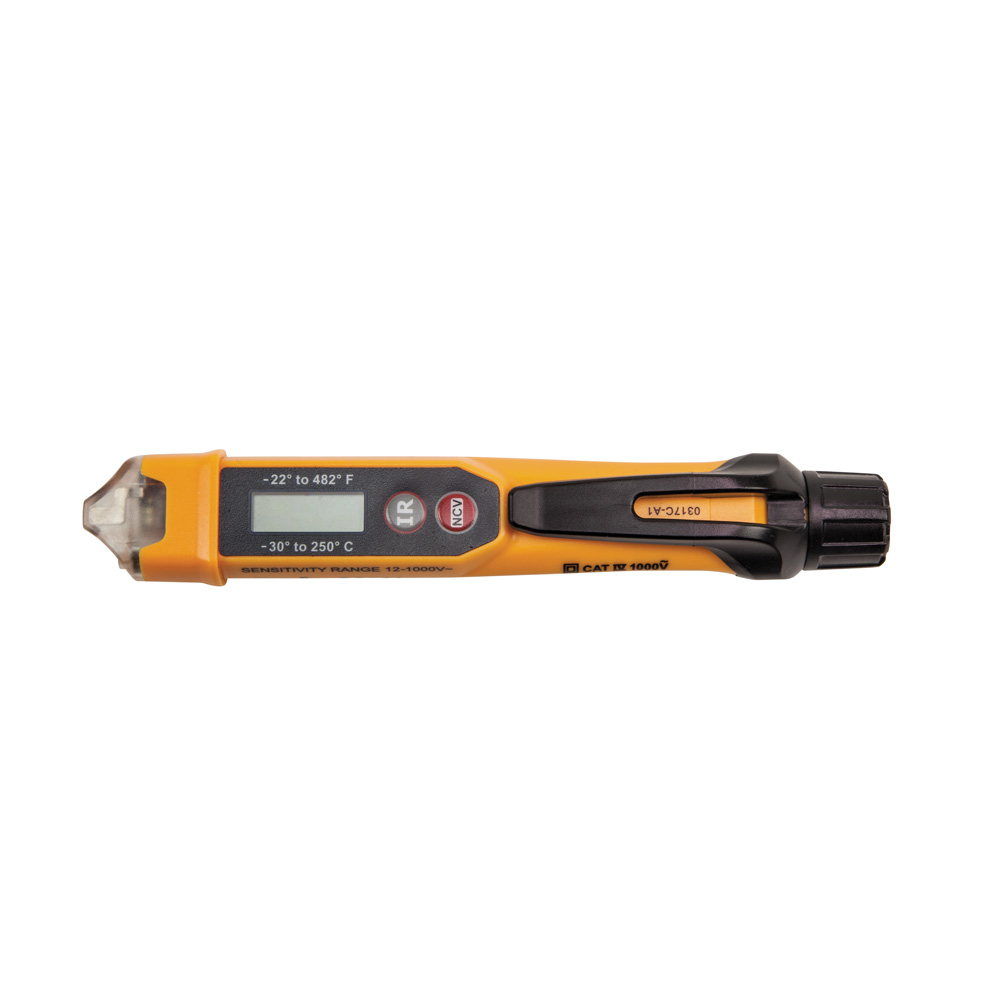

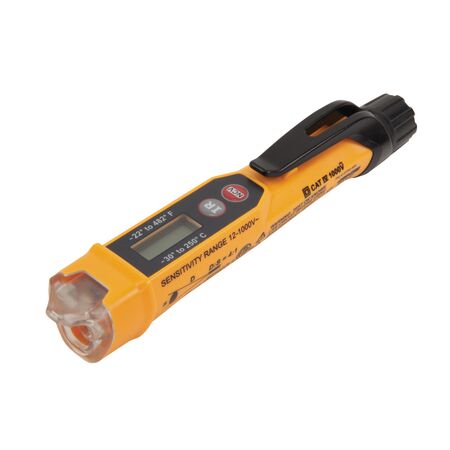

Non-Contact Voltage Tester Pen | 12-1000V AC | Infrared Thermometer | IP54 Rated | by Wattmaster
The Non-Contact Voltage Tester Pen is designed for safe voltage detection from 12 to 1000V AC, making it ideal for HVAC professionals and electrical testing. With an integrated infrared thermometer ranging from -22° to 482° F, this tool features a backlit LCD display for easy reading and an IP54 rating for durability. Its compact design and lightweight build ensure easy portability, while the auto power-off feature conserves battery life for extended use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Non-Contact Voltage Tester Pen | 12-1000V AC | Infrared Thermometer | IP54 Rated | by Wattmaster
Brand: Wattmaster
SKU: A-NCVT-4IR
Alternatively Known As: Non-Contact Voltage Detector Pen, Voltage Tester with IR Thermometer, AC Voltage Tester Pen, HVAC Voltage Tester
Technical Specifications
- Voltage detection range: 12 to 1000 V AC
- Frequency range: 50-500 Hz
- Infrared thermometer range: -22° to 482° F (-30° to 250° C)
- Distance-to-spot ratio: 4:1
- Display: Backlit LCD with 0.1-degree resolution
- Battery type: 2 x AAA
- Battery life: Average 134 hours; Continuous IR 64 hours
- Ingress Protection: IP54
- Safety rating: CAT IV 1000V
- Drop protection: 2 meters
- Dimensions (H x L x W): 30mm x 159mm x 32mm
- Weight: 0.1 kg
Key Features
- Non-contact AC voltage detection from 12 to 1000 V with visual and audible indicators
- Infrared thermometer with 4:1 distance-to-spot ratio and selectable °F/°C from -22° to 482° F (-30° to 250° C)
- Backlit LCD display with 0.1-degree resolution
- Convenient laser pointer for targeting temperature measurement area
- Auto power-off to conserve battery life
- Screw-thread battery cap with O-ring for dust and water ingress protection
- Lightweight and compact with pocket clip for easy storage
- High-pitched continuous beeping sound for voltage detection
- Drop protection up to 2 meters
- Ingress Protection rating IP54
- CAT IV 1000V safety standard
Professional Installation Requirements
- No professional installation required; however, users should follow all safety instructions and use the device as per manufacturer guidelines.
Applications

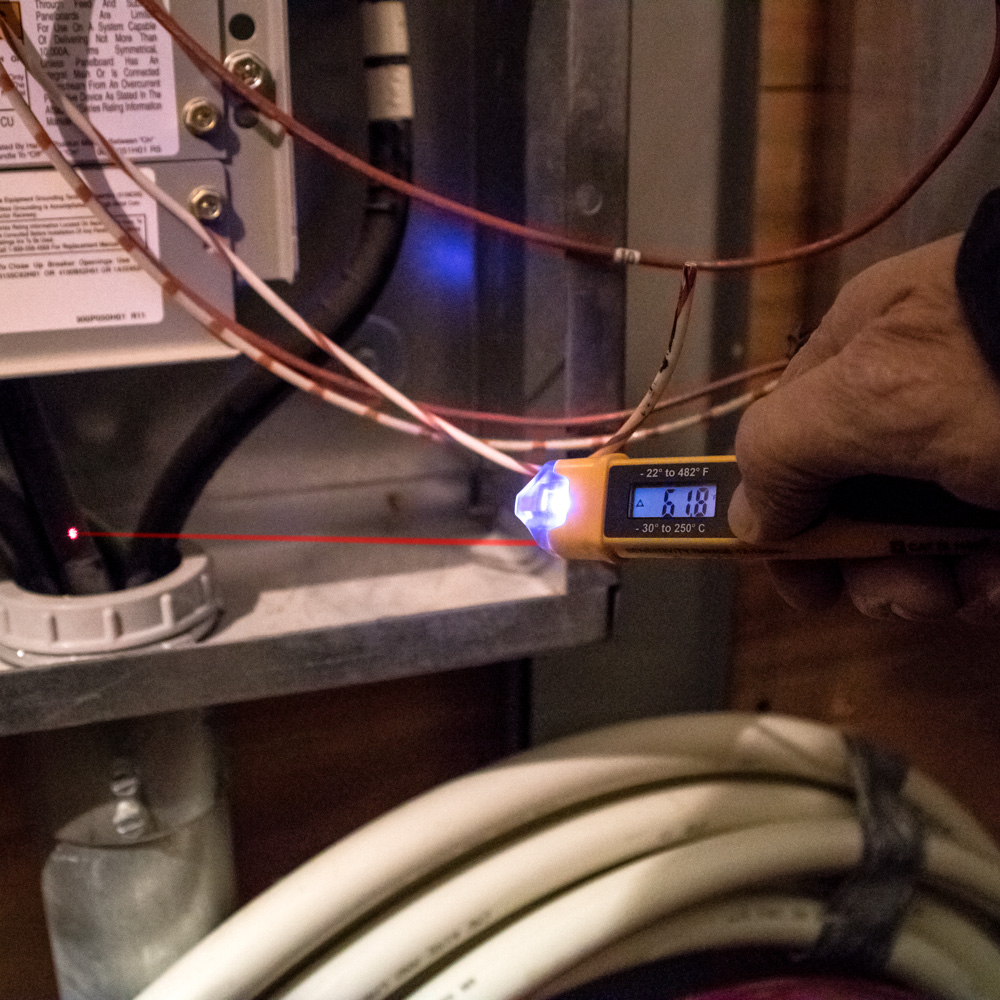

- HVAC professionals for voltage detection and temperature measurement
- Electrical testing in cables, cords, circuit breakers, switches, outlets, and wires
- Security, entertainment, communications, environmental control, and irrigation system voltage detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Non-contact testing reduces risk of damage and waste from faulty equipment
- Long battery life reduces battery waste
- Durable design minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Non-Contact Voltage Tester Pen NCVT-4IR is available now for immediate purchase. Ideal for HVAC professionals and electrical testing applications.
