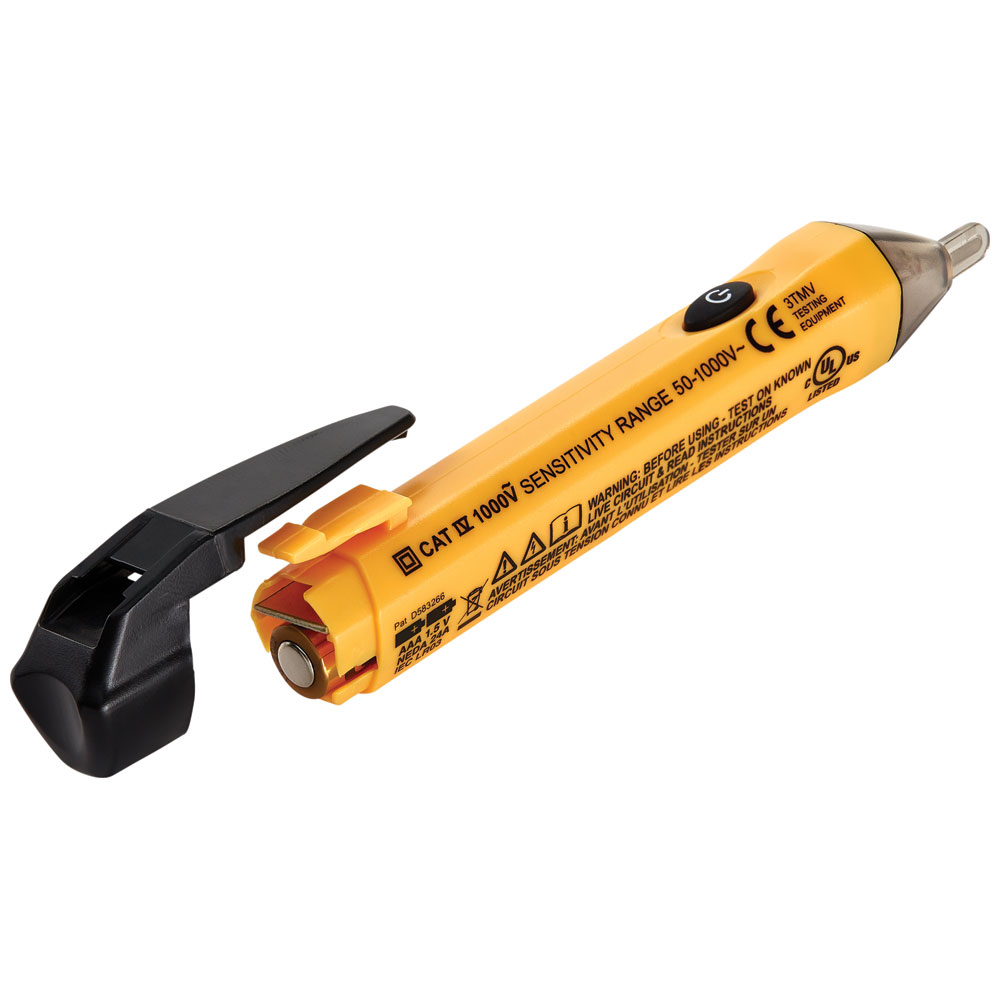

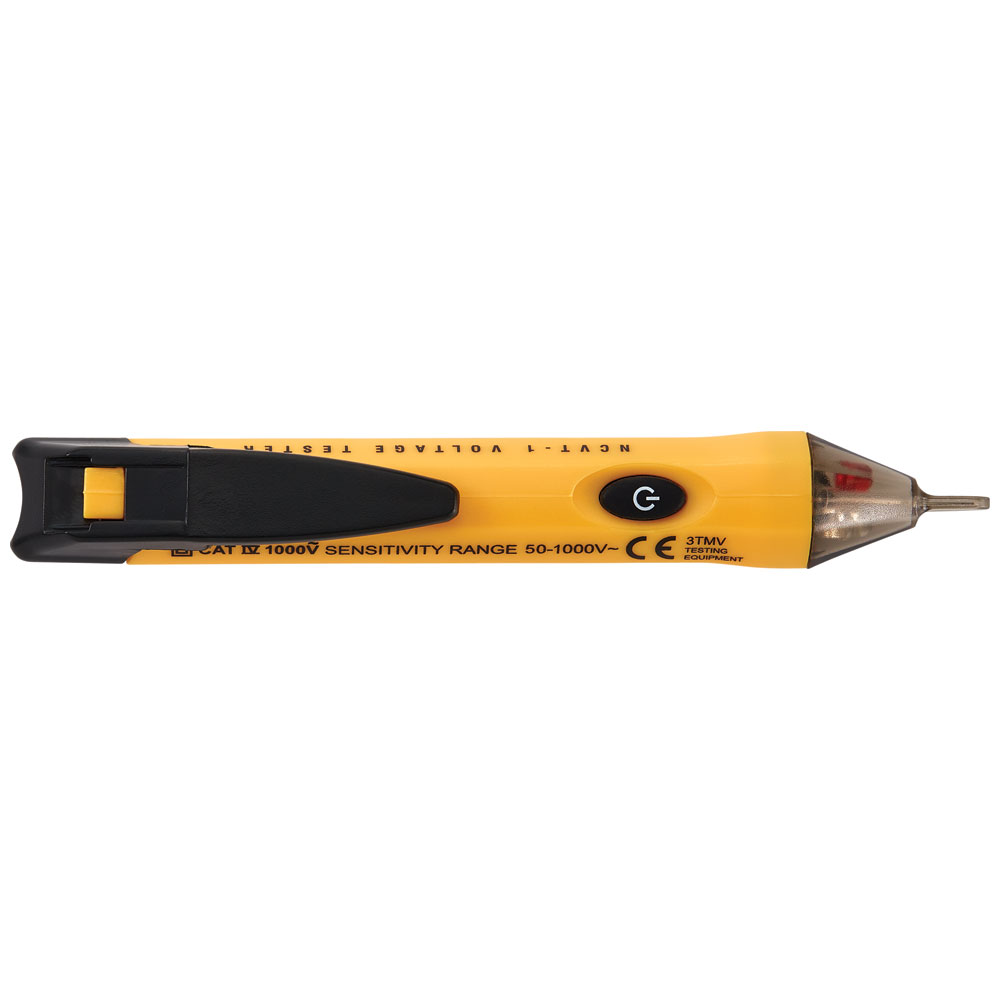

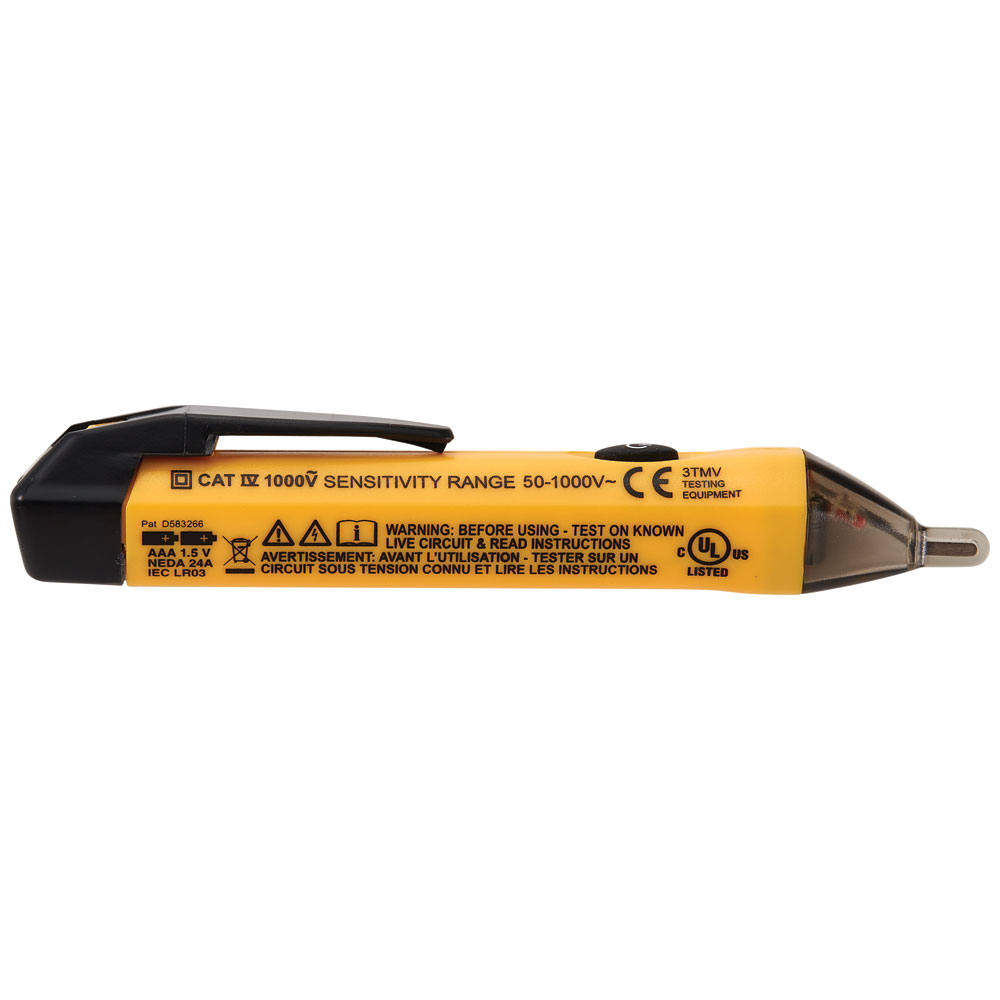

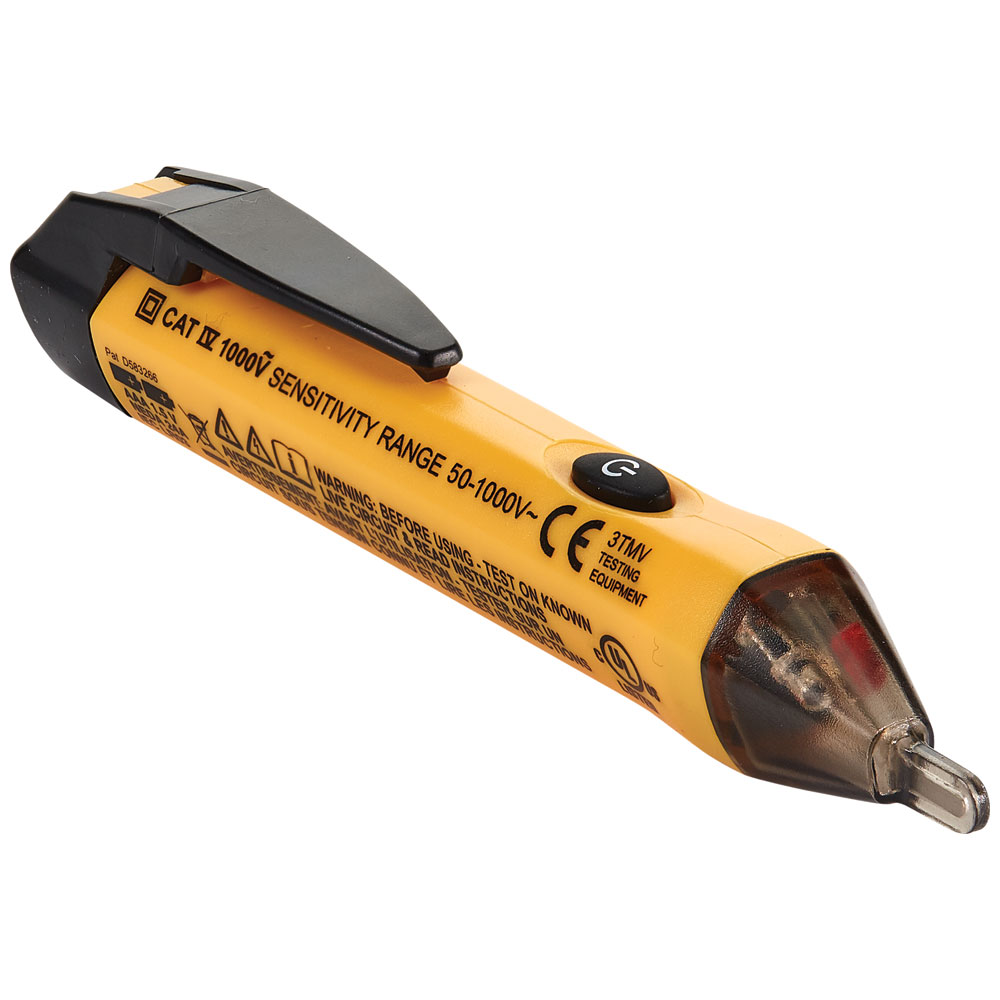

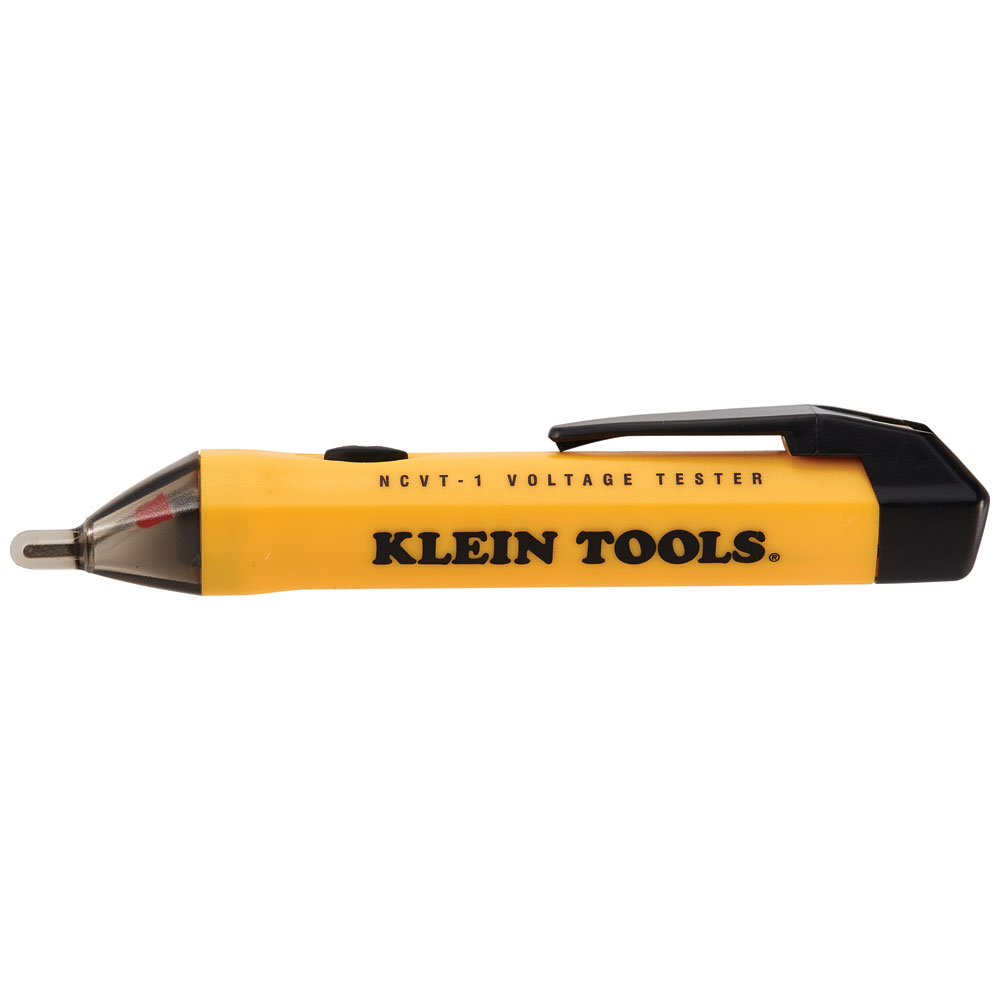

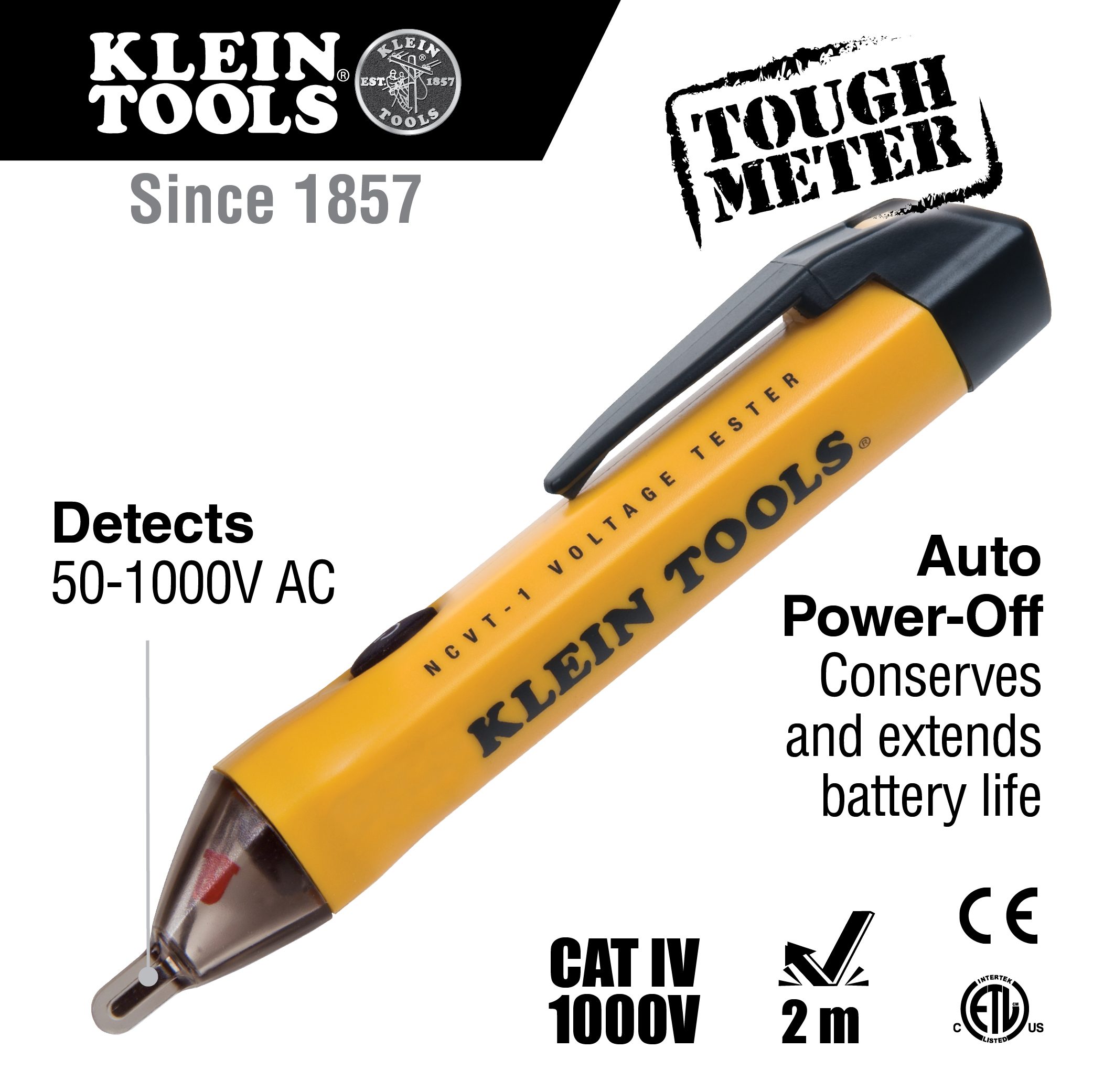

Non-Contact Voltage Tester Pen | 50 to 1000 Volts | CAT IV 1000V Safety | Bright LED Indicators | by Wattmaster
The Non-Contact Voltage Tester Pen is designed for safe voltage detection from 50 to 1000 volts AC, making it ideal for electricians and DIY enthusiasts. With a CAT IV 1000V safety rating and bright LED indicators, this tester ensures reliable performance. Its compact design and auto power-off feature enhance usability and battery life, allowing for efficient testing in various applications, including cables, circuit breakers, and outlets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage Range: 50 to 1000 Volts AC
- Frequency Range: 50-500 Hz
- Safety Rating: CAT IV 1000V
- Pollution Degree: 2
- Drop Protection: 6.6 feet (2 meters)
- Power Source: 2 x AAA (1.5V) batteries
- Material: Polycarbonate plastic-resin
- Indicators: Bright green LED (power on), bright red LED and audible tone (voltage detected)
- Dimensions (H x L x W): 25mm x 140mm x 18mm
- Weight: 0.1 kg
Key Features
- Non-contact voltage detection from 50 to 1000 Volts AC

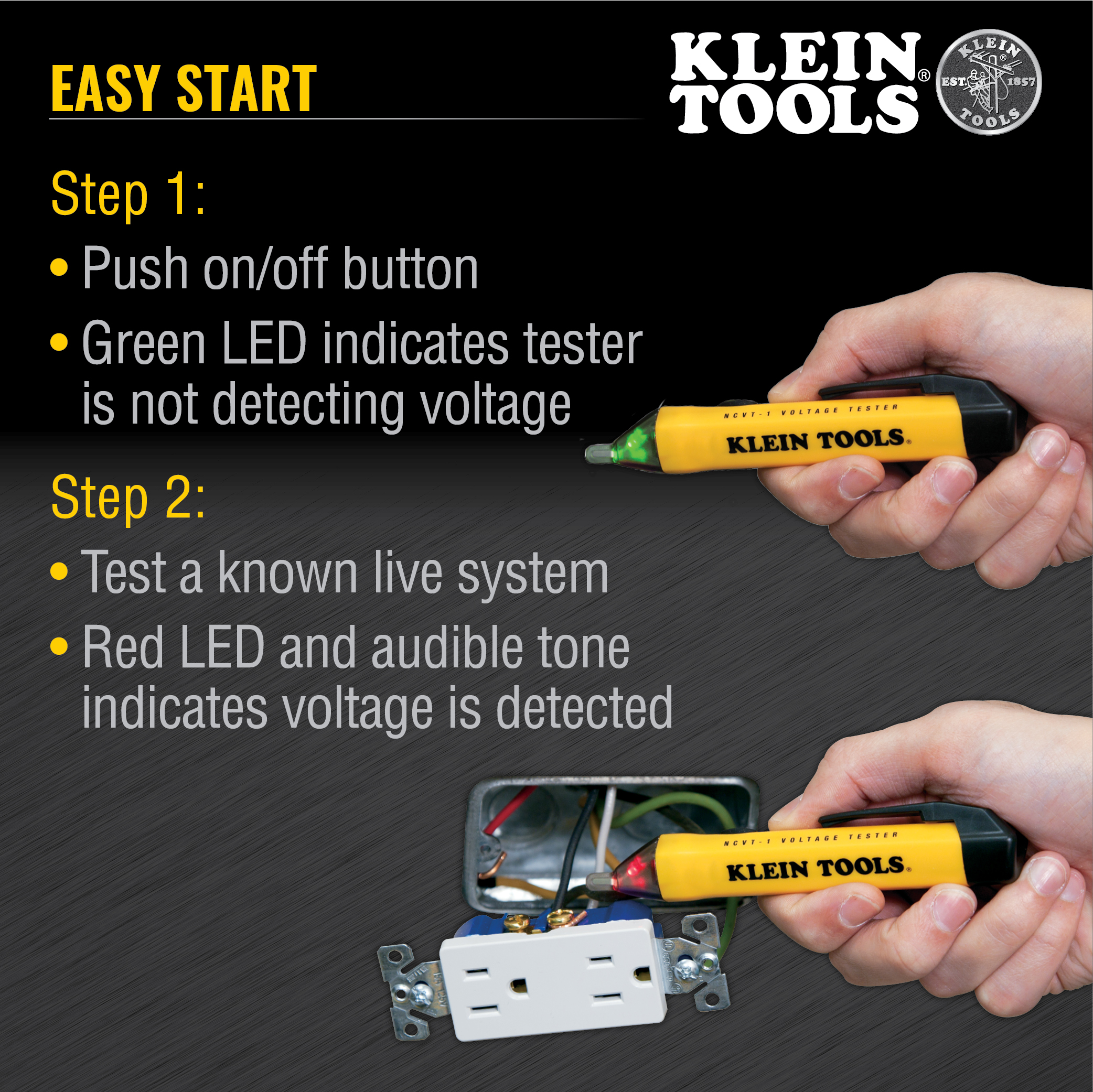

- Bright green LED indicates tester is operational and functions as a work light
- Bright red LED and warning tone when voltage is detected
- Discreet digitally controlled ON/OFF power button
- Auto power-off feature to conserve battery life
- Microprocessor-controlled low-battery indicator and automatic shut-down
- CAT IV 1000-Volt safety rating for expanded operation and protection
- Durable polycarbonate plastic-resin construction
- Lightweight compact design with pocket clip
- Includes 2 x AAA batteries and owner's manual
- 6.6-foot (2 m) drop protection
Professional Installation Requirements
- No professional installation required; however, users should follow all safety instructions and warnings provided in the manual.
Applications

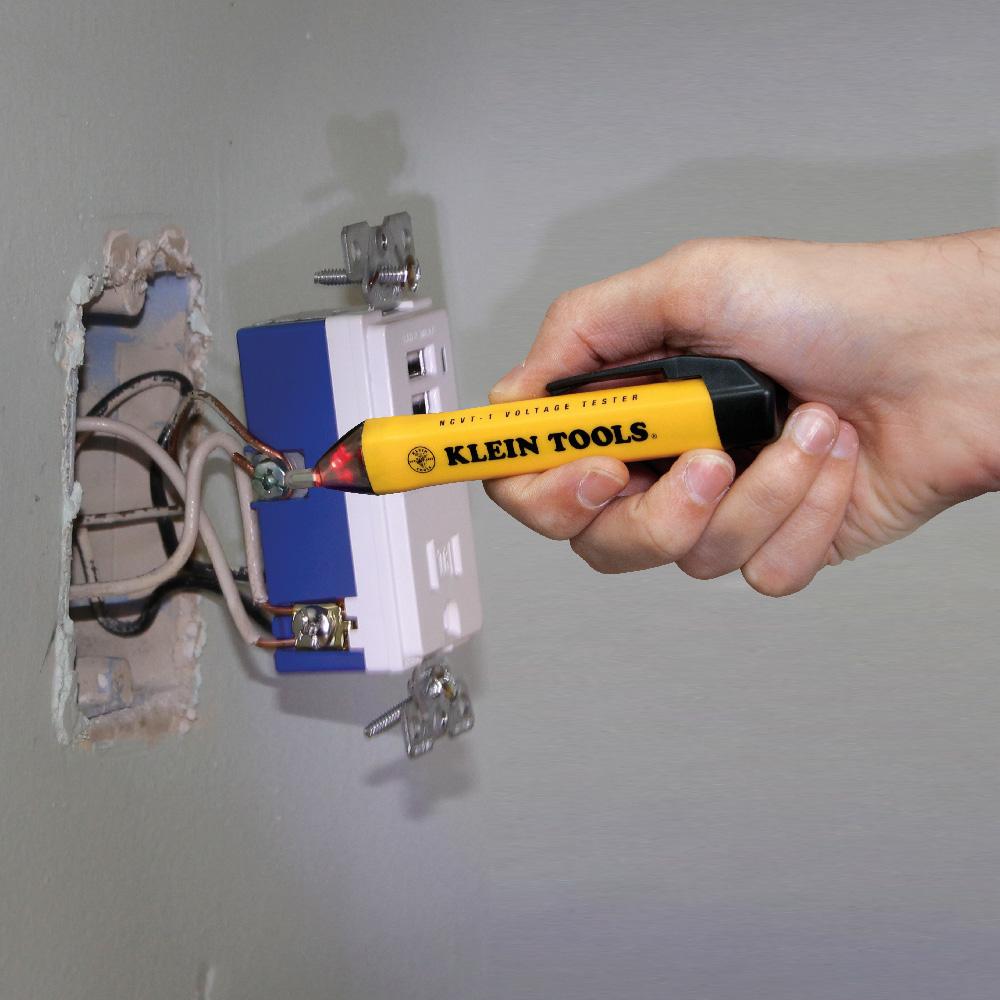

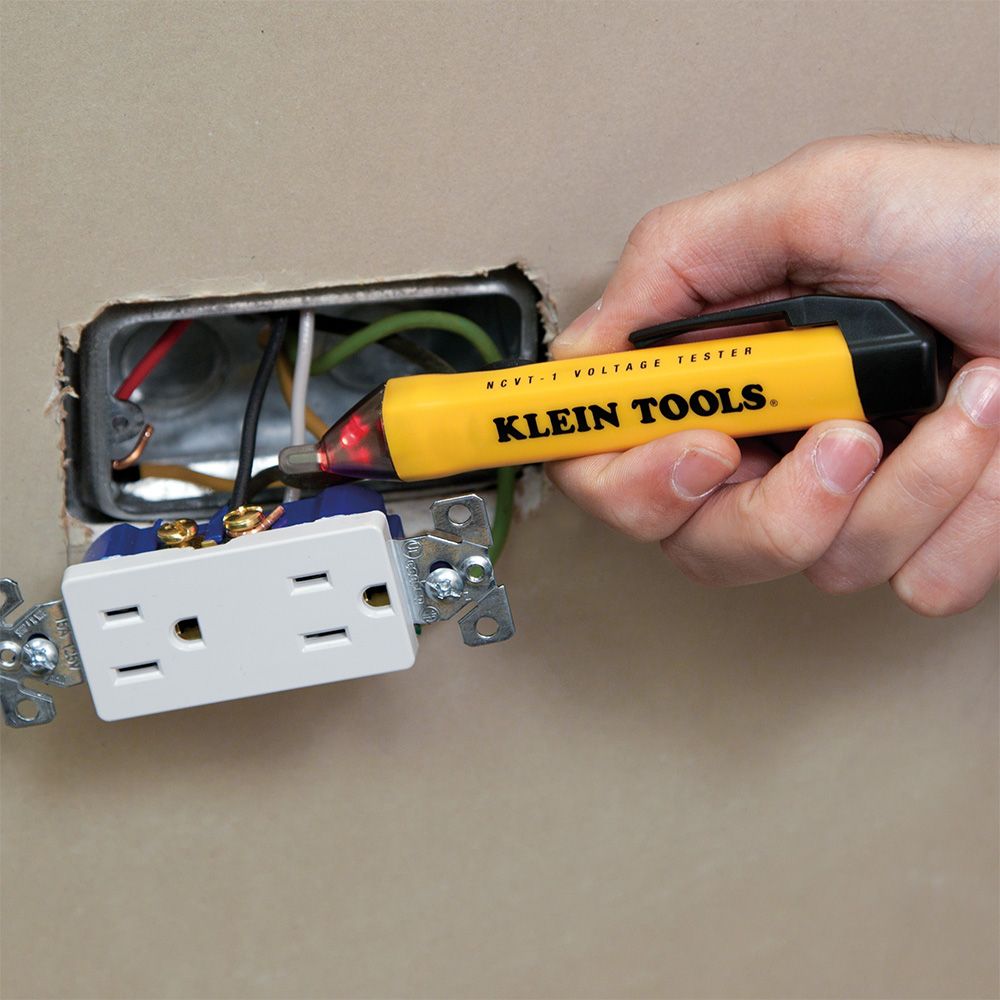

- Non-contact detection and testing of AC voltage in cables, cords, circuit breakers, lighting fixtures, switches, and non-tamper-resistant outlets
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Non-contact testing reduces risk of damage to electrical components, promoting longer equipment life
- Auto power-off feature conserves battery life, reducing battery waste
Warranty Information
Standard manufacturer warranty applies; refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Non-Contact Voltage Tester Pen is available now for immediate purchase. Ideal for electricians, technicians, and DIY enthusiasts for safe voltage detection.
