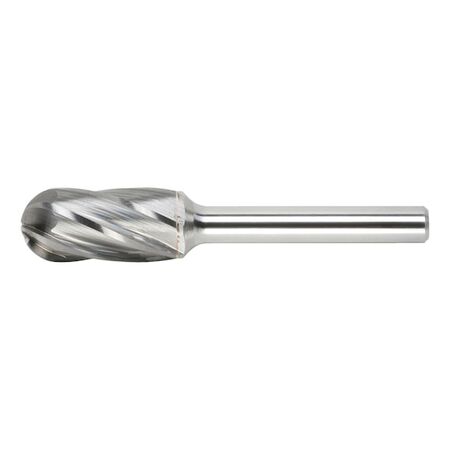

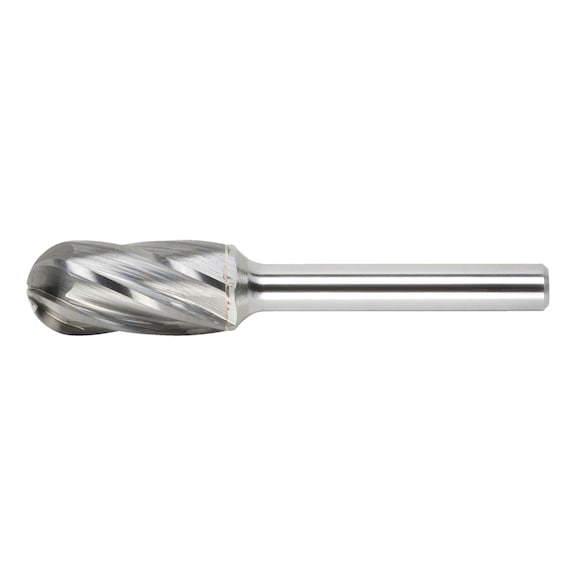

Non-Ferrous Metal Milling Cutter | 12mm Head Diameter | 25mm Cutting Edge | Premium ZEBRA Quality | by Wurth
The Non-Ferrous Metal Milling Cutter is expertly designed for processing soft non-ferrous metals like aluminum and brass. With a 12mm head diameter and 25mm cutting edge length, this premium ZEBRA quality tool ensures excellent cutting efficiency and surface quality. Ideal for professionals in metalworking and manufacturing, it offers durability and precision for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Form: Cylindrical shape
- Head diameter x cutting edge length: 12 x 25 mm
- Length: 65 mm
- Shank diameter: 6 mm
- Material to be processed: Non-ferrous metal
- Quality: ZEBRA-Premium
- Teeth type: ALU
- Cutting material: Carbide
- Surface: Plain
- Service life (points system): 3 of 4 points
- Cutting efficiency (point system): 3 of 4 points
- Surface quality/finish (points system): 3 of 4 points
- Versatility (points system): 2 of 4 points
- Guiding behaviour (point system): 3 of 4 points
- Shank style: Cylindrical
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Specialist tool designed for soft non-ferrous metals
- Cylindrical shape with 12 mm head diameter and 25 mm cutting edge length
- Made with premium ZEBRA quality carbide cutting material
- Plain surface finish
- Good service life, cutting efficiency, and surface quality
- Cylindrical shank style for easy handling
Professional Installation Requirements
- Use by trained professionals with appropriate machining equipment is recommended for safety and optimal performance.
Applications
- Processing soft non-ferrous metals such as aluminium and aluminium alloys with up to 10% silicon
- Suitable for copper, brass, and zinc
- Also effective for plastics and wood
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable carbide material extends tool life, reducing waste
- Efficient cutting reduces energy consumption during machining
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
The Wurth Specialist Milling Tool for Soft Non-Ferrous Metals is available for immediate purchase, ideal for precision machining in metalworking and manufacturing environments.
