Non-Illuminated Push Button Head | Ø22 mm Spring Return | Blue Flush Design by Clipsal
Non-illuminated push button head with Ø22 mm mounting and spring return—ideal for industrial control panels. Built for durability with IP69K rating and blue flush design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

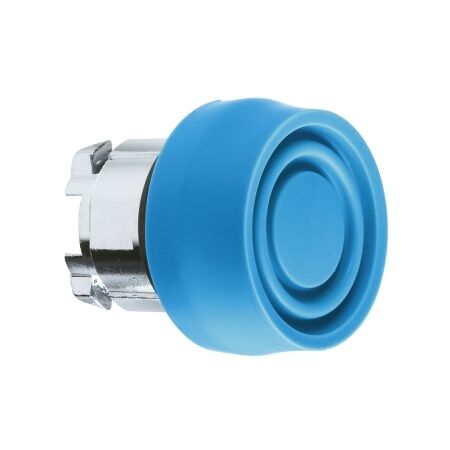

Product Name/Title: Harmony XB4, Head for non illuminated push-button, blue flush pushbutton Ø22 mm spring return unmarked
Brand: Clipsal
SKU: ZB4BP6S
Alternatively Known As: Harmony XB4 Push Button, Non-Illuminated Push Button Head, Blue Push Button
Technical Specifications
- Product type: Head for non-illuminated push-button
- Mounting diameter: 22.5 mm
- Bezel material: Chromium plated metal
- Vibration resistance: 5 gn (f= 2-500 Hz)
- Shock resistance: 30 gn (duration = 18 ms)
- Overvoltage category: Class I conforming to IEC 60536
- NEMA degree of protection: NEMA 13, NEMA 4X
- Dimensions (H x L x W): 30mm x 30mm x 22.5mm
- Weight: 0.03 kg
Key Features
- Mechanical durability of 10,000,000 cycles.
- IP66, IP67, IP69, and IP69K rated for protection against dust and water.
- Spring return operator with blue flush design.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery, automation systems
Standards & Compliance
- Complies with IEC 60947-5-4, IEC 60947-5-1, IEC 60947-5-5
Environmental Benefits
- Packaging made with recycled cardboard and without single-use plastic.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Non-Illuminated Push-Button Head is available now for immediate purchase. Ideal for industrial control applications.
