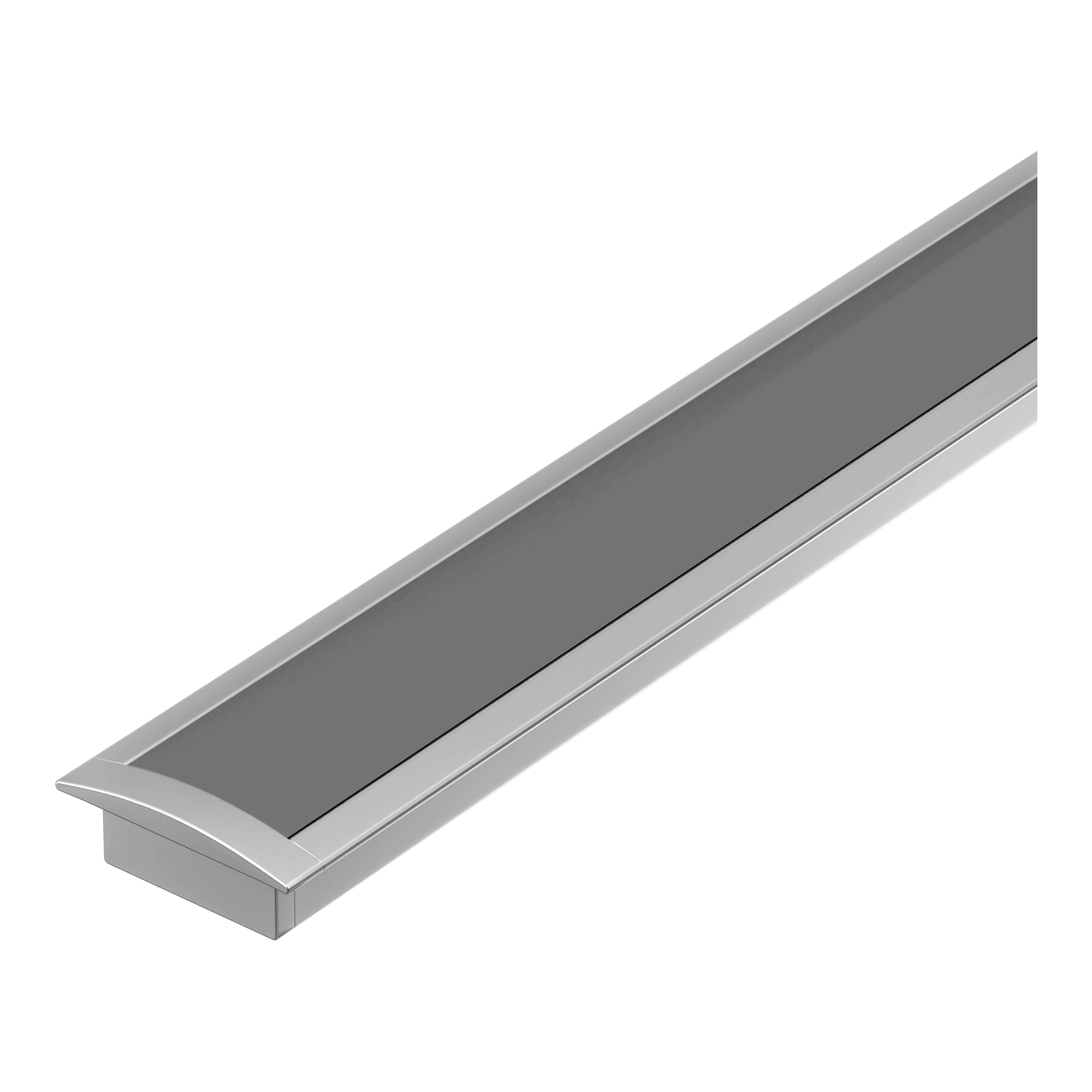

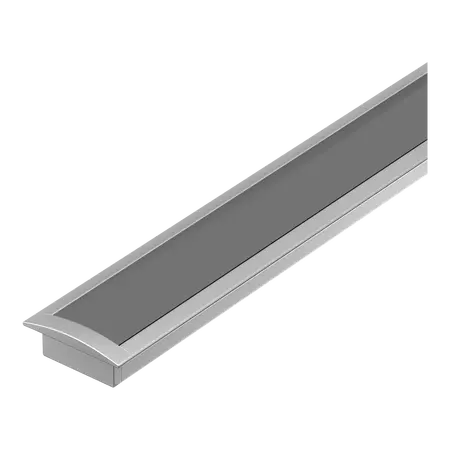

Nova-17 Recessed LED Profile Black Diff Aluminium Per Metre Domus
Domus Nova-17 recessed aluminium LED strip profile, 17x7mm, black diffuser, end caps included, aluminium, sold per metre.
Sign in
Please login to continue to your account.
Alternatively Known As: LP-1707-RC-B-1M, Recessed LED Strip Profile, Aluminium LED Channel, LED Tape Extrusion
- Model: LP-1707-RC-B-1M
- Installation: Recessed mounted
- Material: Extruded aluminium 6063
- Profile Finish: Natural clear anodised aluminium
- Diffuser: Flat black PMMA
- Profile Width: 23 mm
- Profile Height: 8 mm
- Recess Cut-out Width: 17 mm
- Recess Cut-out Depth: 6.5 mm
- Sold Length: 1 metre
- Maximum Continuous Length: 3000 mm
- Compatible LED Strips: Domus PLEX COB-IP54, VIVID-IP54, RGBTW-IP54, RGB-IP54, COB-TW-IP54, MICRO, ULTRA-IP54 and SMD-9-IP54
- Compatibility Note: Not suitable for the IP67 versions of compatible LED strips
- Driver: Remote driver required; not included
- End Caps: Silver end caps available separately
- Dimensions (H x L x W): 8mm x 1000mm x 23mm
- Weight: 0.3 kg
- Recessed aluminium profile for a clean, low-profile LED strip installation
- Black PMMA diffuser provides a dark, discreet appearance when the light is switched off
- Conceals the LED strip and maintains a straight, linear finish
- Helps protect LED strips from dust, vapours and foreign objects
- Suitable for under-bench, pelmet, wardrobe and laundry applications
- Can be cut to the required length
- Designed for compatible Domus LED strip lighting
- Recessed under-bench lighting
- Wardrobe and cabinet lighting
- Laundry lighting
- Pelmet and joinery lighting
- Architectural and decorative linear LED lighting
- Aluminium is highly recyclable and can be recovered at the end of its service life
- The profile helps protect and support the LED strip, potentially extending service life and reducing replacement waste
- The aluminium channel can assist heat dissipation from compatible LED strip lighting
12-month replacement warranty for products not otherwise listed in the Domus Lighting warranty schedule, subject to proof of purchase, licensed installation where applicable and compliance with installation guidelines. Australian Consumer Law rights continue to apply.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
