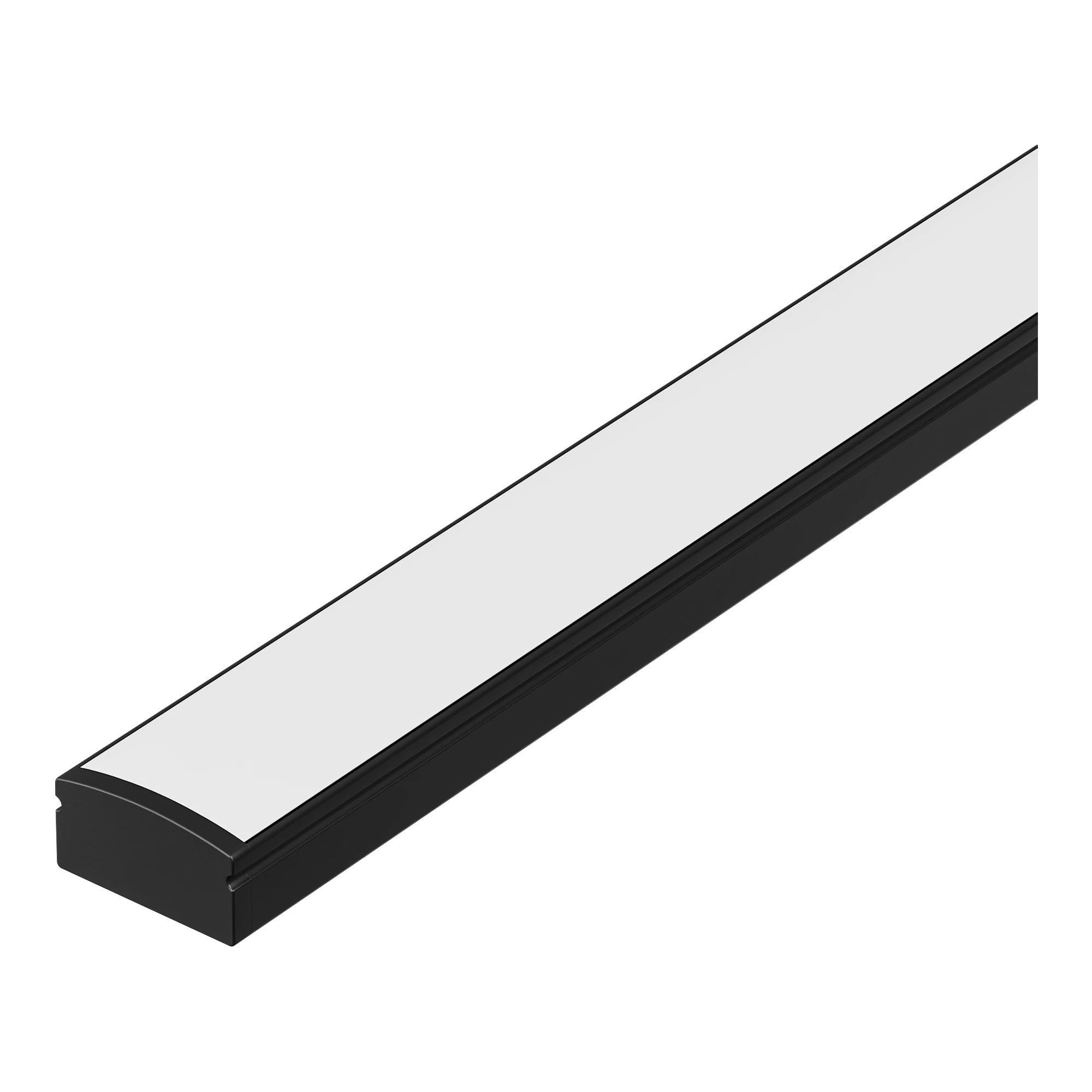

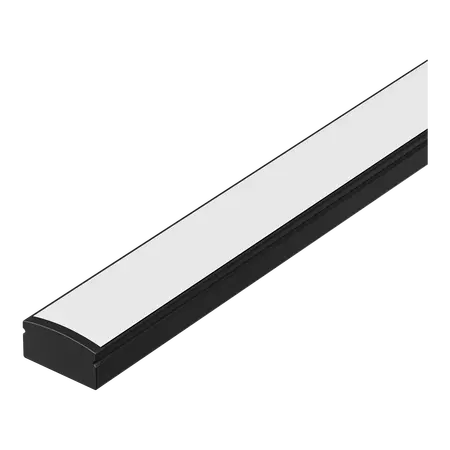

Nova-17 Surface LED Profile Opal Diffuser Black Per Metre Domus
Domus Nova-17 surface mount aluminium LED strip profile, 17x7mm, opal diffuser, end caps included, black, sold per metre.
Sign in
Please login to continue to your account.
Alternatively Known As: Domus LP-1707-SM-O-1M, Nova-17 LED Strip Channel, Surface-Mount Aluminium LED Profile, LED Aluminium Extrusion
- Profile Type: Surface-mounted LED strip profile
- Material: Extruded aluminium 6063
- Finish: Black
- Diffuser: Flat opal PMMA high-output diffuser
- Profile Size: 17 mm wide x 8 mm high
- Supply Length: Sold per metre; supplied from 3 metre continuous profile
- Compatible Strip: Selected Domus PLEX LED strips, including IP54 COB, VIVID-IP54, RGBTW-IP54, RGB-IP54, COB-TW-IP54, MICRO, ULTRA-IP54 and SMD-9-IP54
- Strip Compatibility: Not suitable for the IP67 versions of compatible Domus LED strips
- Installation: Wall or surface mounted
- Accessories: End caps and mounting clips included with the product listing
- Driver Requirement: Requires a remote LED driver, not included
- Profile Code: LP-1707-SM-O-1M; black variant 22078
- Dimensions (H x L x W): 8mm x 1000mm x 17mm
- Weight: 0.14 kg
- Slim 17 x 8 mm surface-mount design
- Black aluminium profile with matching opal diffuser
- Opal diffuser conceals the LED strip and provides a more uniform linear appearance
- Extruded aluminium body assists heat dissipation from the LED strip
- Protects the LED strip from foreign objects and vapours
- Can be cut to suit the required installation length
- Suitable for under-bench, pelmet, wardrobe and laundry applications
- Designed for use with selected Domus PLEX LED strip products
- The aluminium profile can be cut and mechanically surface-mounted by a competent installer. Connection of the LED strip to its remote driver and any mains-voltage wiring should be completed by a licensed electrician in accordance with applicable Australian electrical requirements.
- Under-bench and cabinet lighting
- Pelmet lighting
- Wardrobe lighting
- Laundry lighting
- Furniture and joinery lighting
- Surface-mounted linear LED lighting in residential and commercial interiors
- AS/NZS 3000:2018 is applicable to the electrical installation of the associated LED strip, remote driver and wiring; no specific Australian or New Zealand product standard was identified for this passive aluminium profile.
- Aluminium is highly recyclable and can be recovered at the end of the product’s service life
- The aluminium extrusion assists LED heat management, which can support longer strip service life and reduce replacement waste
- The diffuser and profile help protect the LED strip from contamination and physical damage, potentially extending system life
Domus Lighting’s current warranty statement provides a 12-month replacement warranty for products not specifically listed in its warranty-duration table, subject to proof of purchase, licensed electrical installation where applicable and compliance with installation guidelines. Australian Consumer Law rights also apply.
Available through Domus Lighting and authorised Australian lighting and electrical distributors, subject to distributor stock levels.
