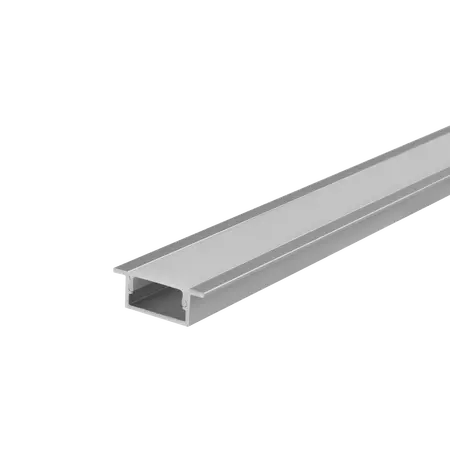

Nova-20 Recessed LED Profile Opal Diff Aluminium Per Metre Domus
Domus Nova-20 recessed aluminium LED strip profile, 20x10mm, opal diffuser, end caps included, aluminium, sold per metre.
Sign in
Please login to continue to your account.
Alternatively Known As: LP-2010-RC-1M, Nova-20 Recessed Aluminium LED Profile, Recessed LED Strip Channel, Aluminium LED Extrusion
- Model: LP-2010-RC-1M
- Variant: 22941
- Installation: Recess mounted
- Material: Extruded aluminium 6063
- Finish: Natural clear anodised aluminium
- Diffuser: Flat opal PMMA
- Profile size: 28 mm wide x 10 mm high
- Length: 1 metre supplied; profile can be cut to lengths up to 3 metres
- Included accessories: End cap and mounting clips
- Compatible lighting: Domus PLEX IP54 LED strip range
- Driver: Remote driver required
- IP compatibility: Designed for IP54 LED strip lighting; not suitable for the IP67 version of these strips
- Dimensions (H x L x W): 10mm x 1000mm x 28mm
- Weight: 0.3 kg
- Recessed mounting design for integrated architectural lighting installations
- Flat opal diffuser helps conceal the LED strip and provide smooth linear light output
- Extruded 6063 aluminium construction assists heat dissipation and profile rigidity
- Includes end cap and mounting clips
- Suitable for under-bench, wardrobe, joinery and laundry applications
- Compatible with selected Domus PLEX IP54 LED strip products
- Available in aluminium, black and white finishes across the range
- The passive aluminium profile can be cut and fitted by a competent installer. Any connection of the associated LED strip, remote driver or mains-voltage wiring should be completed by a licensed electrician in accordance with applicable installation requirements.
- Recessed under-bench lighting
- Wardrobe and cabinet lighting
- Laundry joinery lighting
- Architectural joinery and furniture lighting
- Residential and commercial linear LED lighting installations
- Aluminium is durable and widely recyclable at end of service life
- The replaceable profile and diffuser can support maintenance of the associated LED strip system without replacing the complete installation
- Aluminium construction assists thermal management of compatible LED strip lighting, supporting reliable operation and service life
- Designed for use with LED lighting systems, which can provide lower energy consumption than conventional light sources
Domus Lighting's current warranty policy states that products not otherwise listed are covered by a 12-month replacement warranty. Warranty claims require proof of purchase, compliant installation and installation by a licensed electrician; Australian Consumer Law rights continue to apply.
Available through Domus Lighting and authorised Australian distributors.
