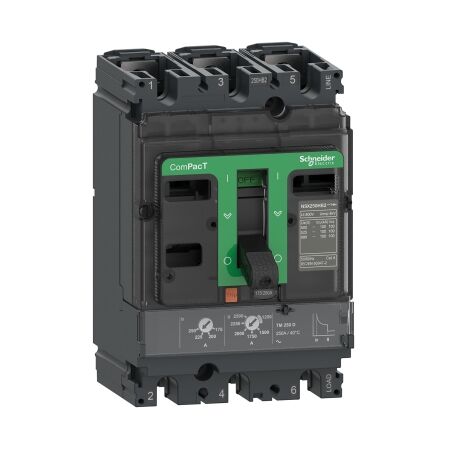

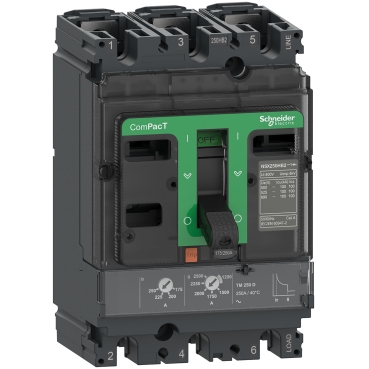

NSX 250F 36KA AC3 200 AMP MCCB | 3 Pole Configuration | Thermal-Magnetic Trip | Compact Design | @Pack of 1 | by Clipsal
The NSX 250F 36KA AC3 200 AMP MCCB is designed for commercial and industrial electrical distribution systems, featuring a robust 3 pole configuration and a thermal-magnetic trip unit for reliable overload and short-circuit protection. With a breaking capacity of 36kA at 415V AC, this compact circuit breaker ensures safe and efficient power distribution, making it ideal for switchboards and panel boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSX 250F 36KA AC3 200 AMP MCCB | 3 Pole Configuration | Thermal-Magnetic Trip | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC25F3TM200
Alternatively Known As: NSX250F MCCB, 200A Molded Case Circuit Breaker, 3 Pole MCCB 36kA, Schneider NSX 250F, SCHC25F3TM200
Technical Specifications
- Rated current: 200A
- Number of poles: 3
- Breaking capacity: 36kA at 415V AC
- Rated insulation voltage: 690V
- Trip unit: Thermal-magnetic
- Mounting: Fixed
- Standards: IEC 60947-2
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 161mm x 86mm x 140mm
- Weight: 3.5 kg
Key Features
- Rated current: 200A
- Breaking capacity: 36kA at 415V AC
- 3 pole configuration
- Thermal-magnetic trip unit for overload and short-circuit protection
- Compact design for easy installation
- High reliability and robust construction
- Front face operation with clear ON/OFF indication
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panel boards
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 60947.2 for low-voltage switchgear and controlgear circuit breakers
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables safe and efficient power distribution, reducing risk of electrical fires and energy loss.
- Long operational life reduces replacement frequency and associated waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal NSX 250F 36kA 3 Pole 200A MCCB (SCHC25F3TM200) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems requiring reliable circuit protection.
