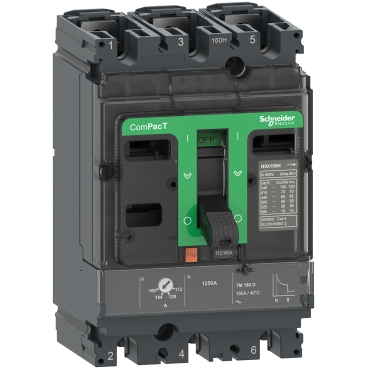

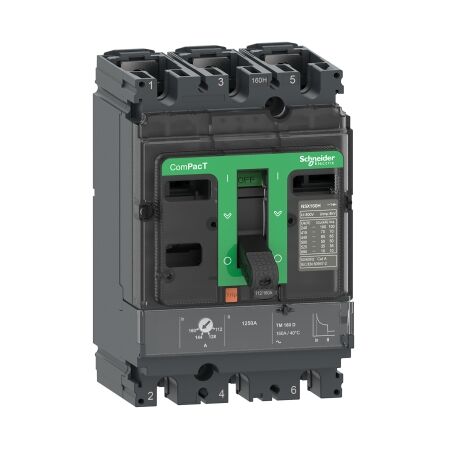

NSX100B Circuit Breaker | 25kA Breaking Capacity | 63A Thermal-Magnetic | 3 Pole Configuration | @Pack of 1 | by Clipsal
The NSX100B Circuit Breaker is designed for reliable protection in commercial and industrial electrical distribution systems. With a 25kA breaking capacity at 415V AC and a 63A rated current, this 3-pole thermal-magnetic breaker ensures safety against overloads and short circuits. Ideal for switchboards and panel boards, it features a compact design for space-saving installation and complies with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSX100B Circuit Breaker | 25kA Breaking Capacity | 63A Thermal-Magnetic | 3 Pole Configuration | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC10B3TM063
Alternatively Known As: NSX100B Circuit Breaker, 63A MCCB, 3 Pole 25kA Breaker, SCHC10B3TM063, Schneider NSX100B 63A
Technical Specifications
- Rated current: 63A
- Breaking capacity: 25kA at 415V AC
- Number of poles: 3
- Trip unit: Thermal-magnetic (TMD)
- Frame size: NSX100B
- Standards: IEC 60947-2
- Mounting: Fixed
- Frequency: 50/60Hz
- Operating voltage: 415V AC
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.5 kg
Key Features
- Rated current: 63A
- Breaking capacity: 25kA at 415V AC
- 3 pole, 3 direct (3P3D) configuration
- Thermal-magnetic (TMD) trip unit for overload and short-circuit protection
- Compact NSX100B frame for space-saving installation
- High reliability and robust construction
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panel boards
- Infrastructure and building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient energy management by providing reliable circuit protection and reducing downtime.
- Long operational life reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX100B 25kA AC 3P3D 63A TMD Circuit Breaker (SCHC10B3TM063) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
