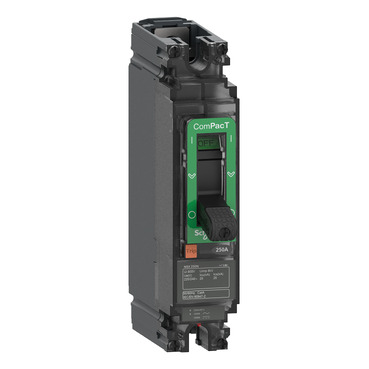

NSX100F 18kA AC/DC 1P 50A MCB | Thermal-Magnetic Trip | DIN Rail Mount | by Clipsal
The NSX100F 18kA AC/DC 1P 50A MCB is designed for reliable circuit protection in commercial and industrial applications. With a high breaking capacity of 18kA and a thermal-magnetic trip unit, it ensures safety against overloads and short circuits. Ideal for installation in electrical distribution boards, this compact breaker is compliant with Australian standards and perfect for both AC and DC circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSX100F 18kA AC/DC 1P 50A MCB | Thermal-Magnetic Trip | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHC10F1TM050
Alternatively Known As: Clipsal 50A MCB, NSX100F Miniature Circuit Breaker, 1 Pole 50A Breaker, SCHC10F1TM050, Clipsal AC/DC MCB
Technical Specifications
- Rated current: 50A
- Poles: 1P (Single Pole)
- Breaking capacity: 18kA
- Rated voltage: AC/DC
- Trip unit: Thermal-magnetic
- Mounting: DIN rail
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 130mm x 75mm x 25mm
- Weight: 0.6 kg
Key Features
- High breaking capacity of 18kA for reliable circuit protection
- Single pole (1P) design rated at 50A
- Suitable for both AC and DC applications
- Compact and robust construction
- Thermal-magnetic trip unit for overload and short-circuit protection
- Easy installation on DIN rail
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Protection of circuits in switchboards
- Suitable for both AC and DC applications
- Ideal for use in infrastructure, manufacturing, and large facilities
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and equipment damage
- Supports efficient energy management by preventing overloads
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal NSX100F 18kA AC/DC 1P 50A MCB (SCHC10F1TM050) is available for immediate purchase. Ideal for commercial and industrial electrical protection applications.
