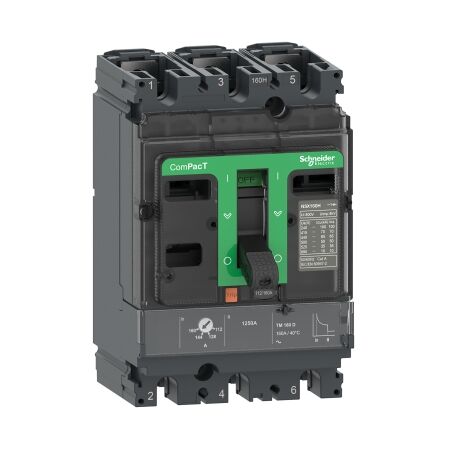

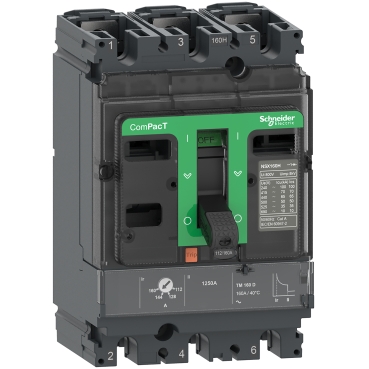

NSX100N 50kA AC 3P3D Circuit Breaker | 100A Thermal Magnetic | 3 Poles | by Clipsal
The NSX100N 50kA AC 3P3D Circuit Breaker is designed for robust circuit protection in commercial and industrial electrical distribution systems. With a high breaking capacity of 50kA at 415VAC and a reliable Thermal Magnetic (TMD) trip unit, it ensures safety and efficiency. Ideal for main and sub-main circuit protection, this compact breaker integrates easily into standard electrical panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSX100N 50kA AC 3P3D Circuit Breaker | 100A Thermal Magnetic | 3 Poles | by Clipsal
Brand: Clipsal
SKU: SCHC10N3TM100
Alternatively Known As: ComPacT NSX100N Circuit Breaker, 100A 3 Pole MCCB, NSX100N 100A TMD, Schneider NSX100N 3P3D, SCHC10N3TM100
Technical Specifications
- Rated current: 100A
- Breaking capacity: 50kA at 415VAC
- Number of poles: 3
- Trip unit: Thermal Magnetic (TMD)
- Frame size: NSX100N
- Frequency: 50/60Hz
- Standards: IEC 60947-2
- Mounting: Fixed
- Operating voltage: 220-415VAC
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.2 kg
Key Features
- High breaking capacity of 50kA at 415VAC for robust circuit protection
- Thermal Magnetic (TMD) trip unit for reliable overload and short-circuit protection
- 3 poles, 3d (3-pole, 3 direct connection) configuration
- Compact NSX100N frame for space-saving installation
- Easy integration into standard electrical panels
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panelboards
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy-efficient electrical distribution by minimizing downtime and electrical losses
- Designed for long service life, reducing replacement frequency and associated waste
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal NSX100N 50kA AC 3P3D 100A TMD Circuit Breaker (SCHC10N3TM100) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
