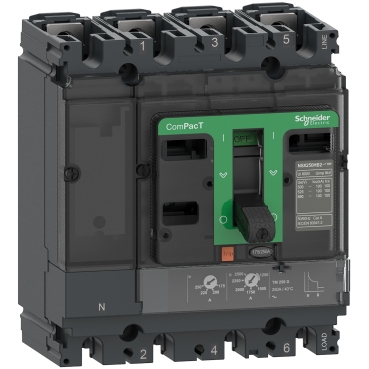

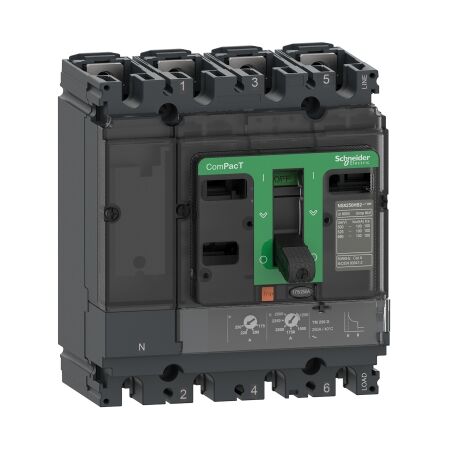

Product Name/Title: NSX160F 36kA AC 4P3D Circuit Breaker | 125A Rated Current | Thermal-Magnetic Trip Unit | by Clipsal
Brand: Clipsal
SKU: SCHC16F6TM125
Alternatively Known As: NSX160F circuit breaker, 125A MCCB, 4 pole circuit breaker, SCHC16F6TM125, Schneider NSX160F, thermal magnetic breaker
Technical Specifications
- Rated current: 125A
- Number of poles: 4 (3 protected + neutral)
- Breaking capacity: 36kA at 415V AC
- Trip unit: Thermal-magnetic (TMD)
- Rated operational voltage: 690V AC max
- Frequency: 50/60Hz
- Utilization category: A
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 161mm x 86mm x 140mm
- Weight: 3.5 kg
Key Features
- Rated current: 125A
- Breaking capacity: 36kA at 415V AC
- 4 pole, 3D (3 protected poles + neutral)
- Thermal-magnetic (TMD) trip unit for overload and short-circuit protection
- Compact NSX160F frame for space-saving installation
- High reliability and robust construction
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panel boards
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Designed for long operational life, reducing replacement frequency and waste
- High efficiency reduces energy losses in electrical distribution
- Compliant with RoHS for reduced hazardous substances
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX160F 36kA AC 4P3D 125A TMD (SCHC16F6TM125) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems requiring high-performance circuit protection.
