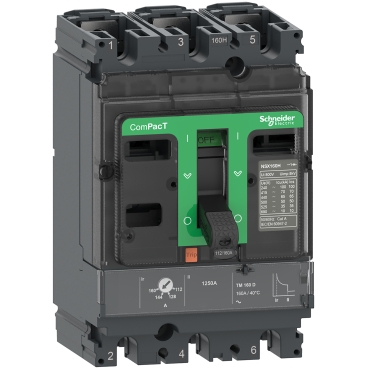

NSX160F Circuit Breaker | 36kA Breaking Capacity | 160A Thermal-Magnetic | 3 Pole Configuration | @Pack of 1 | by Clipsal
The NSX160F Circuit Breaker is designed for reliable protection in commercial and industrial electrical distribution systems. With a robust 36kA breaking capacity at 415V AC and a thermal-magnetic trip unit, it ensures safety against overloads and short circuits. Ideal for main and sub-main circuit protection, this 3-pole breaker is built for high reliability and space-saving installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSX160F Circuit Breaker | 36kA Breaking Capacity | 160A Thermal-Magnetic | 3 Pole Configuration | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC16F3TM160
Alternatively Known As: NSX160F Circuit Breaker, 160A MCCB, Schneider NSX160F, 3 Pole 160A Breaker, SCHC16F3TM160
Technical Specifications
- Rated current: 160A
- Breaking capacity: 36kA at 415V AC
- Number of poles: 3
- Trip unit: Thermal-magnetic (TMD)
- Rated insulation voltage: 690V
- Utilization category: A
- Mounting: Fixed
- Standards: IEC 60947-2
- Frequency: 50/60Hz
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 3.5 kg
Key Features
- Rated current: 160A
- Breaking capacity: 36kA at 415V AC
- 3 pole, 3 direct (3P3D) configuration
- Thermal-magnetic (TMD) trip unit for overload and short-circuit protection
- Compact NSX frame for space-saving installation
- High reliability and robust construction
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panelboards
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy-efficient electrical distribution by minimizing downtime and electrical losses.
- Long operational life reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX160F 36kA AC 3P3D 160A TMD Circuit Breaker (SCHC16F3TM160) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
