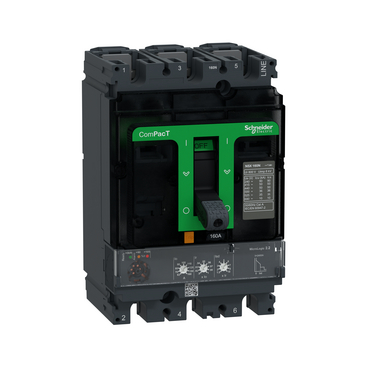

NSX160N 50kA AC 3P3D 160A MCCB | Thermal-Magnetic Trip | Compact Design | by Clipsal
The NSX160N 50kA AC 3P3D 160A MCCB is engineered for reliable circuit protection in commercial and industrial applications. With a robust thermal-magnetic trip unit and a breaking capacity of 50kA at 415V AC, this compact molded case circuit breaker ensures safety and efficiency in electrical distribution. Ideal for switchboards and panel boards, it meets IEC standards for high reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSX160N 50kA AC 3P3D 160A MCCB | Thermal-Magnetic Trip | Compact Design | by Clipsal
Brand: Clipsal
SKU: SCHC16N32D160
Alternatively Known As: NSX160N MCCB, 160A Molded Case Circuit Breaker, Schneider NSX160N, 3 Pole 160A Breaker, SCHC16N32D160
Technical Specifications
- Rated current: 160A
- Number of poles: 3
- Breaking capacity: 50kA at 415V AC
- Rated operational voltage: 690V AC max
- Trip unit: Thermal-magnetic
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Frequency: 50/60Hz
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 3.5 kg
Key Features
- Rated current: 160A
- Breaking capacity: 50kA at 415V AC
- 3 pole, 3 direct (3P3D) configuration
- Compact molded case circuit breaker (MCCB)
- Thermal-magnetic trip unit for overload and short-circuit protection
- High reliability and robust construction
- Suitable for isolation and circuit protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Main and sub-main circuit protection
- Switchboards in factories, offices, and large buildings
- Panel boards for critical infrastructure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables safe and efficient power distribution, reducing risk of electrical fires and energy waste.
- Long operational life reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX160N 160A 3P3D 50kA MCCB (SCHC16N32D160) is available for immediate purchase. Ideal for commercial and industrial switchboards requiring high-capacity circuit protection.
