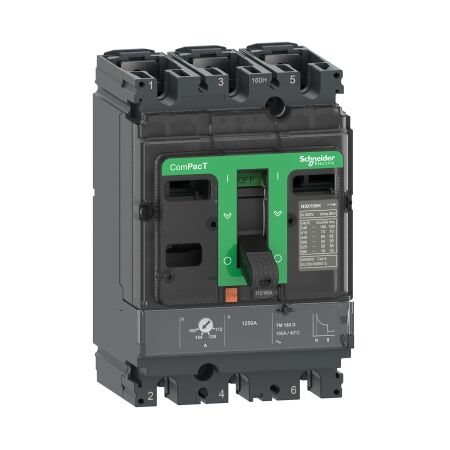

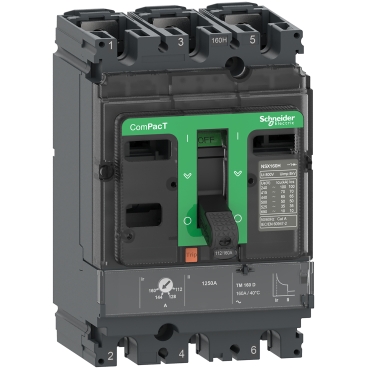

NSX160N Circuit Breaker | 50kA Breaking Capacity | 3 Pole TMD | 125A Rated | @Pack of 1 | by Clipsal
The NSX160N Circuit Breaker is designed for robust electrical protection with a high breaking capacity of 50kA at 415V AC. This 3-pole thermal-magnetic (TMD) breaker is ideal for commercial and industrial electrical distribution systems, ensuring reliable overload and short-circuit protection. With adjustable trip settings, it offers flexibility for various applications, making it a perfect choice for switchboards and panel boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSX160N Circuit Breaker | 50kA Breaking Capacity | 3 Pole TMD | 125A Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC16N3TM125
Alternatively Known As: NSX160N Circuit Breaker, 125A MCCB, 3 Pole MCCB, Schneider NSX160N, SCHC16N3TM125
Technical Specifications
- Rated current: 125A
- Breaking capacity: 50kA at 415V AC
- Number of poles: 3
- Type: Thermal-magnetic (TMD)
- Frame size: NSX160N
- Standards: IEC 60947-2
- Mounting: Fixed
- Frequency: 50/60Hz
- Operating voltage: 220/415V AC
- Trip unit: Adjustable thermal and magnetic
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.5 kg
Key Features
- High breaking capacity of 50kA at 415V AC
- Thermal-magnetic (TMD) protection for overload and short-circuit
- 3 pole, 3 direct connection (3P3D) configuration
- Adjustable thermal and magnetic trip settings
- Compact NSX frame for space-saving installation
- Robust and reliable Clipsal/Schneider Electric design
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panel boards
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy-efficient electrical distribution by minimizing downtime and electrical losses.
- Long operational life reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX160N 50kA AC 3P3D 125A TMD Circuit Breaker (SCHC16N3TM125) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
