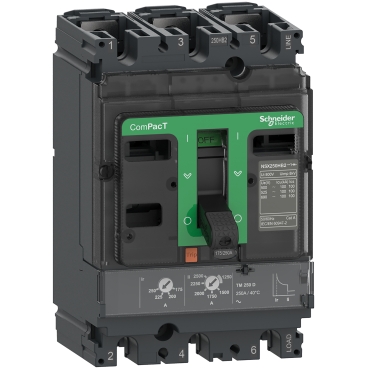

NSX250B Circuit Breaker | 25kA Breaking Capacity | 160A Thermal-Magnetic | 3 Pole Configuration | @Pack of 1 | by Clipsal
The NSX250B Circuit Breaker is designed for reliable protection in commercial and industrial electrical distribution systems. With a 25kA breaking capacity and a 160A rated current, this 3-pole thermal-magnetic breaker ensures optimal overload and short-circuit protection. Ideal for switchboards and panel boards, it offers high performance and durability, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSX250B Circuit Breaker | 25kA Breaking Capacity | 160A Thermal-Magnetic | 3 Pole Configuration | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC25B3TM160
Alternatively Known As: NSX250B Circuit Breaker, 160A MCCB, 3 Pole 25kA Breaker, SCHC25B3TM160, Schneider NSX250B 160A
Technical Specifications
- Rated current: 160A
- Breaking capacity: 25kA at 415V AC
- Number of poles: 3
- Trip unit: Thermal-magnetic (TMD)
- Rated insulation voltage: 690V AC
- Utilization category: A
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 161mm x 86mm x 140mm
- Weight: 3.5 kg
Key Features
- Compact molded case circuit breaker for reliable protection
- Rated current: 160A
- Breaking capacity: 25kA at 415V AC
- 3 pole, 3 direct (3P3D) configuration
- Thermal-magnetic (TMD) trip unit for overload and short-circuit protection
- High performance and durability for demanding environments
- Front face operation with clear status indication
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panel boards
- Infrastructure and facility management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy efficiency by minimizing electrical losses and improving system reliability
- Long operational life reduces replacement frequency and associated waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX250B 25kA AC 3P3D 160A TMD Circuit Breaker (SCHC25B3TM160) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
