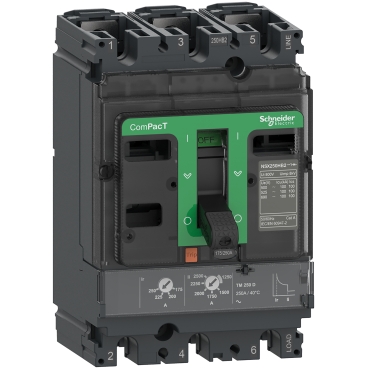

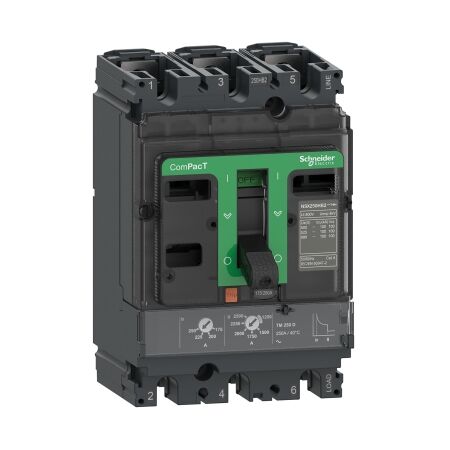

NSX250F Circuit Breaker | 36kA Breaking Capacity | 250A Thermal-Magnetic | 3 Pole Design | @Pack of 1 | by Clipsal
The NSX250F Circuit Breaker is engineered for commercial and industrial electrical distribution systems, featuring a high breaking capacity of 36kA at 415V AC and a reliable thermal-magnetic trip unit. With a rated current of 250A and a compact design, it ensures optimal protection for main and sub-main circuits, making it an essential component for switchboards and panel boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSX250F Circuit Breaker | 36kA Breaking Capacity | 250A Thermal-Magnetic | 3 Pole Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC25F3TM250
Alternatively Known As: NSX250F Circuit Breaker, 250A MCCB, 3 Pole 36kA Breaker, SCHC25F3TM250, Schneider NSX250F
Technical Specifications
- Rated current: 250A
- Breaking capacity: 36kA at 415V AC
- Number of poles: 3
- Trip unit: Thermal-magnetic (TMD)
- Rated operational voltage: 690V AC max
- Frequency: 50/60Hz
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 161mm x 86mm x 140mm
- Weight: 4.5 kg
Key Features
- High breaking capacity of 36kA at 415V AC
- Thermal-magnetic trip unit for reliable protection
- 3 pole, 3 direct connection design
- Rated current: 250A
- Compact NSX frame for space-saving installation
- Robust and durable construction
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panel boards
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy-efficient electrical distribution by minimizing losses and improving system reliability.
- Designed for long service life, reducing replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX250F 36kA AC 3P3D 250A TMD Circuit Breaker (SCHC25F3TM250) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
