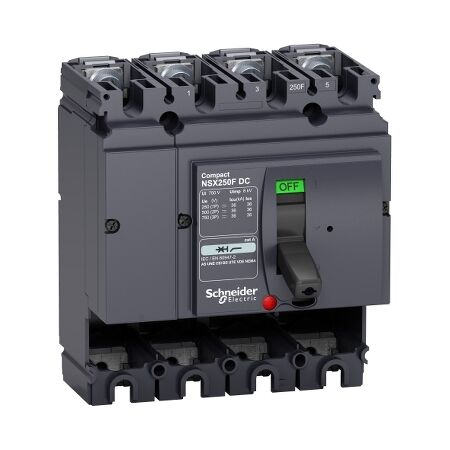

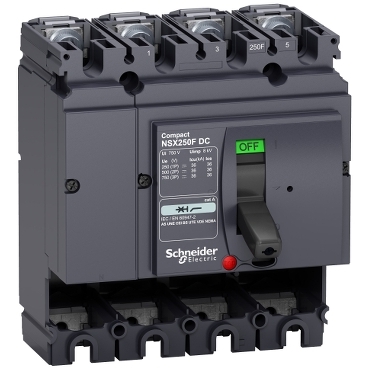

NSX250F DC Circuit Breaker Frame | 4 Pole Configuration | 36kA Breaking Capacity | 250A Rated | @Pack of 1 | by Clipsal
The NSX250F DC Circuit Breaker Frame is designed for reliable DC power distribution, featuring a robust 4 pole configuration and a high breaking capacity of 36kA at 750VDC. Ideal for commercial and industrial applications, this frame allows for customizable protection as it is supplied without a trip unit, making it perfect for renewable energy installations and data centers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSX250F DC Circuit Breaker Frame | 4 Pole Configuration | 36kA Breaking Capacity | 250A Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV438208
Alternatively Known As: NSX250F DC Circuit Breaker Frame, ComPact NSX250F 4 Pole DC Breaker, SCHLV438208, Clipsal 250A DC Breaker Frame
Technical Specifications
- Type: Circuit breaker basic frame
- Series: ComPact NSX250F DC
- Poles: 4
- Rated current: 250A
- Breaking capacity: 36kA at 750VDC
- Trip unit: Not included (frame only)
- Mounting: Fixed
- Application: DC power distribution
- Dimensions (H x L x W): 255mm x 110mm x 140mm
- Weight: 4.5 kg
Key Features
- ComPact NSX250F DC circuit breaker frame
- 4 pole configuration for DC applications
- High breaking capacity of 36kA at 750VDC
- Rated for 250A
- Supplied without trip unit for customizable protection
- Robust and reliable design for demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced in DC power systems to ensure compliance with Australian standards and safety regulations.
Applications
- Commercial and industrial electrical distribution systems
- DC power distribution in renewable energy installations
- Data centers and telecommunication facilities
- Battery storage and backup power systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports safe and efficient DC power distribution, enabling integration of renewable energy sources.
- Durable construction reduces replacement frequency and electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX250F DC 4P 36KA (FRAME W/O) SCHLV438208 is available for immediate purchase. Ideal for commercial and industrial DC power distribution applications.
