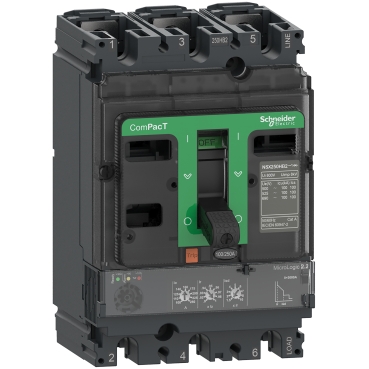

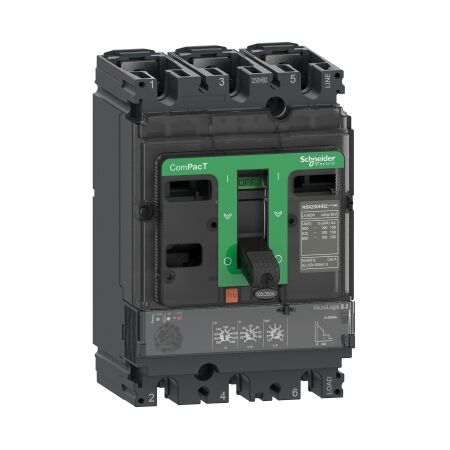

NSX250N Circuit Breaker | 50kA Breaking Capacity | 250A Rated Current | 3 Pole Configuration | @Pack of 1 | by Clipsal
The NSX250N Circuit Breaker is designed for heavy-duty applications, featuring a high breaking capacity of 50kA and a rated current of 250A. Ideal for commercial and industrial electrical distribution systems, this 3-pole MCCB ensures reliable circuit protection with its thermal-magnetic trip unit. Compliant with international safety standards, it’s perfect for switchboards and power management in large buildings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSX250N Circuit Breaker | 50kA Breaking Capacity | 250A Rated Current | 3 Pole Configuration | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC25N32D250
Alternatively Known As: NSX250N Circuit Breaker, 250A MCCB, 3 Pole 50kA Breaker, Schneider NSX250N, SCHC25N32D250
Technical Specifications
- Rated current: 250A
- Breaking capacity: 50kA at 415V AC
- Number of poles: 3
- Type: Molded Case Circuit Breaker (MCCB)
- Trip unit: Thermal-magnetic
- Rated operational voltage: 690V AC max
- Frequency: 50/60Hz
- Mounting: Fixed
- Standards: IEC 60947-2, AS/NZS 60947.2
- Dimensions (H x L x W): 161mm x 86mm x 140mm
- Weight: 4.5 kg
Key Features
- High breaking capacity of 50kA for reliable circuit protection
- 3 pole, 3 direct (3P3D) configuration for three-phase systems
- Rated current of 250A for heavy-duty applications
- Compact NSX frame for space-saving installation
- Thermal-magnetic trip unit for overload and short-circuit protection
- Complies with international and Australian safety standards
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Commercial and industrial electrical distribution panels
- Main and sub-main circuit protection
- Switchboards in factories, warehouses, and large buildings
- Infrastructure and utility power management
Standards & Compliance
- Complies with AS/NZS 60947.2 – Low-voltage switchgear and controlgear – Circuit-breakers
Environmental Benefits
- Supports energy-efficient power distribution by minimizing downtime and electrical losses
- Long operational life reduces replacement frequency and associated waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX250N 50kA AC 3P3D 250A Circuit Breaker (SCHC25N32D250) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
