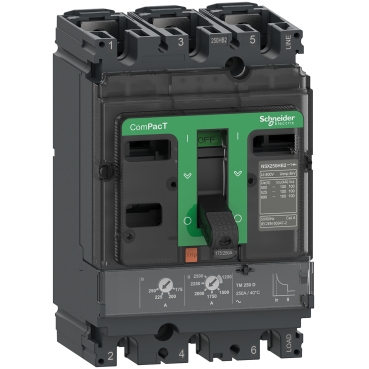

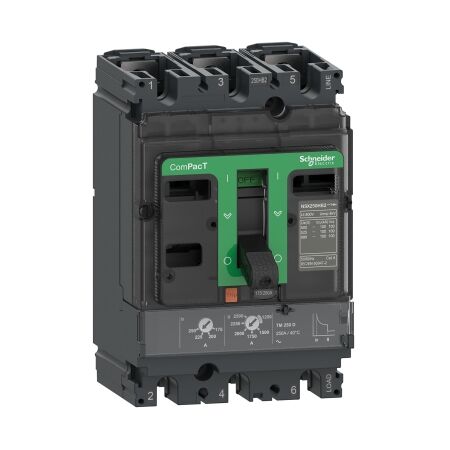

NSX250N Circuit Breaker | 50kA Breaking Capacity | 250A Thermal-Magnetic | 3 Pole Configuration | @Pack of 1 | by Clipsal
The NSX250N circuit breaker is designed for commercial and industrial electrical distribution systems, featuring a high breaking capacity of 50kA at 415V AC and a 250A thermal-magnetic protection system. Ideal for main and sub-main circuit protection, this robust 3-pole breaker ensures reliable operation in demanding environments, making it a perfect choice for switchboards and panelboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSX250N Circuit Breaker | 50kA Breaking Capacity | 250A Thermal-Magnetic | 3 Pole Configuration | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC25N3TM250
Alternatively Known As: NSX250N circuit breaker, 250A MCCB, 3 pole 250A breaker, SCHC25N3TM250, Schneider NSX250N, 50kA molded case circuit breaker
Technical Specifications
- Rated current: 250A
- Breaking capacity: 50kA at 415V AC
- Number of poles: 3
- Type: Thermal-magnetic (TMD)
- Rated operational voltage: 690V AC max
- Frequency: 50/60Hz
- Trip unit: Adjustable thermal and magnetic
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 161mm x 86mm x 140mm
- Weight: 4.5 kg
Key Features
- High breaking capacity of 50kA at 415V AC
- Thermal-magnetic (TMD) protection for overload and short-circuit
- 3 pole, 3 direct connection (3P3D) configuration
- Adjustable thermal and magnetic trip settings
- Compact NSX frame for space-saving installation
- Robust design for reliable operation in demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panelboards
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy-efficient electrical distribution by minimizing downtime and electrical losses.
- Long operational life reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX250N 50kA AC 3P3D 250A TMD circuit breaker (SCHC25N3TM250) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
