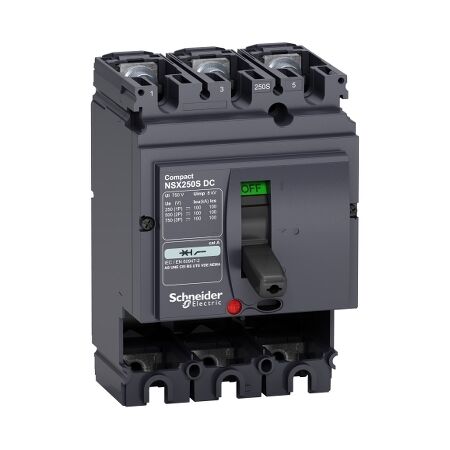

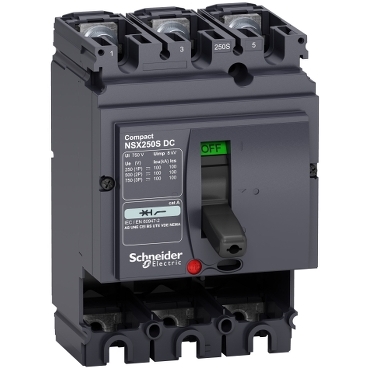

NSX250S DC Circuit Breaker | 100kA Breaking Capacity | 3-Pole Configuration | Modular Frame Design | @Pack of 1 | by Clipsal
The NSX250S DC Circuit Breaker is designed for high-performance electrical distribution, featuring a robust 100kA breaking capacity and a 3-pole configuration for comprehensive protection. Ideal for commercial and industrial applications, this modular frame design ensures flexible installation and reliable operation in demanding environments, making it perfect for renewable energy systems and critical infrastructure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSX250S DC Circuit Breaker | 100kA Breaking Capacity | 3-Pole Configuration | Modular Frame Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV438218
Alternatively Known As: NSX250S DC Circuit Breaker, 3 Pole 100kA Frame, SCHLV438218, Schneider NSX250S DC, Clipsal DC MCCB
Technical Specifications
- Type: Molded Case Circuit Breaker (MCCB)
- Poles: 3
- Breaking Capacity: 100kA (DC)
- Frame Only (without trip unit)
- Rated Current Frame: 250A
- Voltage: Up to 750V DC
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 255mm x 110mm x 140mm
- Weight: 3.5 kg
Key Features
- High breaking capacity of 100kA for DC applications
- 3-pole configuration for comprehensive circuit protection
- Modular frame design for flexible installation
- Reliable protection against overloads and short circuits
- Suitable for demanding industrial and commercial environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with DC systems and high fault current protection devices.
Applications
- Commercial and industrial electrical distribution systems
- DC power distribution panels
- Renewable energy installations
- Critical infrastructure requiring high fault current protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and equipment damage
- Supports reliable operation of renewable energy and efficient power systems
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX250S DC 3P 100kA Circuit Breaker Frame (SCHLV438218) is available for immediate purchase. Ideal for commercial and industrial DC power distribution applications.
