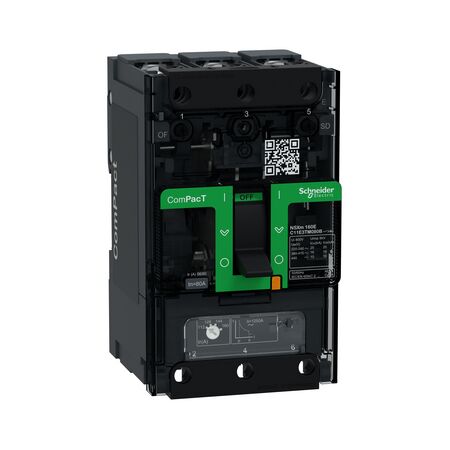

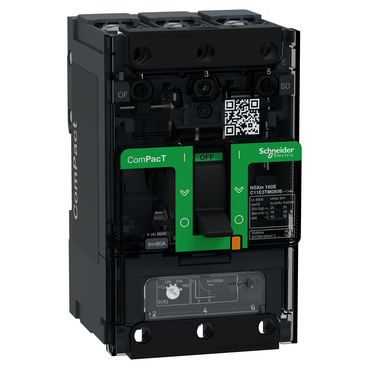

NSXm160E 16kA AC 3P 80A TMD Busbar | Thermal Magnetic Protection | Compact Design | by Clipsal
The NSXm160E 16kA AC 3P 80A TMD Busbar is engineered for reliable circuit protection in commercial and industrial settings. With a breaking capacity of 16kA at 415V AC and thermal magnetic protection, it ensures safety and efficiency in electrical distribution boards. Ideal for licensed electricians, this busbar is compatible with various panelboards and switchboards, making it a versatile choice for your electrical needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSXm160E 16kA AC 3P 80A TMD Busbar | Thermal Magnetic Protection | Compact Design | by Clipsal
Brand: Clipsal
SKU: SCHC11E3TM080B
Alternatively Known As: NSXm160E Circuit Breaker, 80A 3P TMD Busbar, Clipsal 16kA MCCB, SCHC11E3TM080B, Compact NSXm160E Breaker
Technical Specifications
- Rated current: 80A
- Number of poles: 3
- Breaking capacity: 16kA at 415V AC
- Type: Thermal Magnetic (TMD)
- Mounting: Busbar compatible
- Standard compliance: IEC 60947-2
- Operating voltage: 415V AC
- Frequency: 50/60Hz
- Dimensions (H x L x W): 130mm x 75mm x 105mm
- Weight: 2.5 kg
Key Features
- Rated current: 80A
- Breaking capacity: 16kA at 415V AC
- 3-pole (3P) configuration
- Thermal Magnetic (TMD) protection
- Compact NSXm160E series design
- Suitable for use with busbar systems
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Panelboards and switchboards
- Protection of electrical circuits in buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient energy management by providing reliable circuit protection and reducing downtime.
- Designed for long service life, minimizing replacement waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSXm160E 16kA AC 3P 80A TMD Busbar is available for immediate purchase. Ideal for commercial and industrial electrical distribution applications.
