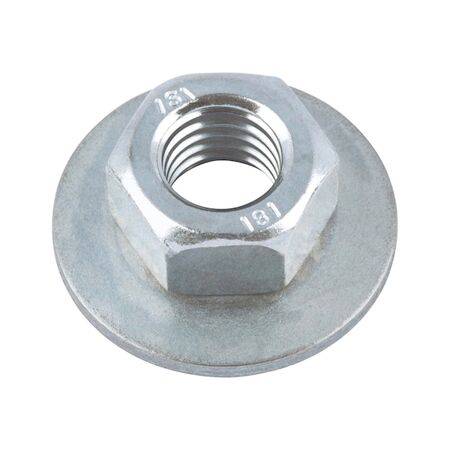

Nut with Spring Lock Washer M6 | Zinc Plated Blue Passivated | Easy Installation | @Pack of 25 | by Wurth
Nut with Spring Lock Washer M6 is designed for easy installation, featuring a zinc plated blue passivated finish that ensures corrosion resistance. Ideal for mechanical fastening in machinery, automotive assembly, and construction applications, this nut and washer combination provides large contact surfaces for better tension distribution and protects workpiece surfaces from damage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Nut with Spring Lock Washer M6 | Zinc Plated Blue Passivated | Easy Installation | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 379006
Alternatively Known As: Spring Lock Nut, Hex Nut with Lock Washer, M6 Lock Nut, Zinc Plated Lock Nut

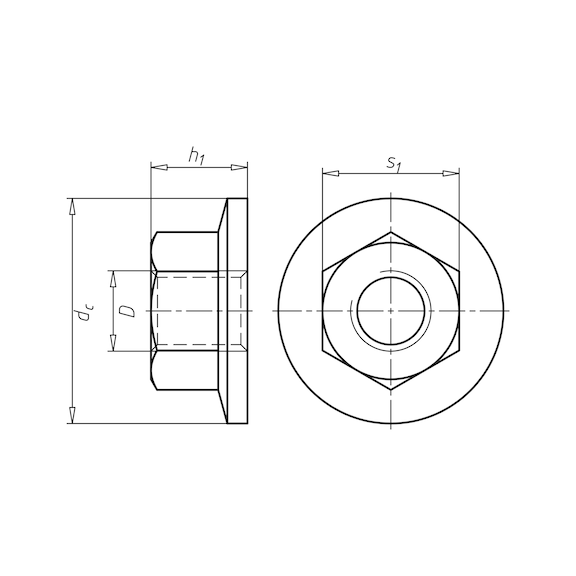

Technical Specifications
- Material: Steel
- Property class: I8I
- Surface: Zinc plated, blue passivated
- Thread type: Metric thread M6
- Flange diameter: 18 mm
- Height: 7.5 mm
- External drive: WS10
- Flange thickness: 1.5 mm
- Ward of key bit: 5.0 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7.5mm x 18mm x 18mm
- Weight: 0.02 kg
Key Features
- Lock washer and nut form a single unit for easy installation
- Curved spring washer can be freely rotated
- Streamlined ordering and storage as one piece
- Quicker and easier installation, especially for overhead work and hard-to-reach places
- Large contact surfaces for better distribution of tension
- Better overlap for large through holes and slotted holes
- Protects the workpiece surface and prevents paint damage and corrosion
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical fastening in machinery and equipment
- Automotive assembly and repair
- Construction and structural applications
- Electrical and electronic equipment assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Nut with Spring Lock Washer W 0379 is available for immediate purchase, ideal for mechanical, automotive, and construction fastening applications.
