Nylon 6 Black Cable Gland M12 | IP68 Weatherproof | Durable PA6 Material | 4-8mm Cable OD by Cabac
Cabac Standard Nylon 6 Black Gland M12 is a durable cable gland designed for general-purpose use, providing a reliable seal on cable sheaths in both indoor and outdoor applications with IP68 weatherproof rating and UV stabilisation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

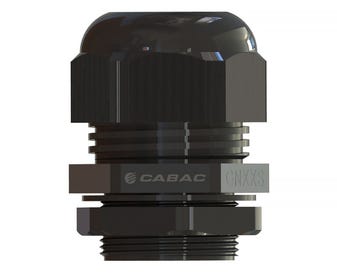

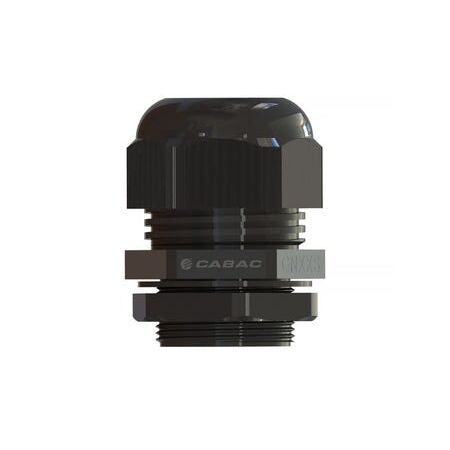

Product Name/Title: Cabac Standard Nylon 6 Black Gland M12 Cable OD 4-8mm
Brand: Cabac
SKU: GN12S
Alternatively Known As: Nylon Cable Gland M12, Black Nylon Cable Gland, PA6 Cable Gland, IP68 Cable Gland, Cable Gland for 4-8mm Cable
Technical Specifications
- Body Material: PA6 (Nylon 6)
- Seal Material: NBR
- Thread Size: M12
- Cable Outer Diameter Range: 4-8 mm
- Ingress Protection: IP68
- UV Stabilisation: Tested to ASTM G152:2016 for 500 hours
- Operating Temperature Range: -20°C to 100°C
- Compliance: CE, UL94 V2, RoHS 2.0, EN 14582:2016, Low Voltage Directive 2014/35/EU
- Dimensions (H x L x W): 28mm x 28mm x 19mm
- Weight: 0.02 kg
Key Features
- Manufactured from durable, halogen-free PA6 material
- Includes NBR seal and PA6 locknut for secure installation
- Weatherproof with an IP68 rating, ensuring excellent protection against dust and water ingress
- UV stabilised and tested to ASTM G152:2016, withstanding 500 hours of UV exposure
- Compliant with CE, UL94 V2, RoHS, and EN 14582:2016
- Low Voltage Directive compliant: 2014/35/EU
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- General-purpose electrical installations
- Indoor and outdoor environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free material reduces environmental impact
- Durable construction extends product life and reduces waste
- Compliant with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Standard Nylon 6 Black Gland M12 Cable OD 4-8mm is available now for immediate purchase. Ideal for general-purpose electrical installations in both indoor and outdoor environments.
