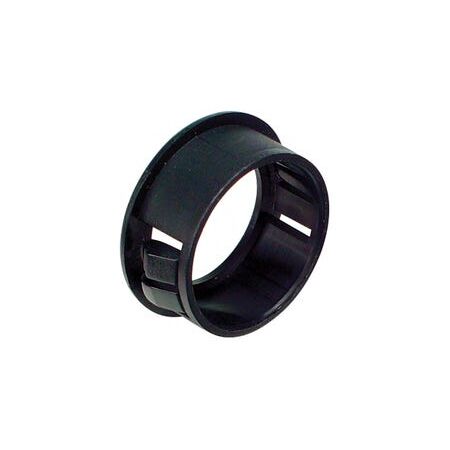

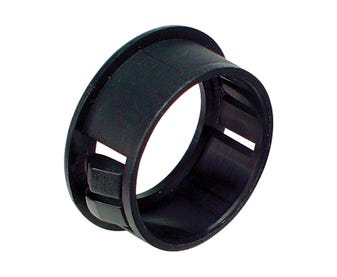

Nylon Bush 15.9mm | Quick Cable Protection | Self-Locking Teeth | Black by Cabac
Nylon bush with 15.9mm hole size and self-locking teeth—ideal for protecting cables in panel holes. Built for easy installation, with durable nylon material and smooth surface to prevent cable abrasions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Nylon Bush 15.9mm
Brand: Cabac
SKU: NSB16
Alternatively Known As: Nylon Cable Grommet, Cable Bush, Panel Hole Grommet, Cable Protector Bush
Technical Specifications
- Material: Nylon 66 UL, 94 V-2
- Colour: Black
- Chassis Thickness Compatibility: 0.8-3.2mm
- Hole Size (A): 15.9mm
- Inner Diameter (B): 12.2mm
- Outer Diameter (C): 18.6mm
- Height (L): 10.3mm
- Dimensions (H x L x W): 10.3mm x 18.6mm x 18.6mm
- Weight: 0.1 kg
Key Features
- Quick and simple cable protection from sharp edges in penetrations and panel holes
- Snaps into place with self-locking teeth for secure installation
- Available in a range of sizes
- Compatible with Cabac nylon plugs
- Smooth surface prevents cable cuts and abrasions
Professional Installation Requirements
- Installation is straightforward and can be performed by qualified electricians or trained personnel familiar with cable management systems.
Applications
- Protecting cables passing through panel holes from sharp edges
- Used in cable and wire management systems
- Suitable for new installations and retrofitting existing panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nylon material reduces need for frequent replacements
- Protects cables, reducing electronic waste from damaged wiring
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms.
Available Now
The Cabac Nylon Bush 15.9mm is available now for immediate purchase. Ideal for protecting cables in electrical panels and enclosures.
