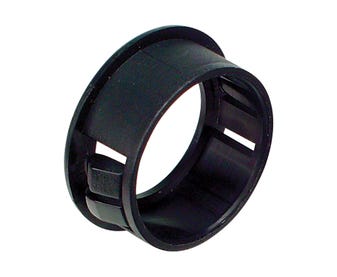

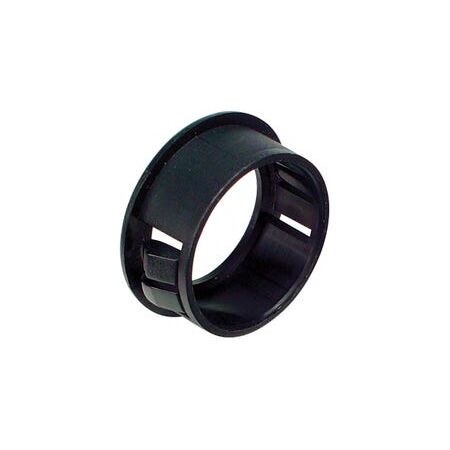

Nylon Bush 30mm | Flame Retardant | Self-Locking Teeth | Black by Cabac

BRAND: CABAC
SKU: NSB30
$15.40 List price: $18.60
+ −
30 Days Return Delivery Options
The Cabac Nylon Bush 30mm is a durable cable grommet designed to protect cables from sharp edges in panel holes, ensuring safe and easy cable management in electrical installations.

Product Name/Title: Nylon Bush 30mm

Brand: Cabac

SKU: NSB30

Alternatively Known As: Nylon Cable Grommet, Cable Bush, Panel Hole Grommet, Cable Protector Bushing

Technical Specifications
  • Material: Nylon 66 UL, 94 V-2 flame retardant
  • Colour: Black
  • Chassis Thickness Compatibility: 0.8-3.2mm
  • Hole Size (A): 29.7mm
  • Inner Diameter (B): 24.1mm
  • Outer Diameter (C): 32.3mm
  • Height (L): 11.5mm
  • Self-locking teeth for secure panel mounting
  • Dimensions (H x L x W): 11.5mm x 32.3mm x 32.3mm
  • Weight: 0.01 kg
Key Features
  • Quick and simple cable protection from sharp edges in panel holes
  • Snaps into place with self-locking teeth for secure installation
  • Available in a range of sizes
  • Compatible with Cabac nylon plugs
  • Smooth surface prevents cable cuts and abrasions
Professional Installation Requirements
  • Installation is straightforward and can be performed by qualified electricians or trained personnel to ensure proper fit and cable protection.
Applications
  • Protecting cables passing through panel holes in electrical and electronic enclosures
  • Cable management in industrial and commercial installations
  • Retrofitting cable protection in existing installations
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable nylon material reduces need for frequent replacements
  • Protects cables, reducing electronic waste from damaged wiring
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms.

Available Now

The Cabac Nylon Bush 30mm is available for immediate purchase, ideal for cable protection in electrical panels and industrial applications.
