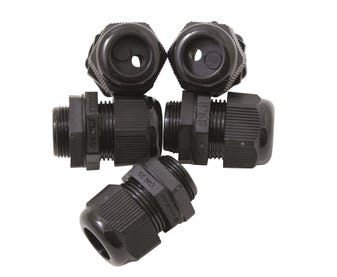

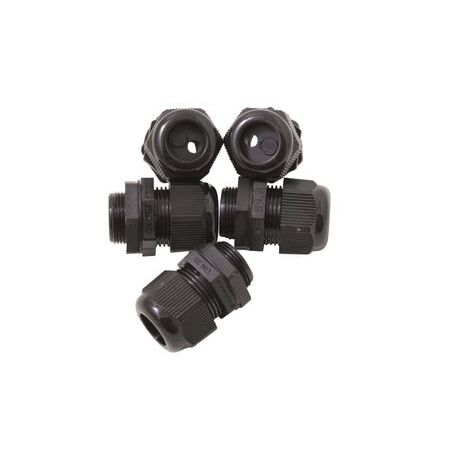

Nylon Cable Gland 9-18 with Solar Insert | IP68 Rated | Polyamide 6.6 | 2 Holes 6mm by Cabac

BRAND: CABAC
SKU: GN25SO-2-6MM
$31.20 List price: $37.80
+
Cabac Nylon Gland 9-18 with Solar Insert 2x6mm is a durable, IP68 rated cable gland made from Polyamide 6.6, designed for secure cable sealing and strain relief in demanding electrical and solar applications.

Product Name/Title: NYLON GLAND 9-18 WITH SOLAR INSERT 2x6MM

Brand: Cabac

SKU: GN25SO-2-6MM

Alternatively Known As: Nylon Cable Gland, IP68 Cable Gland, Polyamide Gland, Solar Cable Gland, Threaded Cable Gland

Technical Specifications
  • Material: Polyamide 6.6
  • Seal Type: EPDM
  • Cable Entry: 2 holes diameter 6mm
  • Ingress Protection: IP68 rated at 5 bar
  • Standards Compliance: DIN VDE 0619
  • Resistance: Medium resistance to vegetable oils and Benzol
  • Dimensions (H x L x W): 18mm x 30mm x 18mm
  • Weight: 0.05 kg
Key Features
  • Metric threaded glands made from Polyamide 6.6
  • Camera shutter cable sealing rated IP68 at 5 bar pressure
  • Medium resistance to vegetable oils and Benzol
  • Supplied complete with locknut and body seal
  • EPDM seal for two holes diameter 6mm
Professional Installation Requirements
  • Installation by a qualified electrician or technician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
  • Cable and wire management in electrical installations
  • Sealing and strain relief for cables in industrial and solar applications
  • Suitable for use in environments requiring IP68 rated cable glands
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste
  • Sealing prevents ingress of water and dust, protecting electrical systems and reducing environmental hazards
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cabac Nylon Gland 9-18 with Solar Insert 2x6mm is available for immediate purchase, ideal for cable management in industrial, solar, and electrical installations.
