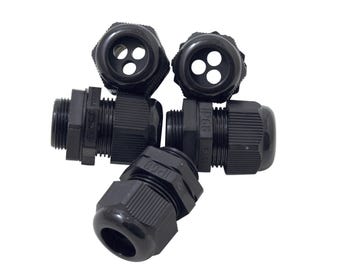

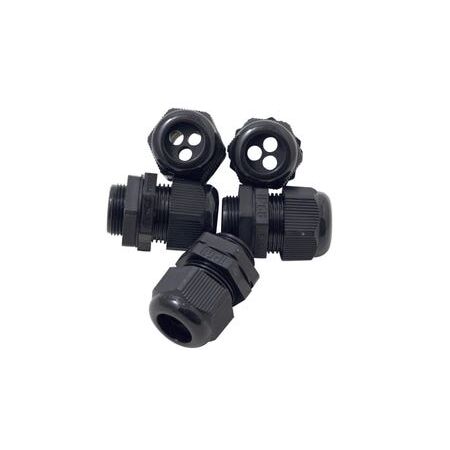

NYLON GLAND 9-18 WITH SOLAR INSERT 3x7MM

Nylon Cable Gland 9-18 with Solar Insert | IP68 Rated | Polyamide 6.6 | 7mm Seal by Cabac

BRAND: CABAC

SKU: GN25SO-3-7MM

$31.20 List price: $37.80

+ −

30 Days Return Delivery Options

Cabac Nylon Gland 9-18 with Solar Insert 3x7mm is a durable polyamide gland designed for cable sealing and strain relief, offering IP68 protection and resistance to oils and chemicals.

Description

Product Name/Title: NYLON GLAND 9-18 WITH SOLAR INSERT 3x7MM

Brand: Cabac

SKU: GN25SO-3-7MM

Alternatively Known As: Nylon Cable Gland, Polyamide Gland, IP68 Cable Gland, Solar Insert Gland

Technical Specifications

Material: Polyamide 6.6
Seal: EPDM with three holes diameter 7mm
Ingress Protection: IP68 rated at 5 bar
Resistance: Medium resistance to vegetable oils and Benzol
Thread Type: Metric threaded
Includes locknut and body seal
Dimensions (H x L x W): 18mm x 30mm x 18mm
Weight: 0.05 kg

Key Features

Metric threaded glands made from Polyamide 6.6
Camera shutter cable sealing rated IP68 at 5 bar pressure
Medium resistance to vegetable oils and Benzol
Supplied complete with locknut and body seal
EPDM seal with three holes diameter 7mm

Professional Installation Requirements

Installation by a qualified electrician or technician is recommended to ensure proper sealing and compliance with electrical standards.

Applications

Cable and wire management in electrical installations
Sealing and strain relief for camera shutter cables
Suitable for use in environments requiring IP68 rated protection

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Durable materials reduce the need for frequent replacements
Seals cables effectively to prevent ingress of water and contaminants, protecting electrical systems

Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms.

Available Now

The Cabac Nylon Gland 9-18 with Solar Insert 3x7mm is available for immediate purchase, ideal for cable management and sealing in electrical and solar installations.
