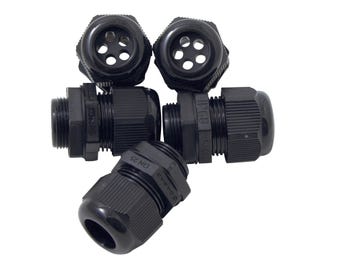

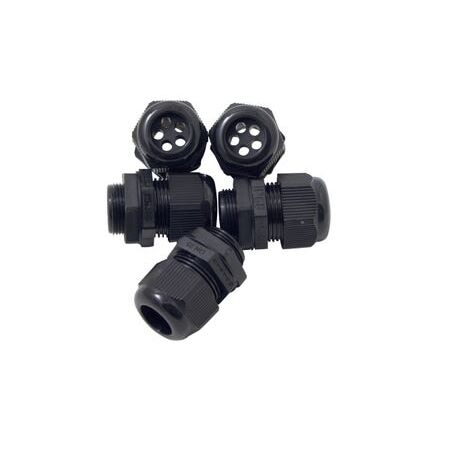

Nylon Cable Gland 9-18 with Solar Insert | IP68 Sealing | Medium Chemical Resistance | 5mm Diameter by Cabac
Cabac Nylon Gland 9-18 with Solar Insert 5x5mm is a durable polyamide cable gland providing IP68 sealing and medium chemical resistance, ideal for secure cable management in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NYLON GLAND 9-18 WITH SOLAR INSERT 5x5MM
Brand: Cabac
SKU: GN25SO-5-5MM
Alternatively Known As: Nylon Cable Gland, Polyamide Gland, IP68 Cable Gland, Camera Shutter Cable Gland
Technical Specifications
- Material: Polyamide 6.6
- Thread Type: Metric
- Sealing Rating: IP68, 5 bar
- Seal Material: Neoprene
- Seal Hole Diameter: 5mm
- Resistance: Medium resistance to vegetable oils and Benzol
- Standards: Conforms to DIN VDE 0619
- Dimensions (H x L x W): 18mm x 30mm x 18mm
- Weight: 0.05 kg
Key Features
- Metric threaded glands made from Polyamide 6.6
- Camera shutter cable sealing rated IP68
- Medium resistance to vegetable oils and Benzol
- Supplied complete with locknut and body seal
- Neoprene seal with five holes diameter 5mm
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Cable and wire management in electrical installations
- Sealing and strain relief for camera shutter cables
- Use in environments requiring IP68 rated cable glands
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable polyamide construction reduces need for frequent replacements
- Sealing prevents ingress of water and contaminants, extending cable life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Cabac Nylon Gland 9-18 with Solar Insert 5x5mm is available for immediate purchase, ideal for cable management in industrial and commercial electrical installations.
