Nylon Cable Gland | Halogen-Free PA6 | IP66 & IP68 Rated | Black by Cabac
Low-profile nylon cable gland for cable entry and sealing in general-purpose, OEM, and industrial applications. Wide clamping range suitable for non-armoured, portable, and tray cables. Halogen-free nylon (PA6) construction offers excellent corrosion resistance and durability. Temperature rated from -20°C to +100°C (normal) and -30°C to +150°C (short term). IP66 and IP68 ingress protection ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

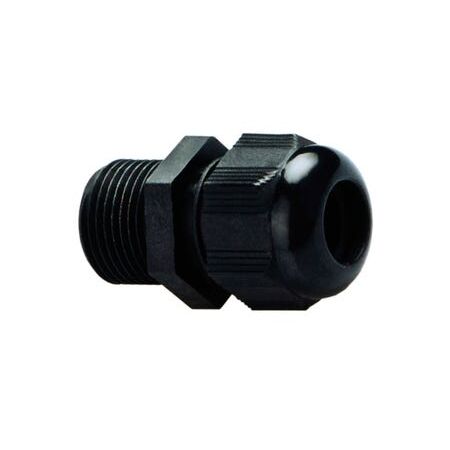

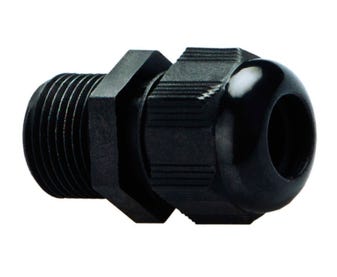

Product Name/Title: NYLON CG M75 TL25 OD48-55MM BLK
Brand: Cabac
SKU: NCG-M751B-GN
Alternatively Known As: Nylon Cable Gland, Cable Entry Gland, Cable Sealing Gland, Halogen-Free Nylon Gland
Technical Specifications
- Body Material: Halogen-free nylon (PA6)
- Seal Material: Chloroprene
- Operating Temperature: Normal -20°C to +100°C, Short term -30°C to +150°C
- Ingress Protection: IP66 and IP68 (5 bar for 30 minutes)
- NEMA 4 rating for environmental sealing
- Compliance: EN 62444, UL514B/CSA C22.2 No 18.3
- Meets RoHS and WEEE directives
- Low Voltage Directive (LVD) 2014/35/EU compliant
- Dimensions (H x L x W): 25mm x 75mm x 55mm
- Weight: 0.05 kg
Key Features
- Low-profile design for a neat and professional finish
- Wide cable clamping range for flexible application compatibility
- Corrosion-resistant, halogen-free nylon (PA6) construction
- Suitable for general-purpose, OEM, and industrial/commercial installations
- Available in black, grey, and light grey colours
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Panel building
- Light fixtures and housings
- Machine building
- Compatible with non-armoured, portable, and tray cables
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Constructed from halogen-free nylon reducing harmful emissions
- Durable and corrosion-resistant material extends product life and reduces waste
- Complies with RoHS and WEEE directives promoting environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac Nylon CG M75 TL25 OD48-55MM Black Cable Gland is available now for immediate purchase. Ideal for OEM, industrial, and commercial cable management applications.
