Trade Discount 17%

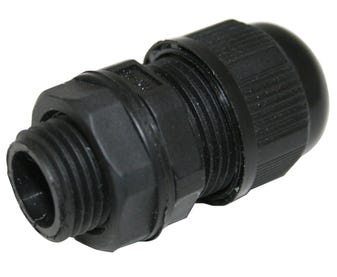

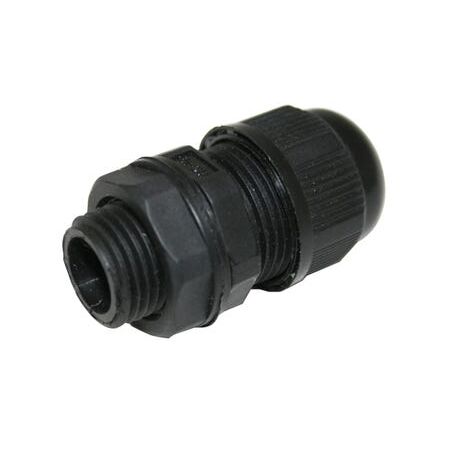

Nylon Cable Gland M12 | 4-6mm OD | IP68 Rated | Black by Cabac
Nylon cable gland with M12 thread and 4-6mm cable range—ideal for industrial and outdoor use. Built for durability, with IP68 sealing and UV stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac Premium Nylon 66 Black Gland M12 Cable OD 4-6mm
Brand: Cabac
SKU: GN12
Alternatively Known As: Nylon Cable Gland M12, PA66 Cable Gland, Metric Threaded Cable Gland, IP68 Cable Gland, Black Nylon Gland
Technical Specifications
- Cable Thread Size: M12
- Cable Range: 3-6mm
- Thread Width: 8mm
- Across Flats (A/F): 15mm
- Material: Halogen free PA 66 nylon
- IP Rating: IP68 rated to 5 bar pressure
- Chemical Resistance: Very resistant to petrol, diesel, mineral oils, strong alkalis, weak acids; medium resistance to vegetable oils and Benzol
- Continuous Operating Temperature: -40 to +100°C
- Plastic Deformation Temperature: 200°C
- Volume Resistivity: 1 x 10^12 ohm cm
- Tensile Strength: 110 N/mm² working, 2240 N/mm² ultimate
- Density: 1.35 g/cm³
- Breakdown Voltage: 60 kV/mm
- Dimensions (H x L x W): 20mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- Manufactured from halogen free PA 66 nylon
- Built-in strain relief blades to protect cable
- Water resistant and UV stabilised for outdoor exposure
- Fluid tight seal with camera shutter principle
- IP68 rated protection to 5 bar pressure
- Excellent chemical resistance
- Long metric thread to suit Australian requirements
- Supplied complete with locknut and EPDM rubber washer
- Optimal gripping wrench area for improved handling
- Trapezoidal thread to prevent thread jumping
- Quick high torque tightening with reduced effort
Professional Installation Requirements
- Installation should be performed by qualified personnel. Do not overtighten to avoid seal damage. Use appropriate sealing compound on body thread where IP rating is critical. Optional neoprene seals recommended for equipment interface sealing.
Applications
- Machine installation
- Construction
- Measuring and regulating equipment
- Site installation
- Use with light metal enclosures (consult technical staff)
Standards & Compliance
- Complies with DIN VDE 0619
- IP68 5 bar rated sealing
Environmental Benefits
- Halogen free material reduces environmental impact
- Durable UV stabilised nylon extends product life reducing waste
- Chemical resistance reduces need for frequent replacements
Warranty Information
Warranty details available upon request from Cabac; typically covers manufacturing defects.
Available Now
The Cabac Premium Nylon 66 Black Gland M12 Cable OD 4-6mm is available for immediate purchase. Ideal for industrial, construction, and machine installation applications.
