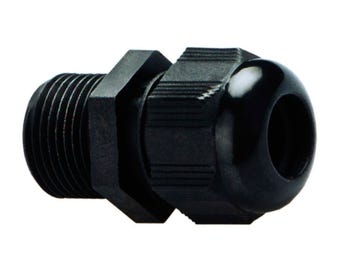

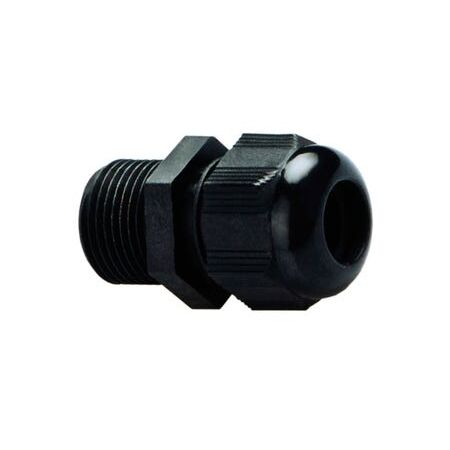

Nylon Cable Gland M12 | IP66/IP68 Protection | Halogen-Free Nylon | Wide Clamping Range | Black by Cabac
Cabac Nylon CG M12 TL8 OD3-6.5MM Black Cable Gland offers a low-profile, corrosion-resistant solution for cable entry and sealing in general-purpose, OEM, and industrial applications with wide clamping range and IP66/IP68 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NYLON CG M12 TL8 OD3-6.5MM BLK
Brand: Cabac
SKU: NCG-M122B-GN
Alternatively Known As: Nylon Cable Gland M12, Cable Entry Gland, Cable Sealing Gland, Halogen-Free Nylon Cable Gland
Technical Specifications
- Material Body: Halogen-free nylon (PA6)
- Seal Material: Chloroprene
- Operating Temperature Normal: -20°C to +100°C
- Operating Temperature Short Term: -30°C to +150°C
- Ingress Protection: IP66 and IP68 (5 bar for 30 minutes)
- NEMA 4 rating for environmental sealing
- Compliance: EN 62444, UL514B/CSA C22.2 No 18.3
- Meets RoHS and WEEE directives
- Low Voltage Directive (LVD) 2014/35/EU compliant
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.05 kg
Key Features
- Low-profile design for a neat and professional finish
- Wide cable clamping range for flexible application compatibility
- Corrosion-resistant, halogen-free nylon (PA6) construction
- Suitable for general-purpose, OEM, and industrial/commercial installations
- Available in black, grey, and light grey colours
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Panel building
- Light fixtures and housings
- Machine building
- Compatible with non-armoured, portable, and tray cables
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Constructed from halogen-free nylon (PA6) reducing harmful chemical impact
- Meets RoHS and WEEE directives for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty policy for details.
Available Now
The Cabac Nylon CG M12 TL8 OD3-6.5MM Black Cable Gland is available for immediate purchase, ideal for OEM, industrial, and commercial cable management applications.
