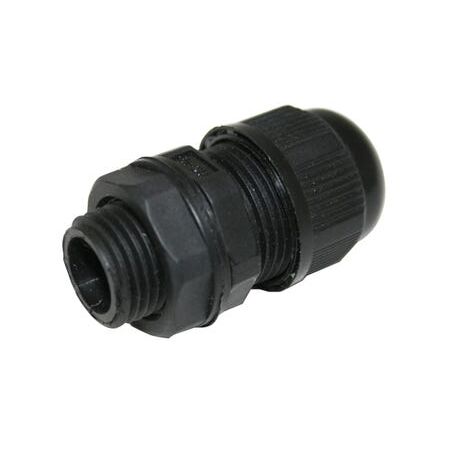

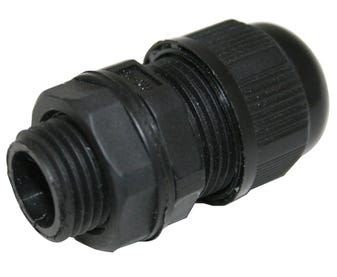

Nylon Cable Gland M16 | 5-10mm OD | IP68 Rated | Black by Cabac
Nylon cable gland M16 with 5-10mm outer diameter and IP68 rating—ideal for industrial and construction applications. Built for durability, with excellent chemical resistance and UV stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac Premium Nylon 66 Black Gland M16 Cable OD 5-10mm
Brand: Cabac
SKU: GN16
Alternatively Known As: Nylon Cable Gland M16, PA66 Cable Gland, Metric Nylon Gland, IP68 Cable Gland, Black Nylon Gland M16
Technical Specifications
- Cable Thread Size: M16
- Cable Outer Diameter Range: 5-10mm
- Thread Width: 15mm
- Across Flats (A/F): 21.8mm
- Material: Halogen free PA 66 nylon
- IP Rating: IP68 rated to 5 bar pressure
- Chemical Resistance: Very resistant to petrol, diesel, mineral oils, strong alkalis, weak acids; medium resistance to vegetable oils and Benzol
- Continuous Operating Temperature: -40 to +100°C
- Plastic Deformation Temperature: 200°C
- Volume Resistivity: 1 x 10^12 ohm cm
- Tensile Strength: 110 N/mm² working, 2240 N/mm² ultimate
- Density: 1.35 g/cm³
- Breakdown Voltage: 60 kV/mm
- Max Torque: Cap - 6Nm; Nut - 2.82Nm
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.1 kg
Key Features
- Manufactured from halogen free PA 66 nylon
- Built-in strain relief blades to protect the cable
- Water resistant and UV stabilised for outdoor exposure
- Fluid tight seal with camera shutter principle delivering IP68 rated protection to 5 bar pressure
- Excellent chemical resistance
- Long metric thread to suit Australian requirements
- Supplied complete with locknut and EPDM rubber washer
- Optimal gripping wrench area for improved handling
- Trapezoidal thread prevents thread jumping
- Quick high torque tightening with reduced effort
Professional Installation Requirements
- Installation should be performed by qualified personnel. Do not overtighten to avoid seal damage. Use appropriate sealing compound on body thread where IP rating is critical. Optional neoprene seals recommended for equipment interface sealing.
Applications
- Machine installation
- Construction
- Measuring and regulating equipment
- Site installation
- Use with light metal enclosures (consult technical staff)
Standards & Compliance
- Complies with DIN VDE 0619
- IP68 5 bar protection
Environmental Benefits
- Halogen free material reduces environmental impact in case of fire
- Durable UV stabilised design extends product life reducing waste
Warranty Information
Warranty details available upon request from Cabac; typically covers manufacturing defects.
Available Now
The Cabac Premium Nylon 66 Black Gland M16 Cable OD 5-10mm is available for immediate purchase. Ideal for industrial, construction, and site installation applications.
