Nylon Cable Gland M16 | IP68 Weatherproof | Halogen-Free PA6 | 5-10mm OD by Cabac
Cabac Standard Nylon 6 Black Gland M16 is a durable, weatherproof cable gland designed for reliable sealing of cable sheaths in indoor and outdoor electrical installations. Made from halogen-free PA6 with IP68 protection and UV stabilisation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

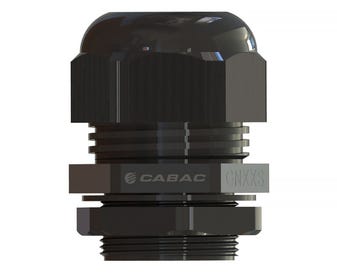

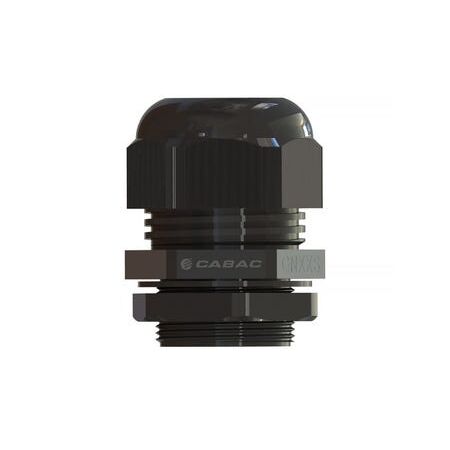

Product Name/Title: Cabac Standard Nylon 6 Black Gland M16 Cable OD 5-10mm
Brand: Cabac
SKU: GN16S
Alternatively Known As: Nylon Cable Gland M16, Black Nylon Cable Gland, PA6 Cable Gland, IP68 Cable Gland, Cable Gland for 5-10mm Cable
Technical Specifications
- Body Material: PA6 (Nylon 6)
- Seal Material: NBR
- Thread Size: M16
- Cable Outer Diameter Range: 5-10 mm
- Ingress Protection: IP68
- UV Stabilisation: Tested to ASTM G152:2016 for 500 hours
- Operating Temperature Range: -20°C to 100°C
- Compliance: CE, UL94 V2, RoHS 2.0, EN 14582:2016, Low Voltage Directive 2014/35/EU
- Dimensions (H x L x W): 15mm x 15mm x 21.8mm
- Weight: 0.02 kg
Key Features
- Manufactured from durable, halogen-free PA6 material
- Includes NBR seal and PA6 locknut for secure installation
- Weatherproof with an IP68 rating, ensuring excellent protection against dust and water ingress
- UV stabilised and tested to ASTM G152:2016, withstanding 500 hours of UV exposure
- Compliant with CE, UL94 V2, RoHS, and EN 14582:2016
- Low Voltage Directive compliant: 2014/35/EU
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- General-purpose electrical installations
- Indoor and outdoor environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free material reduces harmful emissions in case of fire
- Durable construction extends product life, reducing waste
- UV stabilisation ensures long-term outdoor use without degradation
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
Cabac Standard Nylon 6 Black Gland M16 Cable OD 5-10mm is available for immediate purchase, ideal for general-purpose electrical installations in both indoor and outdoor environments.
