Nylon Cable Gland M16 Quick Connect | IP66/IP68 | Halogen-Free & UV Resistant | Black by Cabac

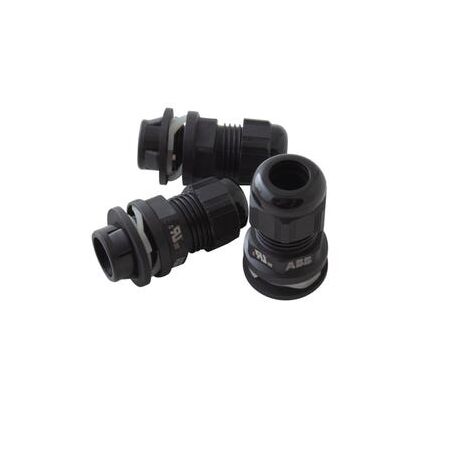

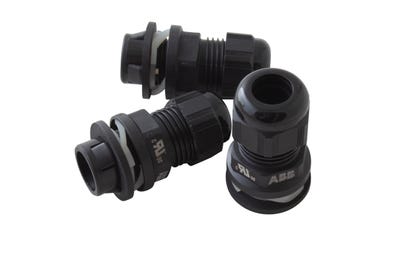

The Cabac GLAND QUICK CONNECT NYLON M16 5-10MM BLACK is a single-piece nylon cable gland designed for fast fitting without internal enclosure access. It provides IP66/IP68 ingress protection and is suitable for non-armoured, portable, and tray cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLAND QUICK CONNECT NYLON M16 5-10MM BLACK
Brand: Cabac
SKU: NPG-M161B
Alternatively Known As: Nylon Cable Gland M16, Quick Connect Cable Gland, IP68 Cable Gland, Halogen-Free Nylon Gland
Technical Specifications
- Ingress Protection: IP66/IP68 (5 bar, 30 minutes)
- Operating Temperature: Normal -20°C to +100°C, Short-term -30°C to +150°C
- Material: Halogen-free Nylon (PA6) body, Chloroprene seals
- Colour: Black (RAL 9005)
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.02 kg
Key Features
- Single-piece construction; no locknut required
- Quick and efficient installation without internal enclosure access
- Low internal profile for compact applications
- Corrosion-resistant and halogen-free nylon (PA6) construction
- UV resistant for outdoor applications
Professional Installation Requirements
- Professional installation recommended to ensure proper sealing and compliance with IP ratings.
Applications
- General-purpose use
- Panel builders and volume installers
- Supports non-armoured, portable, and tray cable types
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from halogen-free materials reducing harmful emissions
- UV resistant for long-lasting outdoor use, reducing replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The Cabac GLAND QUICK CONNECT NYLON M16 5-10MM BLACK is available for immediate purchase, ideal for panel builders and high-volume installations.
