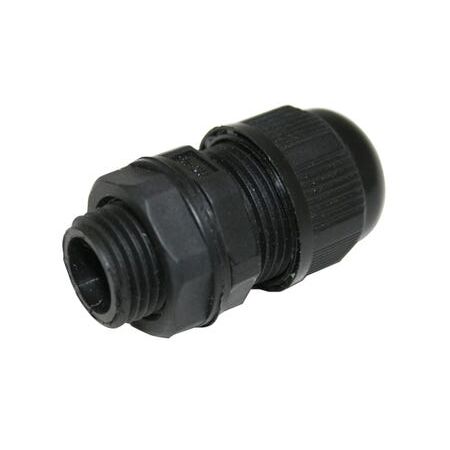

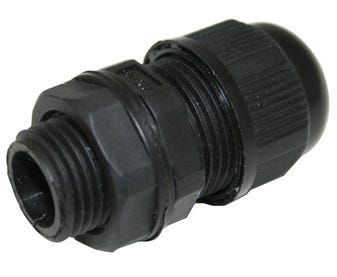

Nylon Cable Gland M20 | 8-13mm OD | IP68 Rated | UV Stabilised by Cabac
Nylon cable gland M20 with 8-13mm cable range and IP68 rating—ideal for industrial and outdoor applications. Built for durability, with UV stability and excellent chemical resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac Premium Nylon 66 Black Gland M20 Cable OD 8-13mm
Brand: Cabac
SKU: GN20
Alternatively Known As: Nylon Cable Gland M20, Metric Nylon Gland, IP68 Cable Gland, PA66 Cable Gland, Black Nylon Cable Gland
Technical Specifications
- Cable Thread Size: M20
- Cable Range: 8-13mm
- Material: Halogen free PA 66 nylon
- IP Rating: IP68 rated to 5 bar pressure
- Chemical Resistance: Very resistant to petrol, diesel, mineral oils, strong alkalis, weak acids; medium resistance to vegetable oils and Benzol
- Continuous Operating Temperature: -40 to +100°C
- Plastic Deformation Temperature: 200°C
- Volume Resistivity: 1 x 10^12 ohm cm
- Tensile Strength: 110 N/mm² working, 2240 N/mm² ultimate
- Density: 1.35 g/cm³
- Breakdown Voltage: 60 kV/mm
- Max Torque: cap - 5.4Nm; nut - 2.82Nm
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.1 kg
Key Features
- Manufactured from halogen free PA 66 nylon
- Built-in strain relief blades to protect cable
- Water resistant and UV stabilised for outdoor exposure
- Fluid tight seal with camera shutter principle
- IP68 rated protection to 5 bar pressure
- Excellent chemical resistance
- Long metric thread to suit Australian requirements
- Supplied complete with locknut and EPDM rubber washer
- Optimal gripping wrench area for improved handling
- Trapezoidal thread prevents thread jumping
- Optional neoprene seals for equipment interface sealing
Professional Installation Requirements
- Installation should be performed by qualified personnel. Do not overtighten to avoid seal damage. Use appropriate sealing compound on body thread where IP rating is critical. Optional neoprene seals recommended for equipment interface sealing.
Applications
- Machine installation
- Construction
- Measuring and regulating equipment
- Site installation
- Use with light metal enclosures (consult technical staff)
Standards & Compliance
- Complies with DIN VDE 0619
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free material reduces harmful emissions in case of fire
- Durable UV stabilised construction extends product life reducing waste
Warranty Information
Warranty information not specified; please consult Cabac or supplier for details.
Available Now
The Cabac Premium Nylon 66 Black Gland M20 Cable OD 8-13mm is available for immediate purchase. Ideal for industrial, construction, and machine installation applications.
