Nylon Cable Gland M25 | IP66/IP68 | Quick Connect & Halogen-Free | Black by Cabac

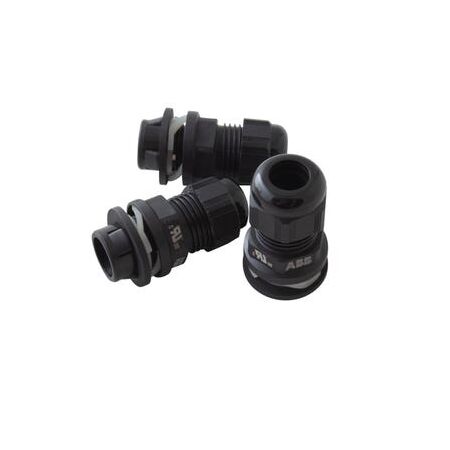

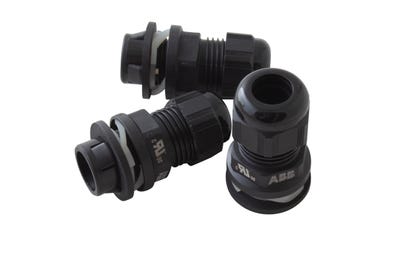

The Cabac GLAND QUICK CONNECT NYLON M25 11-17MM BLACK is a single-piece nylon cable gland designed for fast fitting without internal enclosure access. It offers IP66/IP68 ingress protection and is suitable for non-armoured, portable, and tray cables with UV-resistant and halogen-free construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLAND QUICK CONNECT NYLON M25 11-17MM BLACK
Brand: Cabac
SKU: NPG-M251B
Alternatively Known As: Nylon Cable Gland M25, Quick Connect Cable Gland, IP68 Cable Gland, Halogen-Free Cable Gland
Technical Specifications
- Ingress Protection: IP66/IP68 (5 bar, 30 minutes)
- Operating Temperature: Normal -20°C to +100°C, Short-term -30°C to +150°C
- Material: Nylon (PA6) body, halogen-free; Chloroprene seals
- Colour: Black (RAL 9005)
- Dimensions (H x L x W): 30mm x 40mm x 30mm
- Weight: 0.05 kg
Key Features
- Single-piece construction; no locknut required
- Quick and efficient installation without internal enclosure access
- Low internal profile for compact applications
- Corrosion-resistant and halogen-free nylon (PA6) construction
- UV resistant for outdoor applications
Professional Installation Requirements
- Professional installation by a qualified electrician or panel builder is recommended to ensure proper sealing and compliance with IP ratings.
Applications
- General-purpose use
- Ideal for panel builders and volume installers
- Supports non-armoured, portable, and tray cable types
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free material reduces harmful emissions in case of fire
- RoHS-compliant, ensuring restriction of hazardous substances
- Complies with WEEE Directive promoting recycling and waste reduction
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac GLAND QUICK CONNECT NYLON M25 11-17MM BLACK is available now for immediate purchase. Ideal for panel builders and high-volume installations requiring fast, reliable cable gland solutions.
