Home/Electrical/Accessories/Glands/Nylon Cable Gland M32 | 15-24mm OD | IP68 Rated | Black by Cabac

Trade Discount 18%

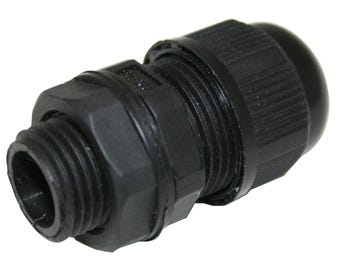

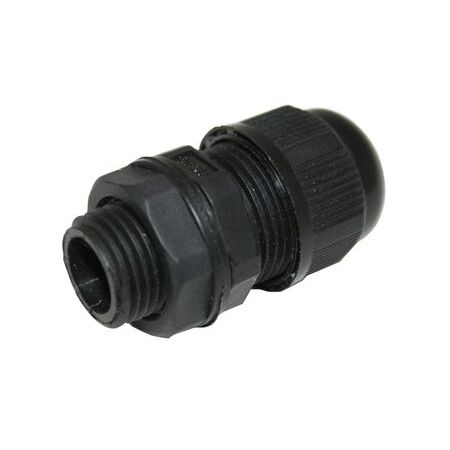

Cabac Premium Nylon 66 Black Gland M32 Cable OD 15-24mm

Nylon Cable Gland M32 | 15-24mm OD | IP68 Rated | Black by Cabac

BRAND: CABAC

SKU: GN32

$11.20 List price: $13.60

+ −

30 Days Return Delivery Options

Nylon cable gland with M32 thread and 15-24mm cable range—ideal for industrial and construction applications. Built for durability, with IP68 rating and excellent chemical resistance.

Description

Product Name/Title: Cabac Premium Nylon 66 Black Gland M32 Cable OD 15-24mm

Brand: Cabac

SKU: GN32

Alternatively Known As: Nylon Cable Gland M32, PA66 Cable Gland, IP68 Nylon Gland, Metric Thread Cable Gland, Black Nylon Cable Gland

Technical Specifications

Cable Thread Size: M32
Cable Range: 15-24mm
Thread Width: 15mm
A/F (Across Flats): 41.5mm
Material: Halogen free PA 66 nylon
IP Rating: IP68 rated to 5 bar pressure
Chemical Resistance: Very resistant to petrol, diesel, mineral oils, strong alkalis, weak acids; medium resistance to vegetable oils and Benzol
Continuous Operating Temperature: -40 to +100°C
Plastic Deformation Temperature: 200°C
Volume Resistivity: 1 x 10^12 ohm cm
Tensile Strength: 110 N/mm² working, 2240 N/mm² ultimate
Density: 1.35 g/cm³
Breakdown Voltage: 60 kV/mm
Supplied with locknut and EPDM rubber washer
Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
Weight: 0.1 kg

Key Features

Manufactured from halogen free PA 66 nylon
Built-in strain relief blades to protect cable
Water resistant and UV stabilised for outdoor use
Fluid tight seal with camera shutter principle
IP68 rated protection to 5 bar pressure
Excellent chemical resistance
Long metric thread to suit Australian requirements
Supplied complete with locknut and EPDM rubber washer
Optimal gripping wrench area for improved handling
Trapezoidal thread to prevent thread jumping
Quick high torque tightening with reduced effort

Professional Installation Requirements

Installation should be performed by qualified personnel. Do not overtighten to avoid seal damage. Use appropriate sealing compound on body thread where IP rating is critical. Optional neoprene seals may be used for equipment interface sealing.

Applications

Machine installation
Construction
Measuring and regulating equipment
Site installation
Use with light metal enclosures (consult technical staff)

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

UV stabilised material extends product life reducing waste
Halogen free nylon reduces environmental impact
Durable construction minimizes replacement frequency

Warranty Information

Warranty information not specified; please consult Cabac for details.

Available Now

The Cabac Premium Nylon 66 Black Gland M32 Cable OD 15-24mm is available for immediate purchase. Ideal for industrial, construction, and site installation applications requiring durable and reliable cable sealing.
