Nylon Cable Gland M63 | IP68 Weatherproof | UV Stabilised | 37-44mm by Cabac
Cabac Standard Nylon 6 Black Gland M63 is a durable cable gland designed for general-purpose use, providing a reliable seal on cable sheaths with IP68 weatherproof rating and UV stabilisation for indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

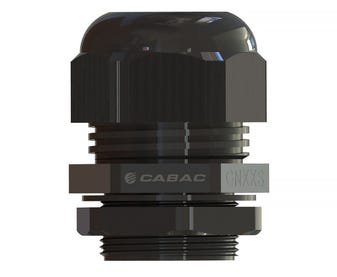

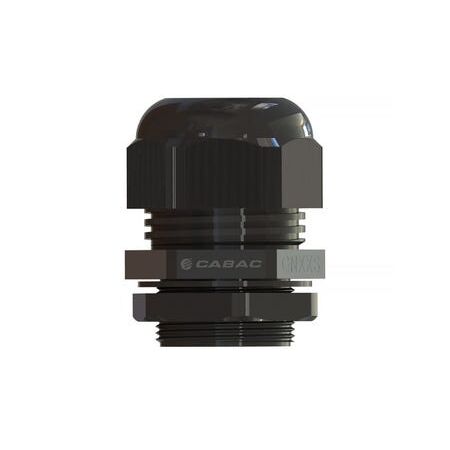

Product Name/Title: Cabac Standard Nylon 6 Black Gland M63 Cable OD 37-44mm
Brand: Cabac
SKU: GN63S
Alternatively Known As: Nylon Cable Gland M63, Black Nylon Cable Gland, PA6 Cable Gland, IP68 Cable Gland, Weatherproof Cable Gland
Technical Specifications
- Body Material: PA6 (Polyamide 6)
- Seal Material: NBR (Nitrile Butadiene Rubber)
- Ingress Protection: IP68
- UV Stabilisation: Tested to ASTM G152:2016 for 500 hours UV exposure
- Operating Temperature Range: -20°C to 100°C
- Compliance: CE, UL94 V2, RoHS 2.0, EN 14582:2016, Low Voltage Directive 2014/35/EU
- Cable Outer Diameter Range: 37-44 mm
- Thread Length: 18 mm
- Across Flats (A/F): 65 mm
- Dimensions (H x L x W): 65mm x 65mm x 65mm
- Weight: 0.5 kg
Key Features
- Manufactured from durable, halogen-free PA6 material
- Includes NBR seal and PA6 locknut for secure installation
- Weatherproof with an IP68 rating, ensuring excellent protection against dust and water ingress
- UV stabilised and tested to ASTM G152:2016, withstanding 500 hours of UV exposure
- Compliant with CE, UL94 V2, RoHS, and EN 14582:2016
- Low Voltage Directive compliant: 2014/35/EU
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- General-purpose electrical installations
- Indoor and outdoor environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free material reduces harmful emissions in case of fire
- Durable and UV stabilised for long service life, reducing replacement waste
Warranty Information
Warranty information not specified; typically covered by manufacturer standard warranty.
Available Now
The Cabac Standard Nylon 6 Black Gland M63 Cable OD 37-44mm is available now for immediate purchase. Ideal for general-purpose electrical installations in both indoor and outdoor environments.
