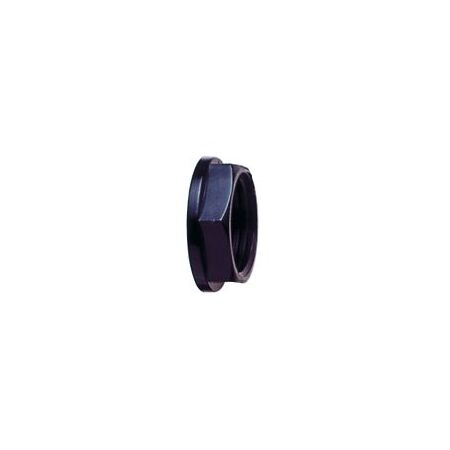

Nylon Locknut M16 Black Adaptaflex

BRAND: CABAC
SKU: LNPB/M16
$1.80 List price: $2.40
+ −
30 Days Return Electricians Unlock Trade Access
Adaptaflex nylon 6 locknut features M16 thread, black colour, -40 to +120 deg C rating and halogen-free material. Ideal for securing nylon fittings in knockouts.

Alternatively Known As: M16 Nylon Locknut, Adaptaflex Cable Conduit Locknut, Polyamide 6 Locknut

Technical Specifications
  • Manufacturer Part Number: LNPB/M16
  • Thread Size: M16 x 1.5
  • Thread Type: Metric
  • Material: Polyamide (Nylon) 6
  • Colour: Black
  • Application: Securing non-metallic fittings into knockouts
  • Temperature Range: -40°C to +120°C static; -5°C to +120°C dynamic
  • UV Protection: Very high
  • Fire Performance: Low smoke and halogen-free; UL94 V2 self-extinguishing
  • Pack Quantity: 10 pieces
  • Compliance: RoHS3, REACH 247, TSCA Section 6(h) and POPs compliant
  • Dimensions (H x L x W): 6.7mm x 22mm x 22mm
  • Weight: 0.1 kg
Key Features
  • Designed for use with Adaptaflex polyamide threaded fittings
  • Secures conduit fittings through panel knockouts
  • M16 x 1.5 metric thread
  • Polyamide 6 construction with medium impact resistance
  • Black finish with very high UV protection
  • Low-smoke, halogen-free material
  • Supplied in packs of 10
Applications
  • Securing nylon conduit fittings in electrical enclosure knockouts
  • Flexible non-metallic conduit installations
  • Cable protection systems and electrical cable management
  • Industrial control panels and equipment enclosures
Standards & Compliance
  • Relevant conduit-system requirements are covered by AS 61386.1:2015, formerly AS/NZS 61386.1:2015; product-specific certification for this locknut was not identified.
Environmental Benefits
  • RoHS3, REACH, TSCA and POPs compliance supports restricted-substance requirements.
  • Halogen-free, low-smoke material can reduce hazardous smoke and corrosive gas generation in fire conditions.
  • Nylon construction is durable and resistant to UV exposure, helping extend service life and reduce replacement waste.
Warranty Information

ABB/Adaptaflex publishes general warranty and extended-warranty information for selected ABB low-voltage products, but a specific warranty period for the LNPB/M16 locknut was not published. Confirm applicable warranty terms with the authorised distributor.

Available Now

Available through Adaptaflex/ABB and authorised Australian electrical and cable-management distributors.
