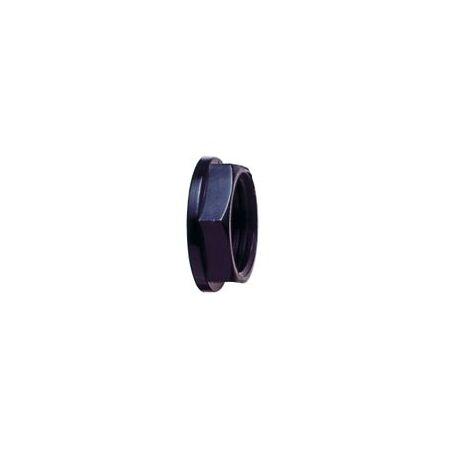

Nylon Locknut M25 Black Adaptaflex

BRAND: CABAC
SKU: LNPB/M25
$3.50 List price: $4.70
+ −
30 Days Return Electricians Unlock Trade Access
Adaptaflex nylon 6 locknut features M25 thread, black colour, -40 to +120 deg C rating and halogen-free material. Ideal for securing nylon fittings in knockouts.

Alternatively Known As: M25 Nylon Locknut, Polyamide 6 Locknut, Non-Metallic Conduit Locknut, LNPB/M25

Technical Specifications
  • Part Number: LNPB/M25
  • Thread Size: M25
  • Thread Pitch: 1.5 mm
  • Material: Polyamide (Nylon) 6
  • Colour: Black
  • Temperature Range, Static Application: -40°C to +120°C
  • Temperature Range, Dynamic Application: -5°C to +120°C
  • Impact Resistance: Medium
  • UV Protection: Very high
  • Fire Performance: UL94 V2, self-extinguishing, low smoke and halogen-free
  • Environmental Compliance: RoHS3, REACH and POPs compliant
  • Dimensions (H x L x W): 9mm x 39mm x 39mm
  • Weight: 0.1 kg
Key Features
  • Secures Adaptaflex non-metallic fittings into knockouts
  • Compatible with Adaptaflex polyamide threaded fittings
  • Black nylon 6 construction
  • Halogen-free and self-extinguishing material
  • High UV resistance for demanding installation environments
  • Suitable for static applications from -40°C to +120°C
Applications
  • Securing nylon conduit fittings into electrical enclosure knockouts
  • Flexible non-metallic conduit systems
  • Commercial and industrial cable protection installations
  • Machinery, control panel, data cabling and electrical cable management
Environmental Benefits
  • Halogen-free construction can reduce corrosive and toxic halogenated emissions in fire conditions
  • RoHS3, REACH and POPs compliance supports restricted-substance management
  • Durable nylon construction and high UV resistance can extend service life and reduce replacement waste
Warranty Information

No product-specific warranty duration was published. Coverage is subject to ABB/Adaptaflex warranty terms and applicable Australian Consumer Law rights; confirm with the supplying distributor.

Available Now

Available through Adaptaflex/ABB and authorised Australian electrical and cable-management distributors.
