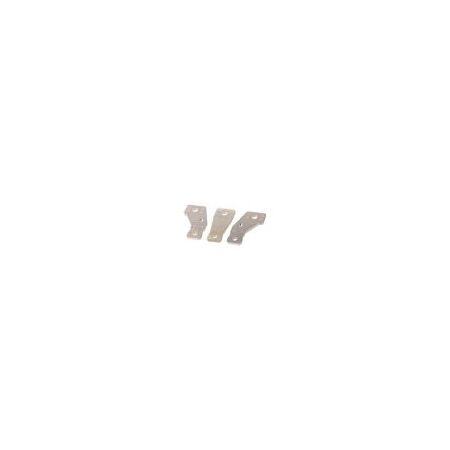

NZM3 Connection Width Extension | 630A Rating | Three-Pole Design | Copper Terminal Capacity by Eaton
Enhance your NZM3 molded case circuit breaker with this connection width extension, featuring a 630A rating and three-pole design. Ideal for electrical switchgear assemblies and industrial applications, it supports copper strips and flexible cables, ensuring reliable performance and compliance with CSA, UL, and CE standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NZM3 Connection Width Extension | 630A Rating | Three-Pole Design | Copper Terminal Capacity by Eaton
Brand: Eaton
SKU: Y7-100514
Alternatively Known As: NZM3 connection width extension, NZM3 terminal extension, Molded Case Circuit Breaker accessory
Technical Specifications
- Amperage Rating: 630 A
- Number of Poles: Three-pole
- Terminal Capacity (Copper Strip): 10 segments of 50 mm x 1 mm (2x)
- Terminal Capacity (Flexible Cable): 300 mm² (2x), 500 AWG/kcmil (2x)
- Terminal Capacity (Copper Busbar): 10 mm x 50 mm (2x)
- Frame: NZM3
- Type: Accessory Connection width extension Terminal
- Special Features: One hole
- Certifications: CSA, UL, CE, IEC60947
- Dimensions (H x L x W): 80mm x 6mm x 188mm
- Weight: 0.75 kg
Key Features
- Connection width extension for NZM3 molded case circuit breaker
- Three-pole design suitable for copper cable lugs
- Terminal capacity supports copper strips, flexible cables, and busbars
- Meets product standard requirements for corrosion resistance, thermal stability, and UV resistance
- Certified to CSA, UL, CE, and IEC standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with NZM3 series circuit breakers and switchgear assembly standards.
Applications
- Electrical switchgear assemblies requiring connection width extension
- Industrial and commercial electrical distribution systems
- Panel builders integrating NZM3 series circuit breakers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Complies with RoHS standards limiting hazardous substances
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty terms as per Eaton's standard product warranty policy.
Available Now
The Eaton Moeller NZM3-XKV70 connection width extension is available for immediate purchase, ideal for electrical panel builders and industrial electrical installations.
