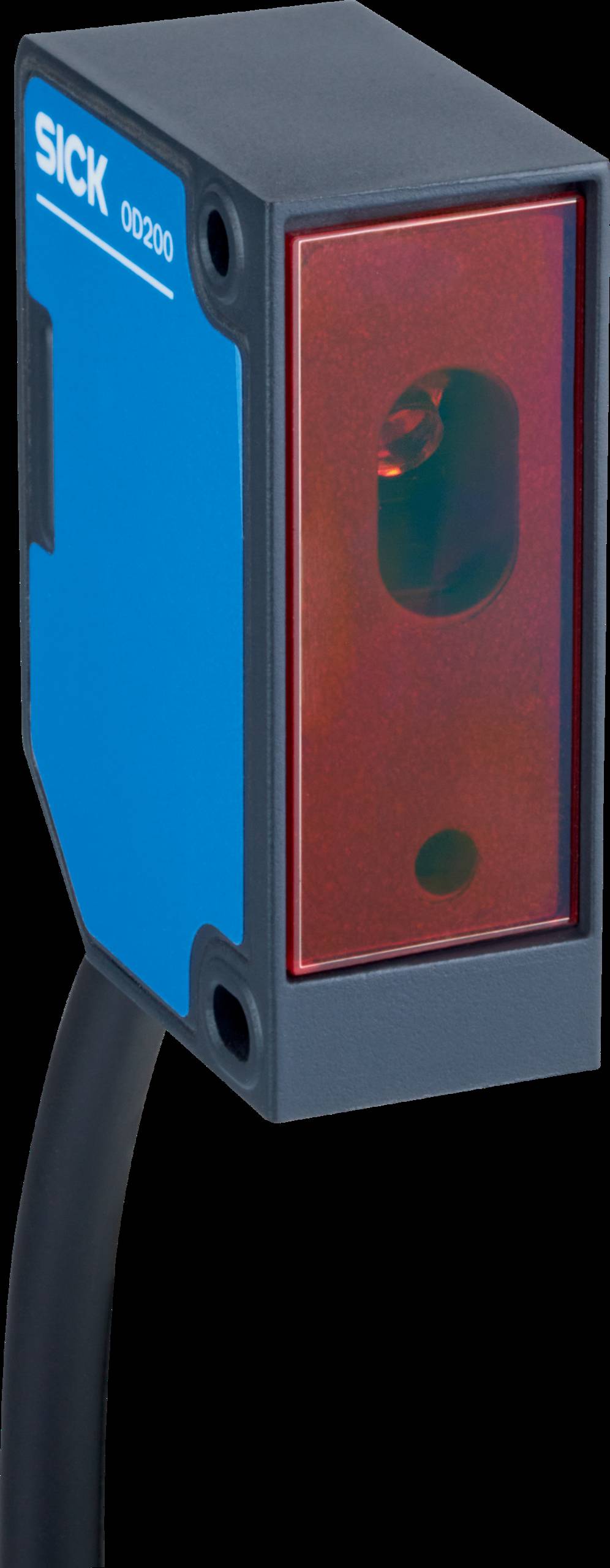

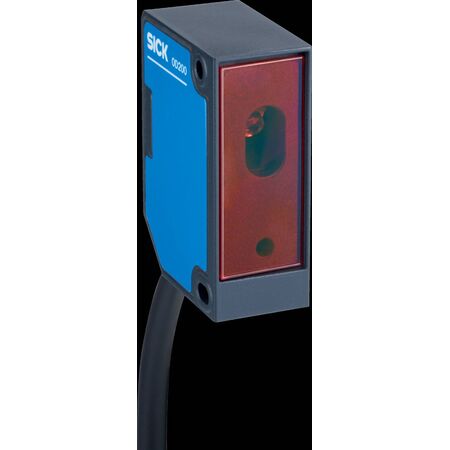

OD200 Compact Displacement Sensor | 35mm to 65mm Range | 2µm Repeatability | Laser Class 1 | by SICK
The OD200 Compact Displacement Sensor delivers precise micrometer-range distance measurements, with a measuring range of 35mm to 65mm and repeatability from 2µm to 20µm. Ideal for industrial automation and quality control, this sensor features an intuitive OLED display for easy configuration and operates with both analog and digital outputs, ensuring seamless integration into existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: OD200 Compact Displacement Sensor | 35mm to 65mm Range | 2µm Repeatability | Laser Class 1 | by SICK
Brand: SICK
SKU: 6086980
Alternatively Known As: Compact displacement sensor, micrometer displacement sensor, laser distance sensor, OD200 sensor
Technical Specifications
- Minimum measuring range: 35 mm
- Maximum measuring range: 65 mm
- Repeatability: 2 µm to 20 µm
- Linearity: ± 10 µm to 100 µm (specifically ± 30 µm)
- Measuring frequency: up to 3 kHz
- Type of analog output: Current output, voltage output
- Laser class: 1
- Interface: IO-Link and analogue/digital outputs
- Configuration: OLED display, IO-Link, SOPAS ET software
- Dimensions (H x L x W): 20mm x 80mm x 40mm
- Weight: 0.2 kg
Key Features
- Precise micrometer-range distance measurements
- Repeatability from 2 µm to 20 µm
- Linearity ± 10 µm to 100 µm
- Measuring frequency up to 3 kHz
- Intuitive configuration via OLED display, IO-Link, and SOPAS ET
- Measuring ranges from 25 mm to 160 mm
- Laser class 1 safety
- Analogue and digital output with IO-Link interface
- Robust miniature housing suitable for tough environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and integration with existing systems.
Applications
- Industrial automation for precise distance and displacement measurement
- Quality control in manufacturing processes
- Surface inspection on structured composites and shiny metals
- Tight space installations requiring compact sensor solutions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Compact design reduces material usage and waste
- Energy-efficient operation lowers power consumption
- Durable housing extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty of 2 years covering defects in materials and workmanship.
Available Now
The SICK OD200 displacement sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
