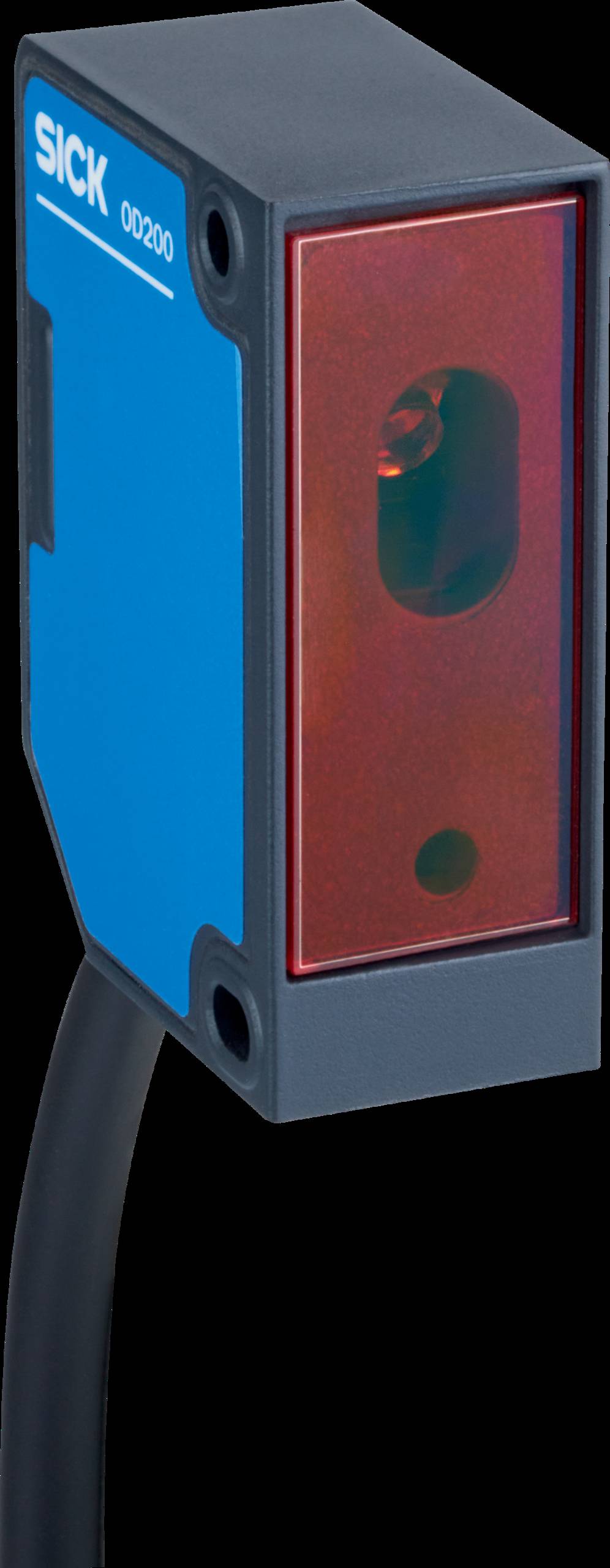

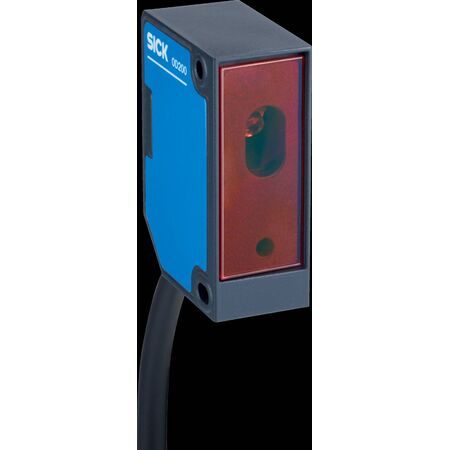

OD200 Laser Displacement Sensor | 25 mm to 160 mm Range | 2 µm Repeatability | IO-Link Interface | by SICK
The OD200 Laser Displacement Sensor delivers precise micrometer-range distance measurements, making it ideal for industrial automation and quality control applications. With a measuring range of 25 mm to 160 mm and a repeatability of 2 µm to 20 µm, this robust miniature sensor is perfect for tight space installations and surface inspection on shiny metals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: OD200 Laser Displacement Sensor | 25 mm to 160 mm Range | 2 µm Repeatability | IO-Link Interface | by SICK
Brand: SICK
SKU: 6086982
Alternatively Known As: OD200 Laser Displacement Sensor, SICK OD200 Distance Sensor, Compact Laser Sensor OD200
Technical Specifications
- Measuring range: 25 mm to 160 mm
- Minimum measuring range: 60 mm
- Maximum measuring range: 160 mm
- Repeatability: 2 µm to 20 µm
- Linearity: ± 10 µm to 100 µm
- Measuring frequency: up to 3 kHz
- Output types: Current output, voltage output, IO-Link interface
- Laser class: 1
- Housing: Robust miniature design
- Dimensions (H x L x W): 20mm x 80mm x 40mm
- Weight: 0.3 kg
Key Features
- Precise micrometer-range distance measurements
- Repeatability from 2 µm to 20 µm
- Linearity ± 10 µm to 100 µm
- Measuring frequency up to 3 kHz
- Intuitive configuration via OLED display, IO-Link and SOPAS ET
- Measuring ranges from 25 mm to 160 mm
- Laser class 1 safety
- Analogue and digital output with IO-Link interface
- Robust miniature housing suitable for tough environments
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and integration with existing systems.
Applications
- Industrial automation for precise distance and displacement measurement
- Quality control in manufacturing processes
- Surface inspection on structured composites and shiny metals
- Tight space installations requiring compact sensor solutions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Compact design reduces material usage and waste
- Energy-efficient laser technology minimizes power consumption
- Durable housing extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty of 2 years against defects.
Available Now
The SICK OD200 displacement sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
