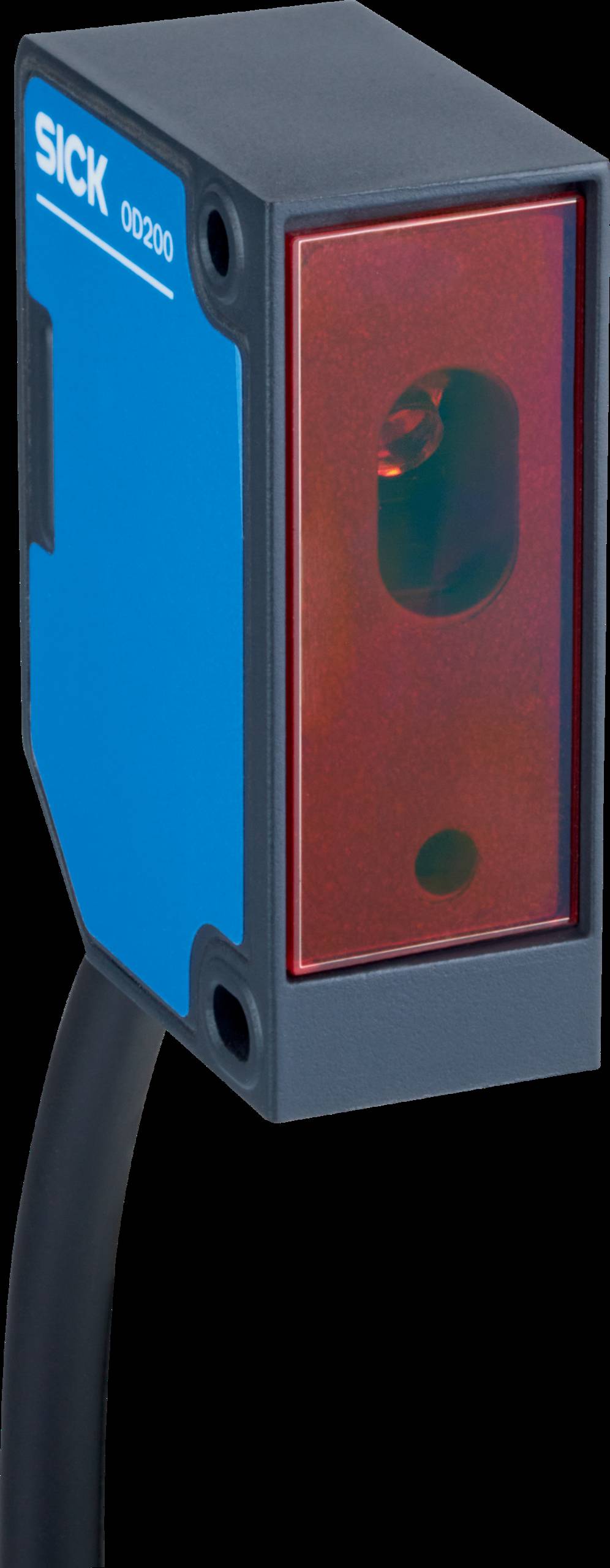

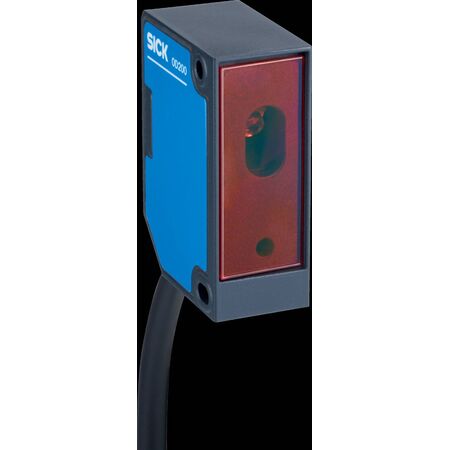

OD200 Laser Displacement Sensor | 25mm to 160mm Range | 2µm Repeatability | Robust Miniature Design | by SICK
The OD200 Laser Displacement Sensor offers precise micrometer-range distance measurements, with a measuring range from 25mm to 160mm and repeatability from 2µm to 20µm. Ideal for industrial automation and quality control, this sensor features a robust miniature design, making it perfect for tight space installations and challenging surfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: OD200 Laser Displacement Sensor | 25mm to 160mm Range | 2µm Repeatability | Robust Miniature Design | by SICK
Brand: SICK
SKU: 6086978
Alternatively Known As: OD200 Laser Displacement Sensor, SICK Compact Distance Sensor, Micrometer Range Laser Sensor
Technical Specifications
- Measuring range: 25 mm to 35 mm
- Repeatability: 2 µm to 20 µm
- Linearity: ± 10 µm
- Measuring frequency: up to 3 kHz
- Outputs: Current output, voltage output, IO-Link interface
- Laser class: 1
- Housing: Robust miniature design
- Dimensions (H x L x W): 20mm x 80mm x 40mm
- Weight: 0.3 kg
Key Features
- Precise micrometer-range distance measurements
- Repeatability from 2 µm to 20 µm
- Linearity ± 10 µm to 100 µm
- Measuring frequency up to 3 kHz
- Intuitive configuration via OLED display, IO-Link and SOPAS ET
- Measuring ranges from 25 mm to 160 mm
- Laser class 1 safety
- Analogue and digital output with IO-Link interface
- Robust miniature housing suitable for tough environments
- Plug-and-play setup with smart factory settings
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct sensor setup and integration with existing systems.
Applications
- Industrial automation for precise distance and displacement measurement
- Quality control in manufacturing processes
- Measurement on challenging surfaces such as structured composites and shiny metals
- Tight space installations requiring compact sensor solutions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty of 2 years covering defects in materials and workmanship.
Available Now
The SICK OD200 displacement sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
