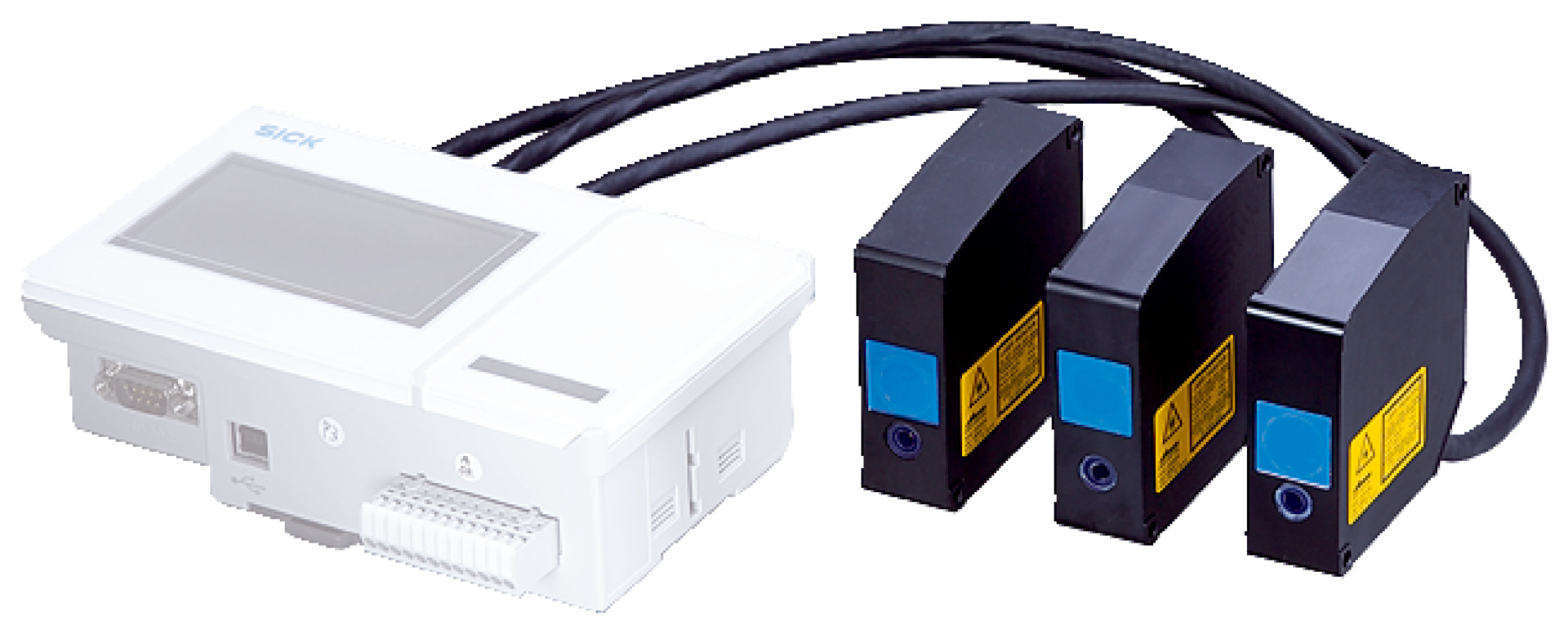

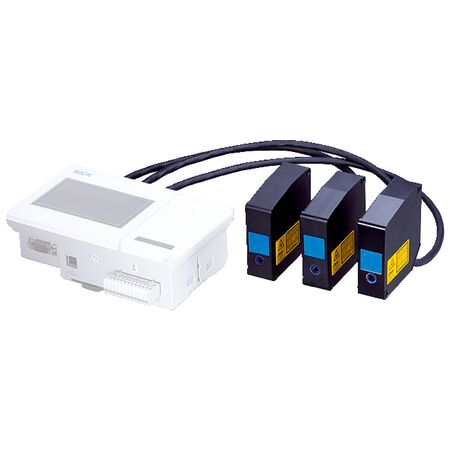

OD5-150T40 Laser Sensor | 110 mm to 190 mm Range | 2 µm Repeatability | IP67 Rated | by SICK
The OD5-150T40 Laser Sensor is designed for precision measurement in industrial automation, featuring a measuring range of 110 mm to 190 mm and a high repeatability of 2 µm. With a fast response time of ≥ 0.1 ms and an IP67 rated enclosure, this sensor is perfect for quality control and surface inspection applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 110 mm to 190 mm
- Repeatability: 2 µm
- Linearity: ± 40 µm
- Response time: ≥ 0.1 ms
- Light source: Red visible laser light
- Laser class: 2 (IEC 60825-1:2014)
- Typical light spot size: Ø 180 µm at 150 mm
- Supply voltage: DC 12 V to 24 V
- Warm-up time: ≤ 5 minutes
- Enclosure rating: IP67
- Protection class: III
- Connection type: 0.5 m cable with connector
- Outputs: 3 digital outputs (PNP/NPN), 3 analog outputs (4-20 mA, 0-10 V)
- Serial interface: RS-422 (RS-232 optional via external unit)
- Dimensions (H x L x W): 78mm x 75mm x 29mm
- Weight: 0.25 kg
Key Features
- Measuring range from 110 mm to 190 mm
- High repeatability of 2 µm
- Linearity of ± 40 µm
- Fast response time of ≥ 0.1 ms
- Red visible laser light source, laser class 2
- IP67 rated enclosure for protection
- Metal (Aluminum) housing with glass window
- Multiple output types: digital (PNP/NPN), analog current and voltage
- Compatible with AOD5-P/N1 and stand-alone via RS-422
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure compliance and optimal performance.
Applications
- Industrial automation and measurement
- Quality control in manufacturing
- Surface inspection and object detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable metal housing extends product life reducing waste
- Low power consumption with efficient laser technology
- High precision reduces material waste in manufacturing processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK OD5-150T40 Precision Sensor Head is available for immediate purchase, ideal for industrial automation and precision measurement applications.
