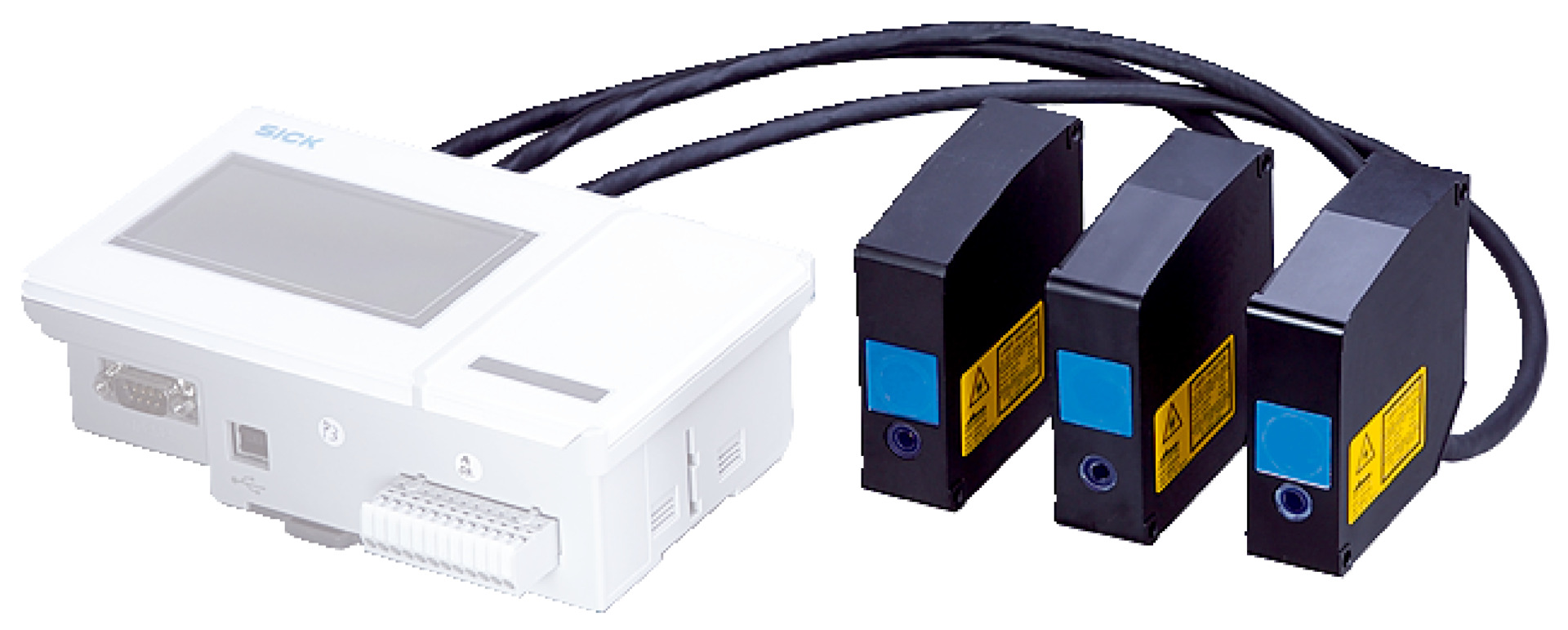

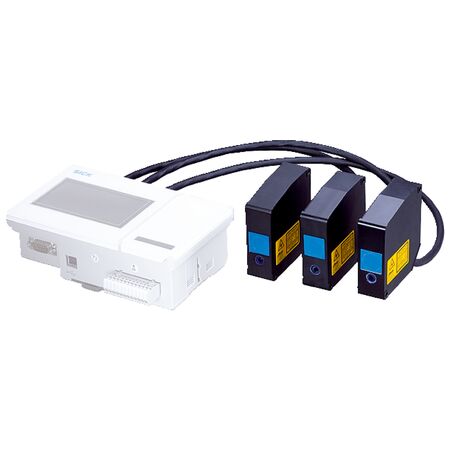

OD5-150W40 Precision Laser Sensor | 110 mm to 190 mm Range | 2 µm Repeatability | IP67 Rated | by SICK
The OD5-150W40 Precision Laser Sensor is designed for industrial automation and measurement, featuring a measuring range of 110 mm to 190 mm and an impressive repeatability of 2 µm. With a fast response time of ≥ 0.1 ms and an IP67 rated enclosure, this sensor is perfect for quality control and surface inspection in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 110 mm to 190 mm
- Repeatability: 2 µm
- Linearity: ±40 µm
- Response time: ≥ 0.1 ms
- Light source: Visible red laser
- Laser class: 2 (IEC 60825-1:2014)
- Typical light spot size at 150 mm: 0.33 mm x 1.6 mm
- Supply voltage: DC 12 V to 24 V
- Warm-up time: ≤ 5 minutes
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 78mm x 75mm x 29mm
- Weight: 0.25 kg
Key Features
- Measuring range: 110 mm to 190 mm
- High repeatability of 2 µm
- Linearity accuracy of ±40 µm
- Fast response time ≥ 0.1 ms
- Visible red laser light source
- Laser class 2 compliant with IEC 60825-1:2014
- IP67 rated enclosure for dust and water protection
- Robust metal (aluminum) housing with glass window
- Multiple output types: digital (PNP/NPN), analog (4-20 mA, 0-10 V)
- Operating temperature range from -10 °C to +50 °C
- Shock resistance up to 50 G and vibration resistance
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation and measurement
- Quality control in manufacturing
- Surface inspection and object detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing extends product lifespan reducing waste
- Energy-efficient laser technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK OD5-150W40 Precision Sensor Head is available for immediate purchase, ideal for industrial measurement and automation applications.
