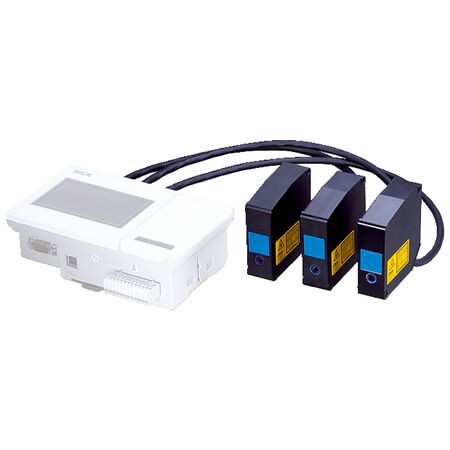

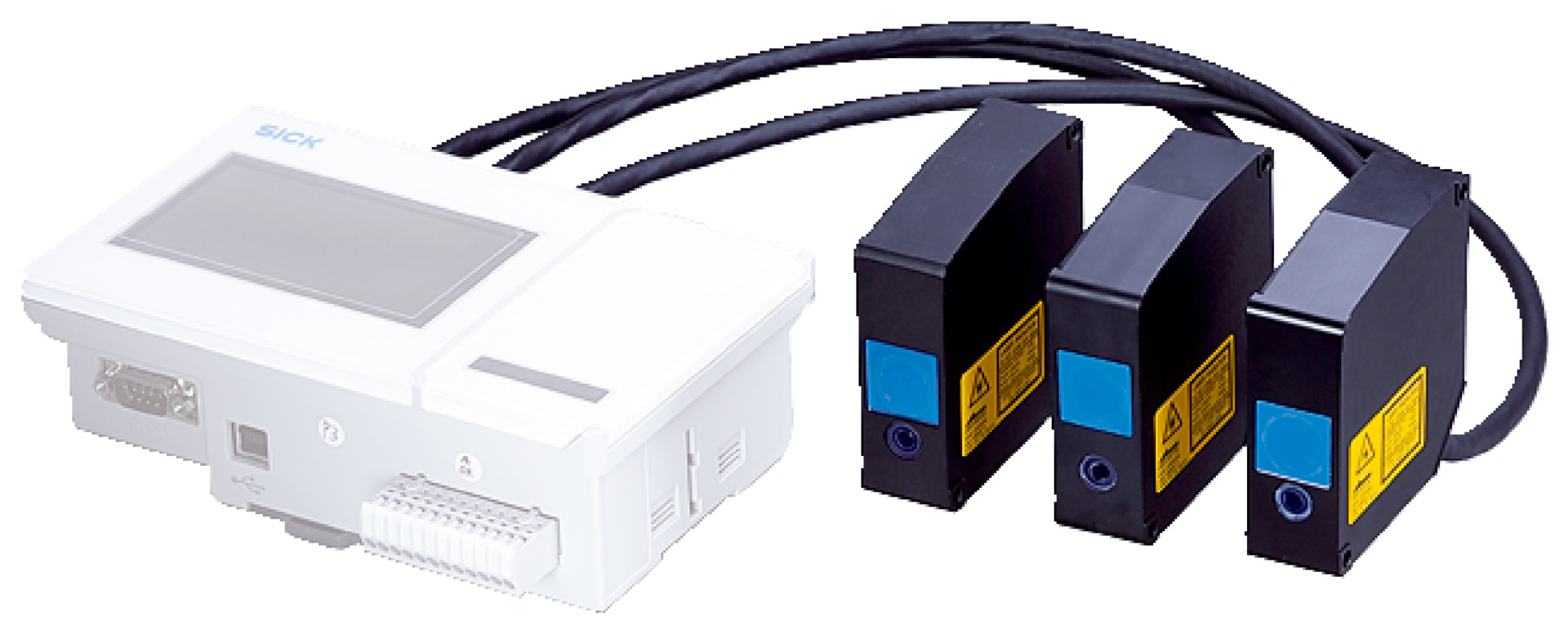

OD5-25T01 Precision Thickness Sensor | 24 mm to 26 mm Range | 0.02 µm Repeatability | IP67 Rated | by SICK
The OD5-25T01 Precision Thickness Sensor is designed for accurate thickness measurement of transparent materials, featuring a measuring range of 24 mm to 26 mm and a remarkable repeatability of 0.02 µm. With its robust IP67 rated enclosure and laser class 1 technology, this sensor is perfect for industrial precision measurement tasks, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 24 mm to 26 mm
- Repeatability: 0.02 µm
- Linearity: ±1.6 µm
- Response time: ≥ 0.1 ms
- Light source: Laser, visible red light
- Laser class: 1 (IEC 60825-1:2014)
- Typical light spot size at 25 mm: 25 µm x 35 µm
- Thickness measurement range for transparent materials: 0.2 mm to 2 mm
- Outputs: 3 digital outputs (PNP/NPN), 3 analog outputs (4-20 mA, 0-10 V)
- Supply voltage: DC 12 V to 24 V
- Enclosure rating: IP67
- Housing material: Aluminum
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 78mm x 75mm x 29mm
- Weight: 0.25 kg
Key Features
- Measuring range: 24 mm to 26 mm
- Repeatability: 0.02 µm
- Linearity: ±1.6 µm
- Response time: ≥ 0.1 ms
- Laser class 1 with visible red light source
- Thickness measurement capability for transparent materials from 0.2 mm to 2 mm
- Automatic and manual sensitivity adjustment
- Mutual interference and glass thickness measurement functions
- IP67 rated enclosure for robust protection
- Metal (Aluminum) housing with glass window
- Multiple output types: digital (PNP/NPN), analog (4-20 mA, 0-10 V)
- Supply voltage: DC 12 V to 24 V
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Thickness measurement of transparent materials
- Industrial precision measurement tasks
- Use with AOD5-P/N1 or standalone via RS-422 interface
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces material waste and damage
- Energy-efficient laser technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK OD5-25T01 Precision Sensor Head is available for immediate purchase, ideal for industrial precision measurement and quality control applications.
